Ref: PM2128

Name: PM2128
Brand: Peakmeter
SKU: PM2128
Price: 377230 COP
Availability: InStock

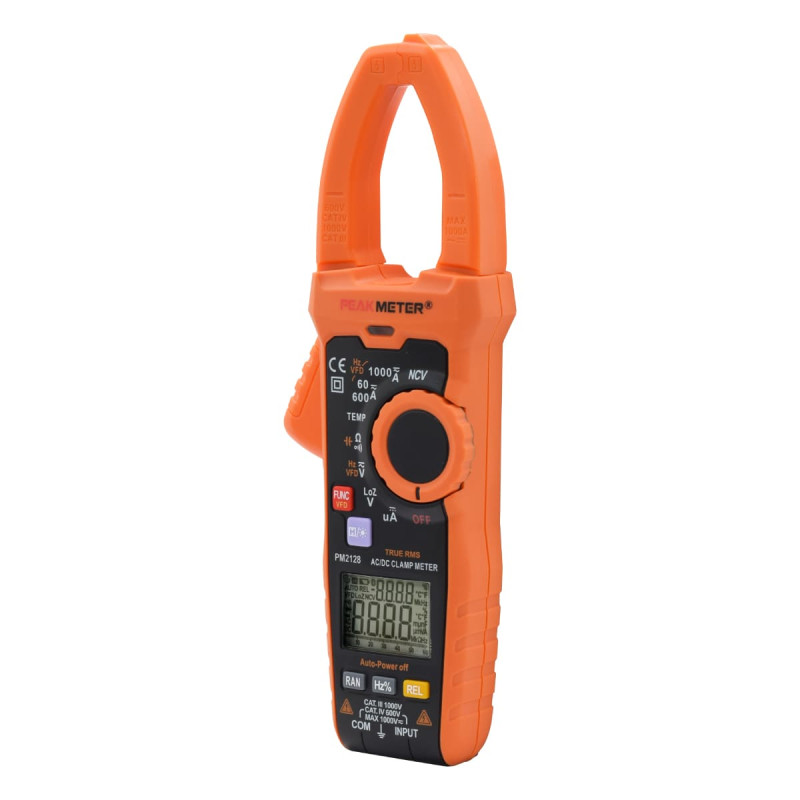

PM2128

In stock

Specifications

Downloads

Display	3 5/6 digit LCD (6000 counts)
Dimensions	H: 247 x W: 85 x D: 40mm
Battery type	3x 1.5V AAA battery
Included accessories	Instruction manual, cloth bag, batteries, K-type thermocouple and test leads.
Jaw diameter	35mm
Features	Analogue bar graph, Auto and manual range, data hold, work light, backlight, relative measurement, continuity test, VFD measurement, LowZ measurement

Peakmeter - Manuales y Fichas tecnicas

Peakmeter - Pinza PM2128 - User manual

(Size: 3.3 MB)

Peakmeter - Pinzas PM2128 - Catálogo

(Size: 1.1 MB)

Referencia	Resumen producto	Precio	Cantidad
PM2128	PM2128 DC Voltage range: 6V/60V/600V/1000V AC Voltage range: 6V/60V/600V/1000V DC Current range: 60A/600A/1000A AC Current range: 6A/60A/100A Resistance range: 600Ohm/6kOhm/60kOhm/600kOhm/6MOhm/60MOhm Capacitance range: 60nF/600nF/6uF/60uF/600uF/6mF/60mF Frequency range: 10Hz - 10kHz Duty cycle: 1 - 99% Temperature range: -20 to 1000°C/-4 to 1832°F True RMS: Yes CAT III maximum voltage: 1000V CAT IV maximum voltage: 600V	COP377,230
