Ref: MT4 series scalable digital voltmeters

Name: MT4 series scalable digital voltmeters
Brand: Autonics
SKU: Voltímetros digitales escalizables serie MT4
Price: 315588 COP
Availability: OutOfStock

MT4 series scalable digital voltmeters

Certifications:

In stock

Specifications

Downloads

Especificaciones

Power supply	100 - 240VAC or 12 - 24VDC (Depend of model)
Measuring type	Voltages AC or DC (Depend of model)
DC voltage range	0 - 50mV \| 0 - 250mV \| 0 - 1V \| 0 - 5V \| 0 - 10V \| 0 - 50V \| 0 - 100V \| 0 - 500V
AC voltage range	0 - 1V \| 0 - 2V \| 0 - 10V \| 0 - 20V \| 0 - 50V \| 0 - 110V \| 0 - 250V \| 0 - 500V
Output type	SPST relay \| NPN OC \| retransmission 4 - 20mA
Réle contact capacity	3A - 250VAC
Display type	LCD 4 digits
Communication type	RS-485 Modbus RTU
Dimensions	Model MT4Y (H 72 x W 36 x D 77mm) Model MT4W (H 96 x W 48 x D 100mm)

Downloads

Autonics - Manuales y Fichas Técnicas

Autonics - DAQmaster - Manual 1

(Size: 8.5 MB)

Autonics - DAQMaster - Manual 2

(Size: 405 KB)

Autonics Software

Autonics - DAQMaster 3.4 32bits -Software

(Size: 169.9 MB)

DAQMaster es un programa integral para administración de dispositivos que se usa para configurar parámetros, monitorear datos en tiempo real y almacenar datos con dispositivos de comunicación de Autonics. El control simple de la interfaz permite una gestión fácil y conveniente de parámetros y monitoreo de datos de múltiples dispositivos. DAQMaster está disponible en versiones estándar (gratis) y Pro (de pago) para PC. DAQMaster móvil está disponible para dispositivos móviles.

Autonics - DAQMaster 3.5.9 32bits - Software

Software integral de gestión de dispositivos

Autonics - DAQMaster 3.5.9 64bits - Software

Software integral de gestión de dispositivos

sku	Summary	Unit Price	Qty

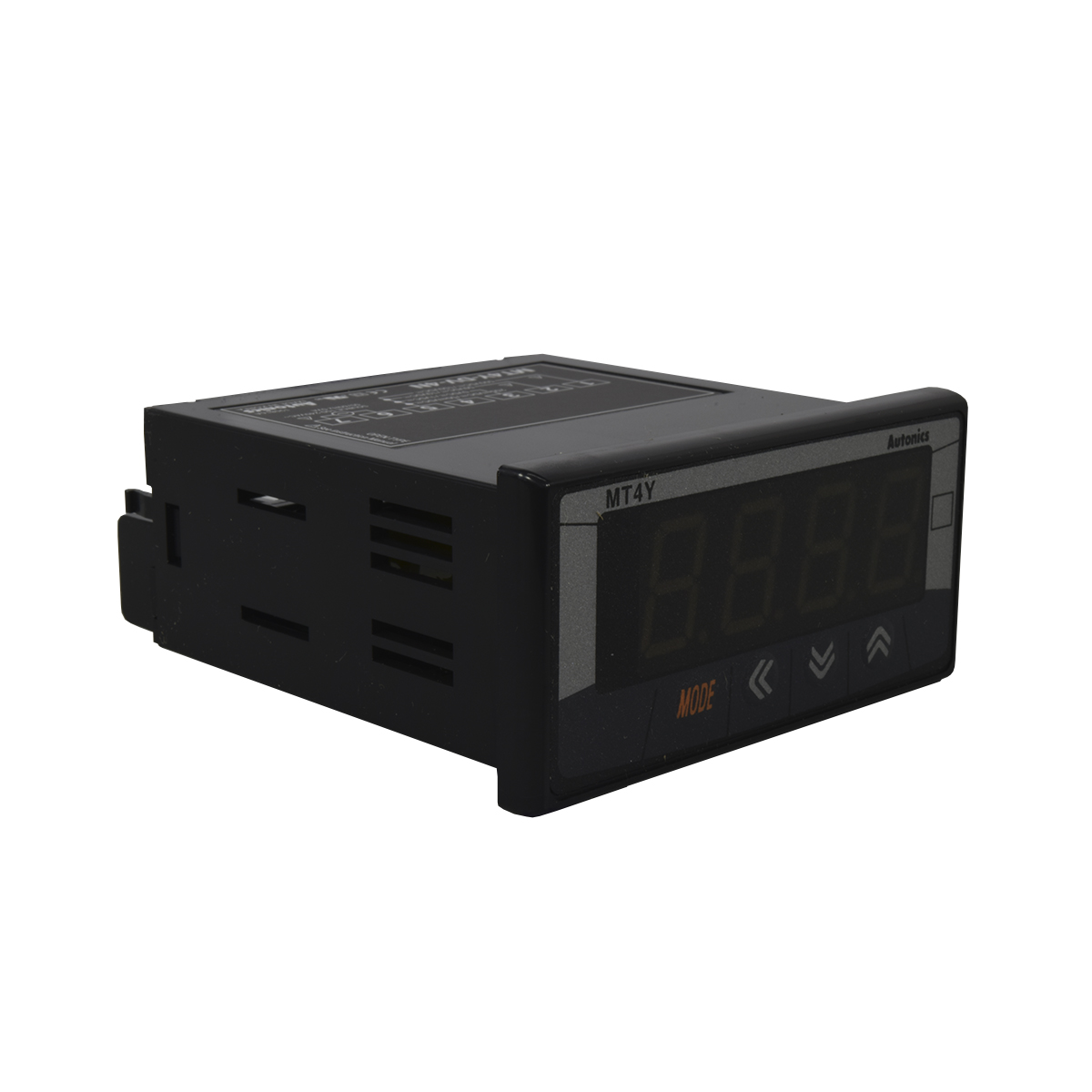

MT4Y-DV-4N	MT4Y-DV-4N Power supply: 100 - 240VAC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Dimensions: H 72 x W 36mm	COP328,440	Sin Stock

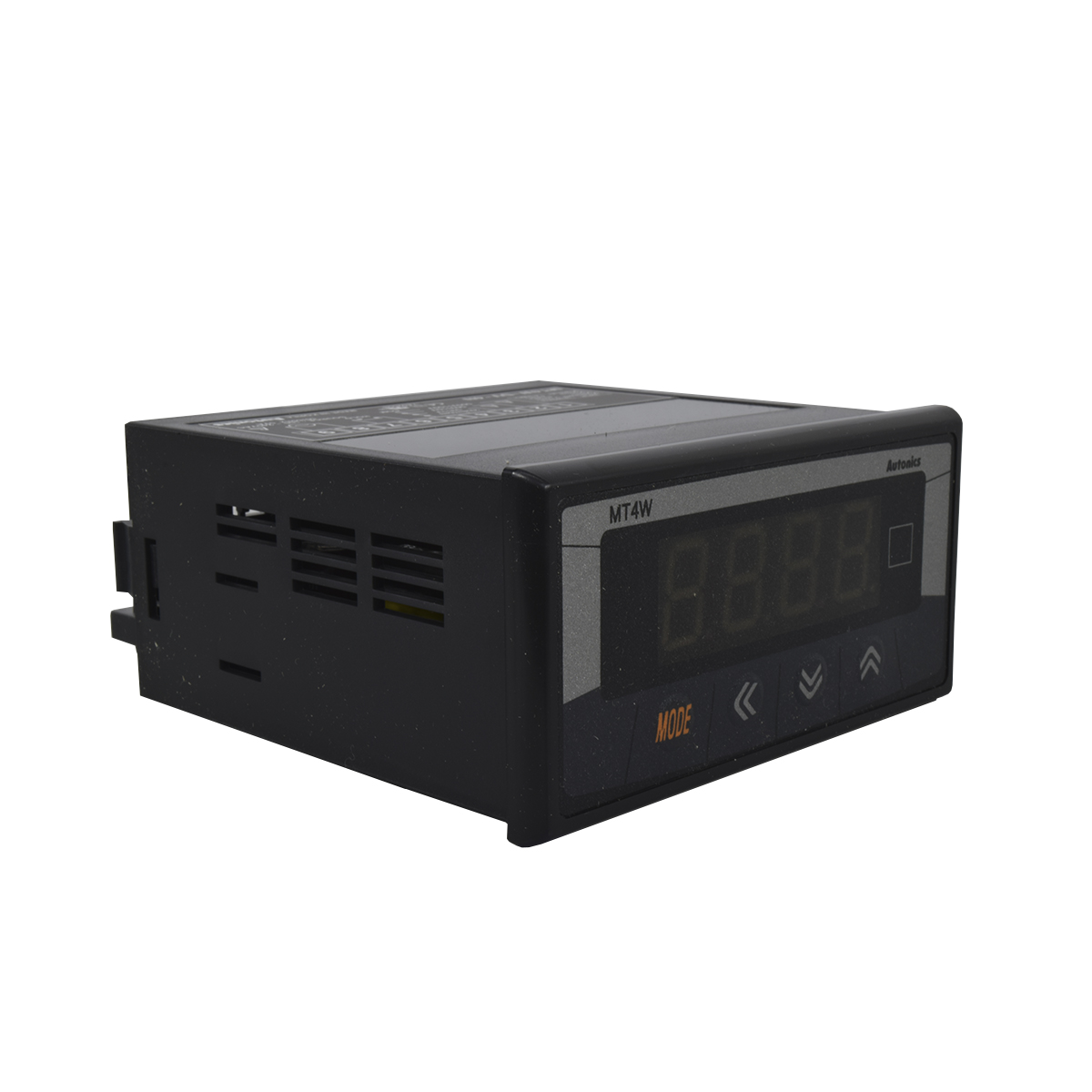

MT4W-DV-4N	MT4W-DV-4N Power supply: 100 - 240VAC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Dimensions: H 96 x W 48mm	COP315,588	Sin Stock

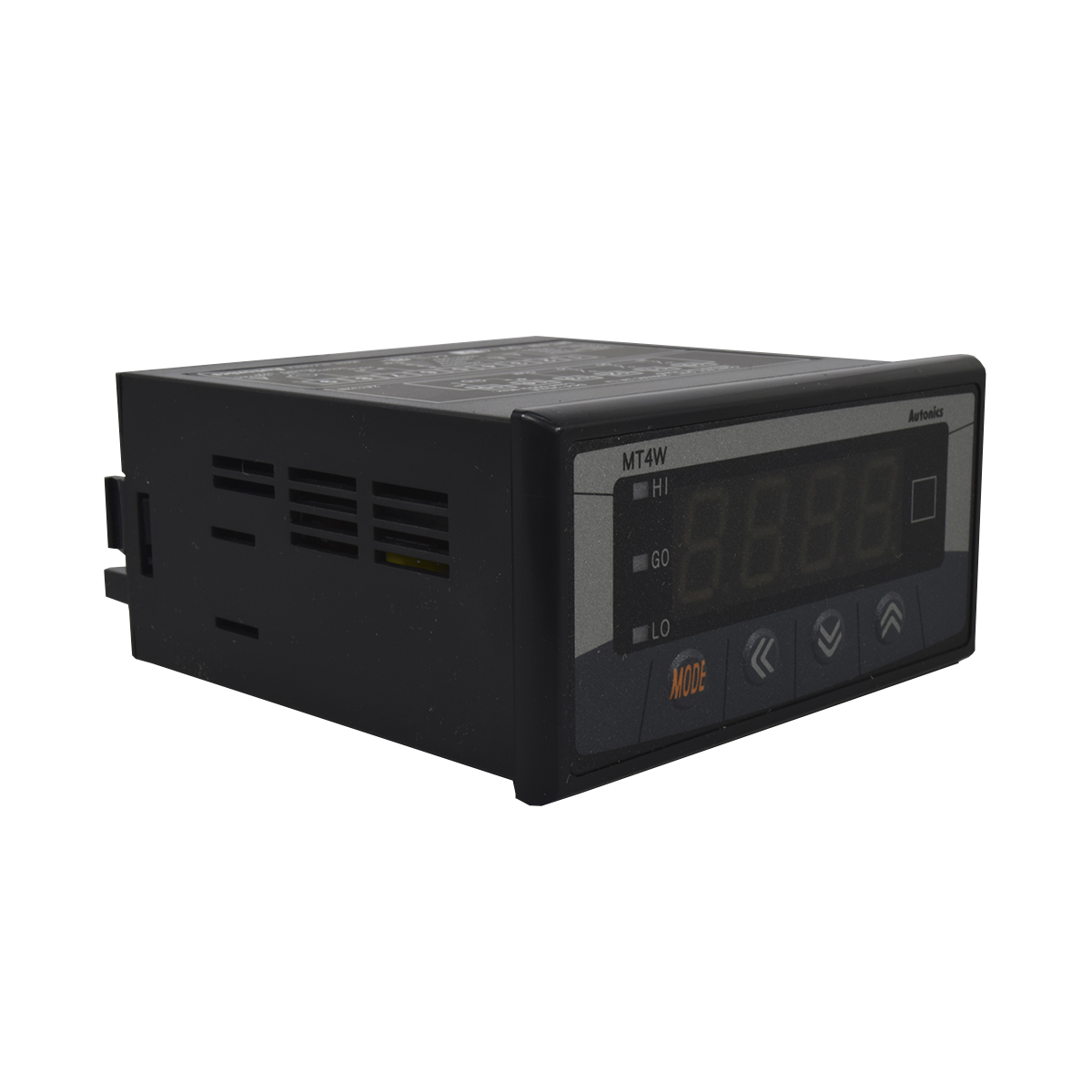

MT4W-DV-40	MT4W-DV-40 Power supply: 100 - 240VAC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Digital outputs: 3 SPST relay Analog outputs: 1 retransmisión (4 - 20mA) Dimensions: H 96 x W 48mm	COP685,440	Sin Stock

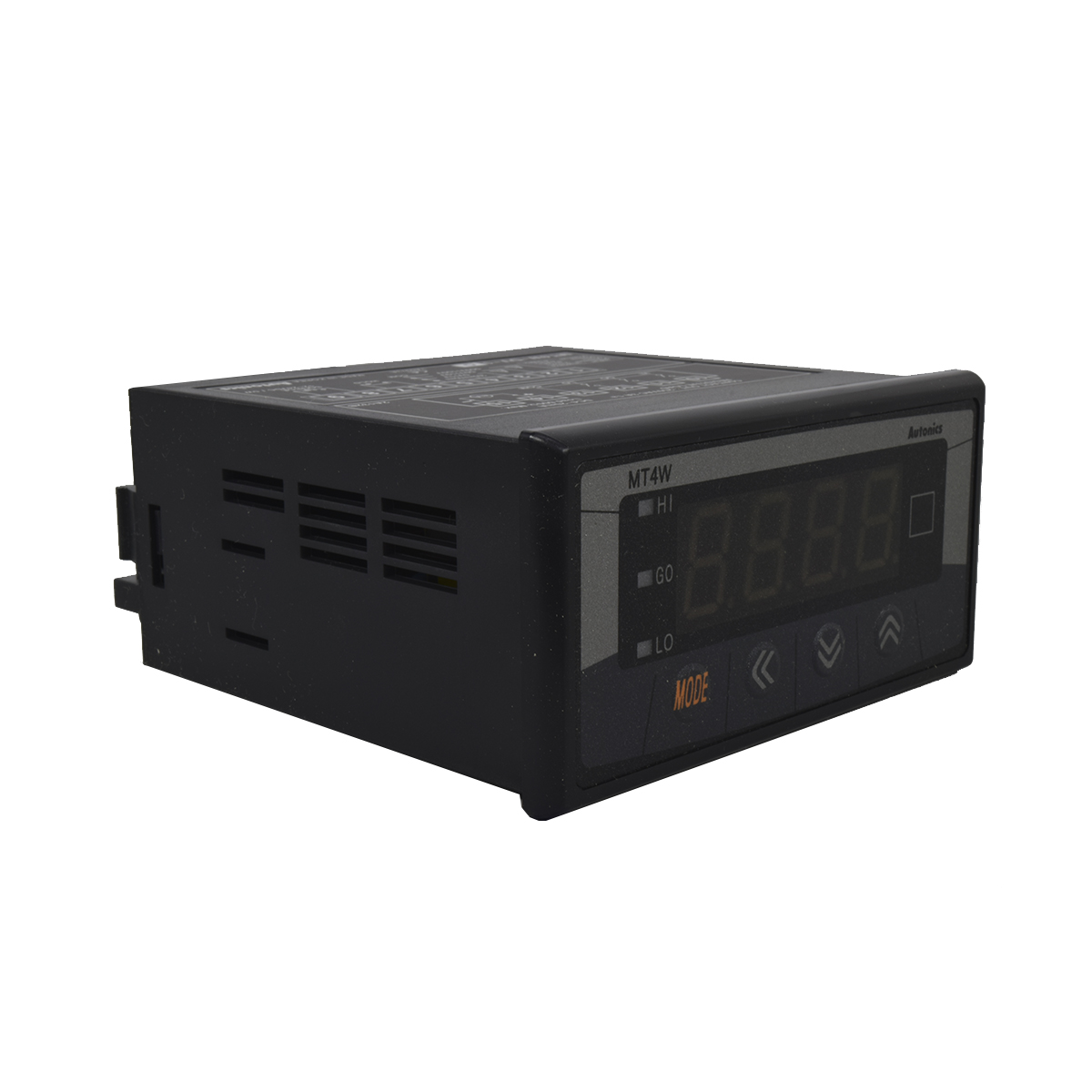

MT4W-DV-10	MT4W-DV-10 Power supply: 12 - 24VDC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Digital outputs: 3 SPST relay Analog outputs: 1 retransmisión (4 - 20mA) Dimensions: H 96 x W 48mm	COP664,020	Sin Stock

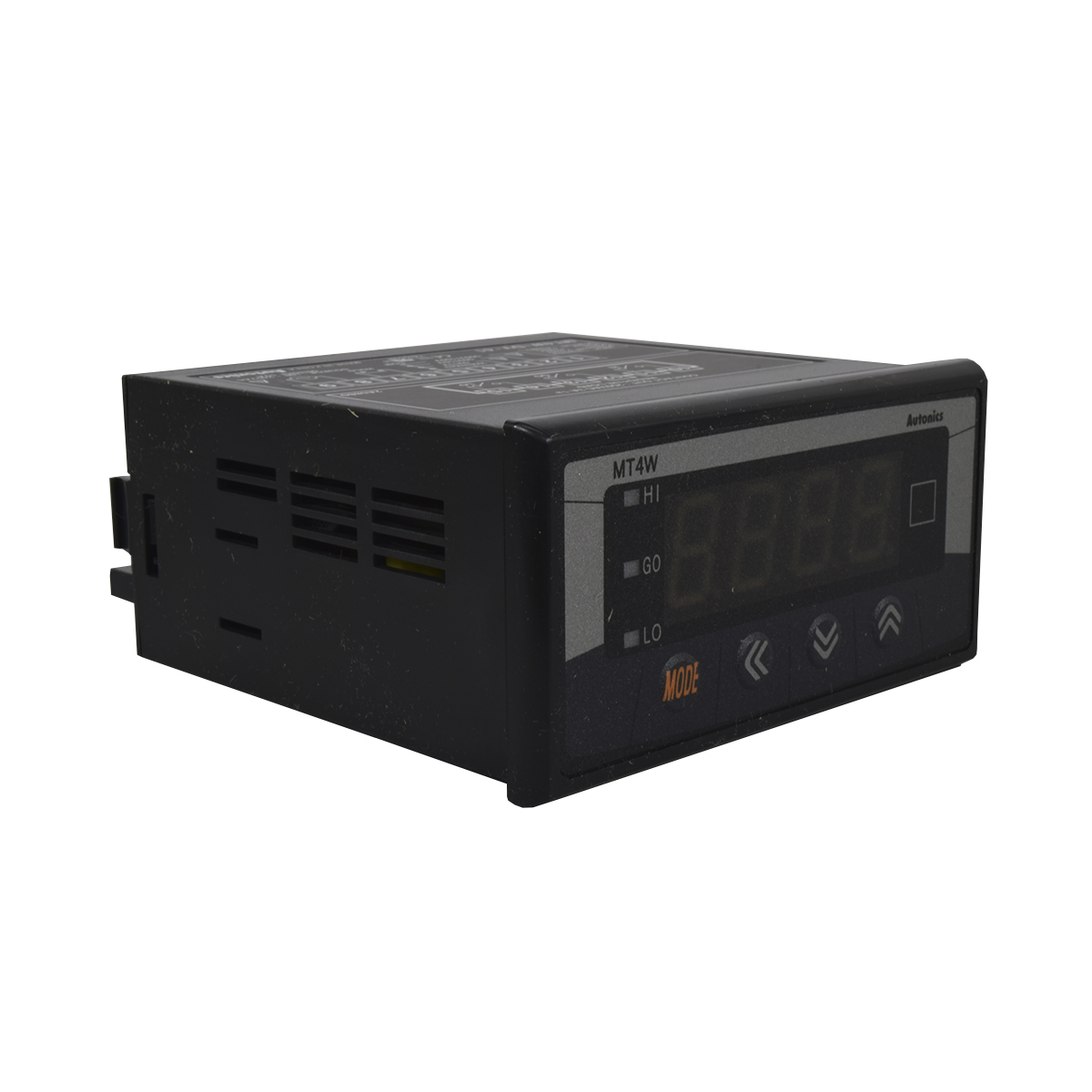

MT4W-DV-41	MT4W-DV-41 Power supply: 100 - 240VAC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Digital outputs: 3 SPST relay Dimensions: H 96 x W 48mm	COP542,640	Sin Stock

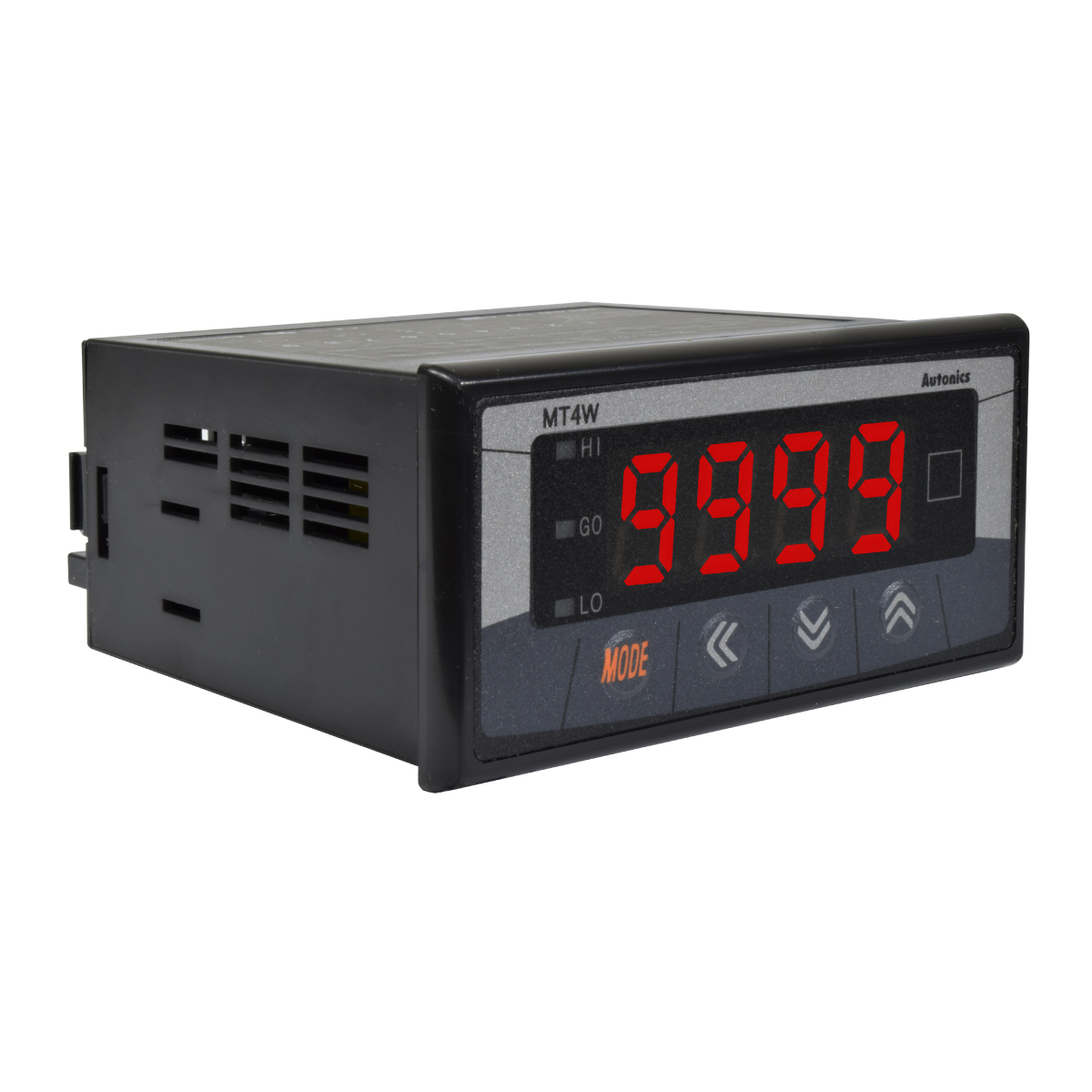

MT4W-DV-44	MT4W-DV-44 Power supply: 100 - 240VAC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Digital outputs: 3 NPN OC Analog outputs: 1 retransmisión (4 - 20mA) Dimensions: H 96 x W 48mm	COP685,440	Sin Stock

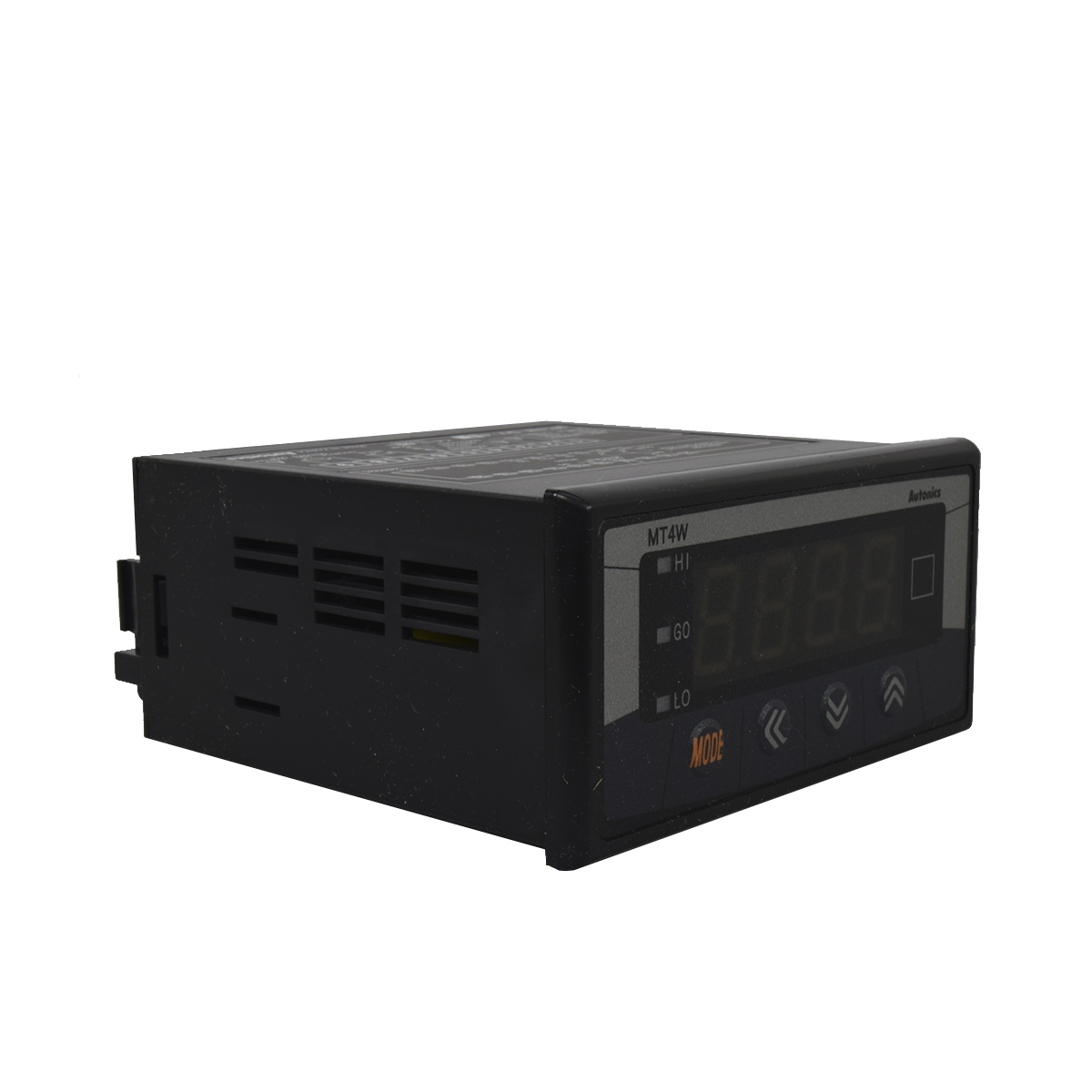

MT4W-DV-48	MT4W-DV-48 Power supply: 100 - 240VAC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Digital outputs: 3 NPN OC Communication type: RS-485 Modbus RTU Dimensions: H 96 x W 48mm	COP685,440	Sin Stock

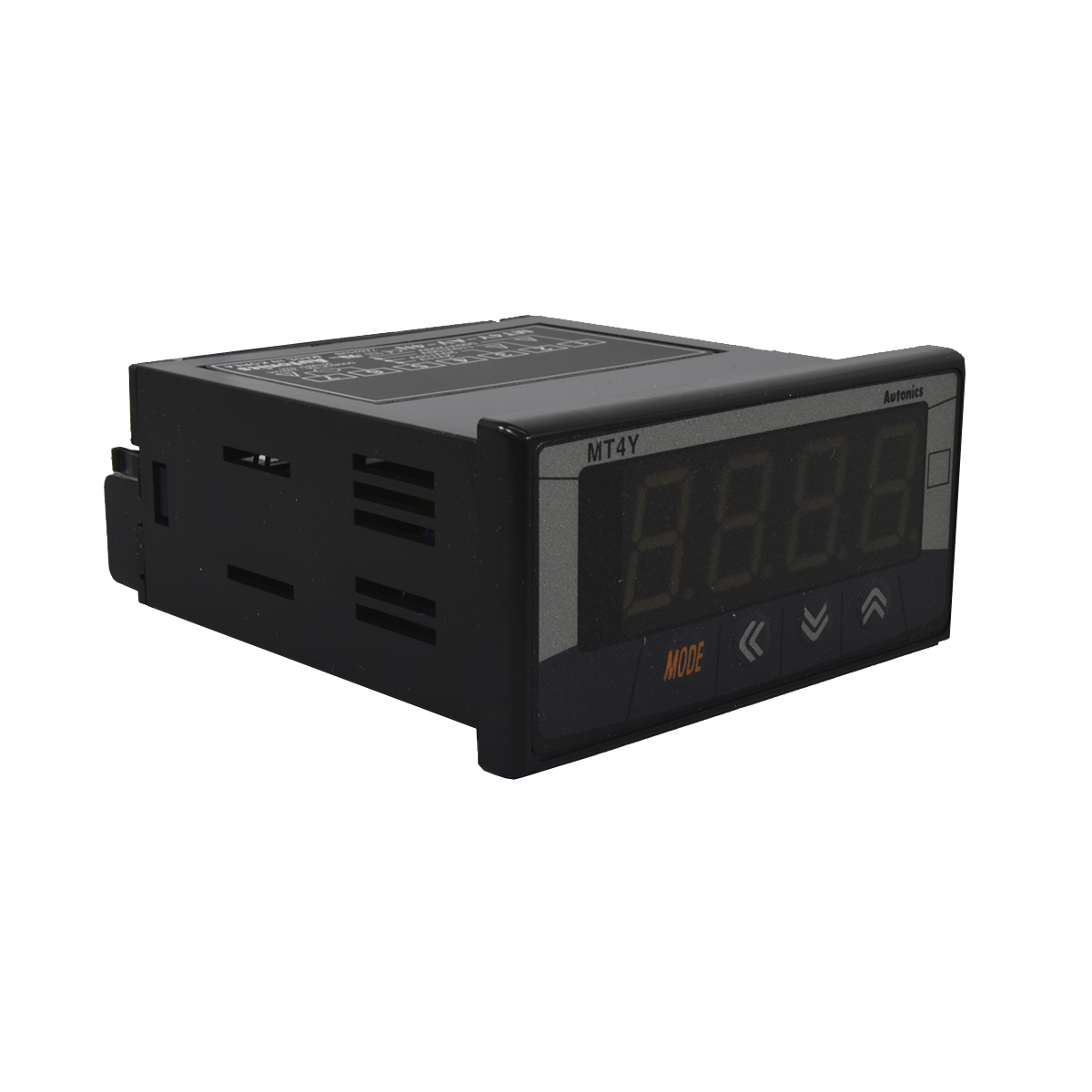

MT4Y-AV-4N	MT4Y-AV-4N Power supply: 100 - 240VAC Type: AC voltage AC Voltage range: 0 - 500VAC (adjustable scale) Dimensions: H 72 x W 36mm	COP365,568	Sin Stock

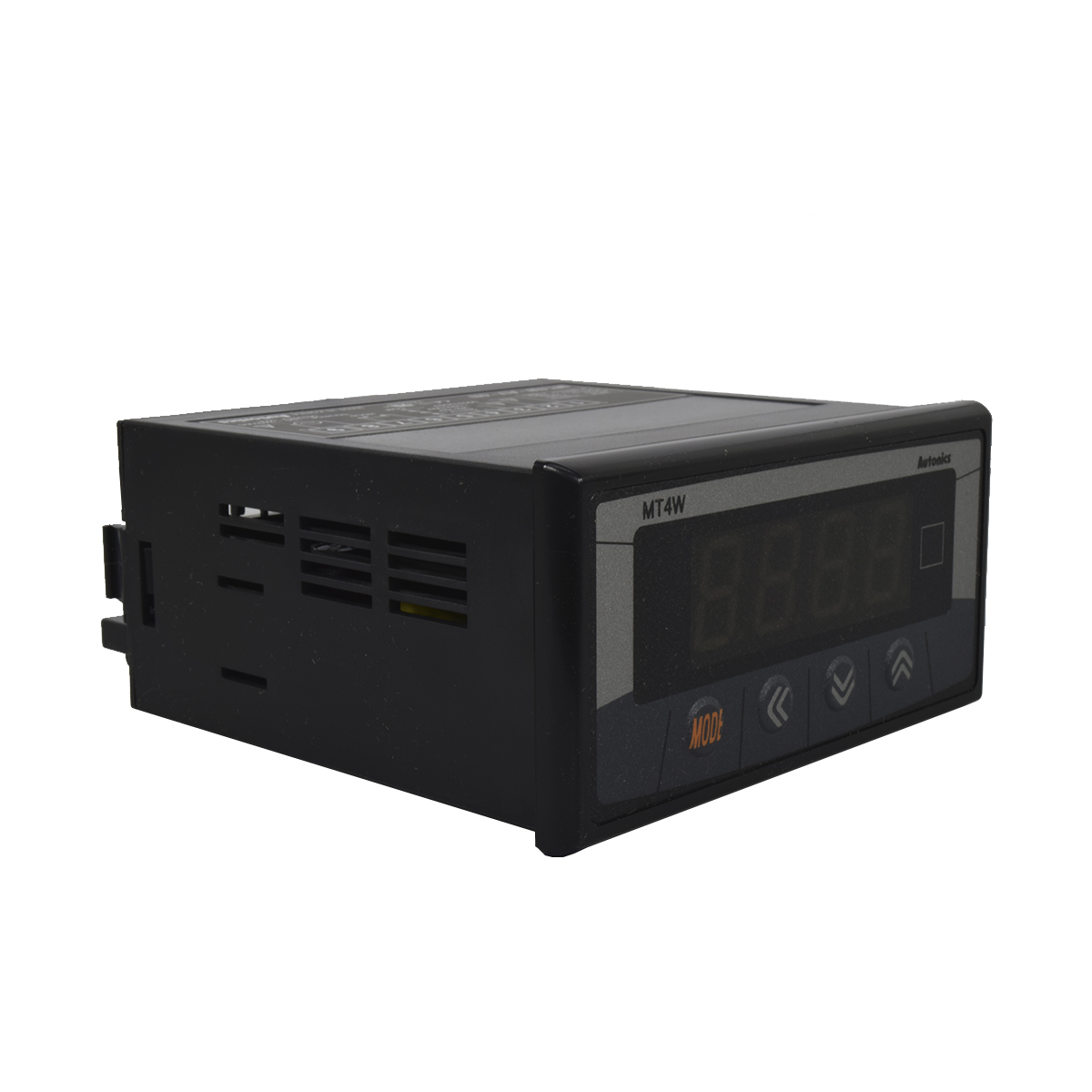

MT4W-AV-4N	MT4W-AV-4N Power supply: 100 - 240VAC Type: AC voltage AC Voltage range: 0 - 500VAC (adjustable scale) Dimensions: H 96 x W 48mm	COP357,000	Sin Stock

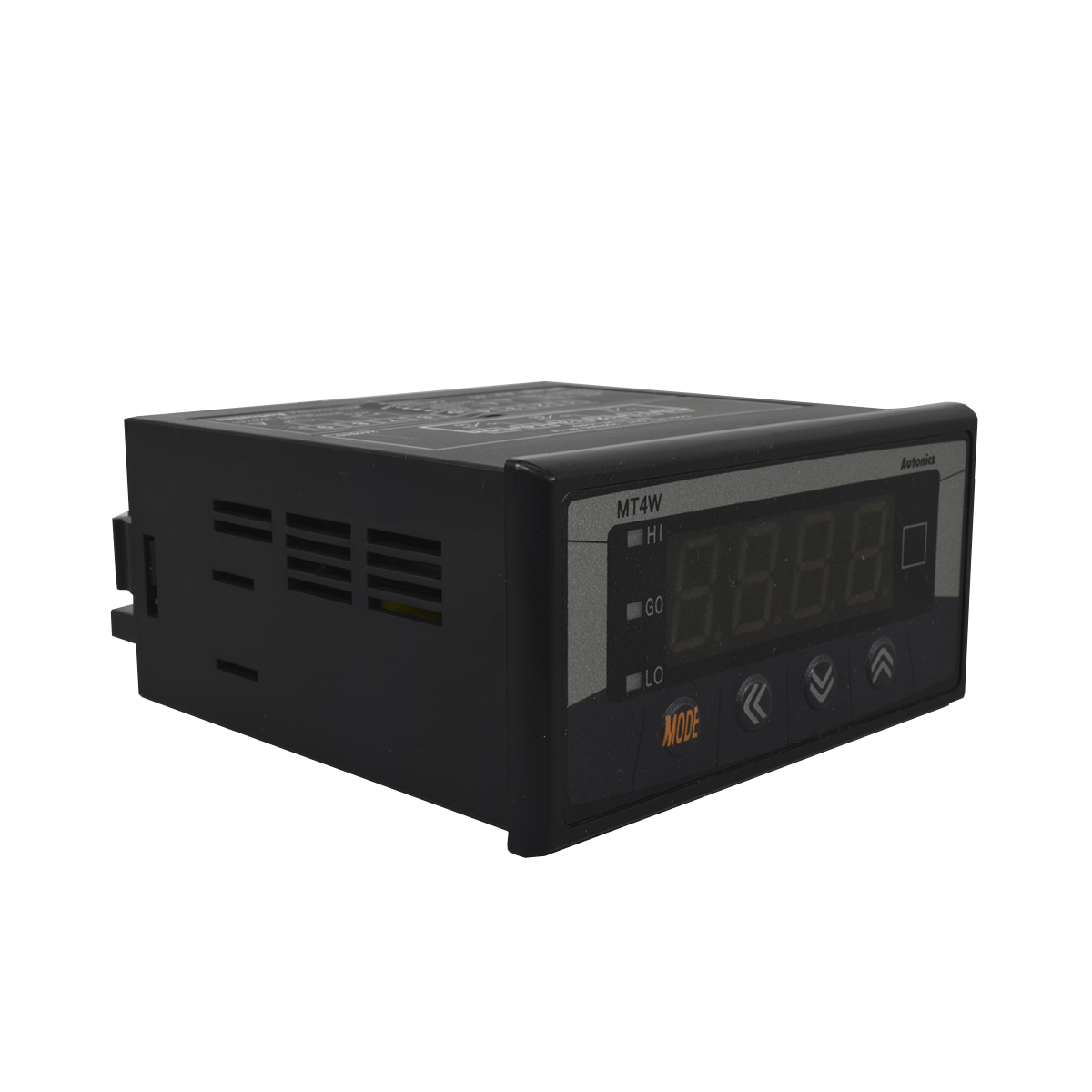

MT4W-AV-41	MT4W-AV-41 Power supply: 100 - 240VAC Type: AC voltage AC Voltage range: 0 - 500VAC (adjustable scale) Digital outputs: 3 SPST relay Dimensions: H 96 x W 48mm	COP599,760	Sin Stock

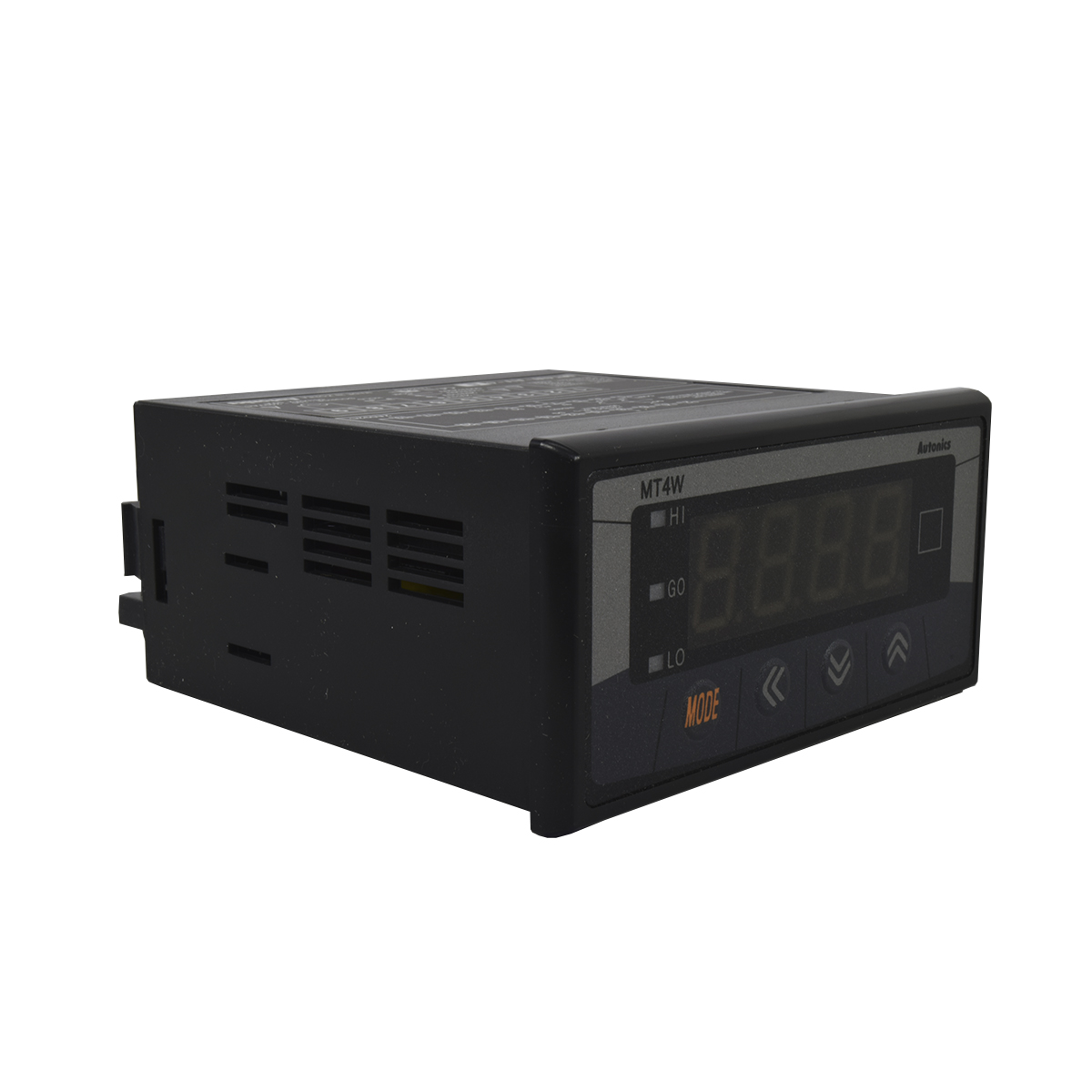

MT4W-AV-48	MT4W-AV-48 Power supply: 100 - 240VAC Type: AC voltage AC Voltage range: 0 - 500VAC (adjustable scale) Digital outputs: 3 NPN OC Communication type: RS-485 Modbus RTU Dimensions: H 96 x W 48mm	COP699,720	Sin Stock
MT4W-DV-1N	MT4W-DV-1N Power supply: 12 - 24VDC Type: DC voltage DC Voltage range: 0 - 500VDC (adjustable scale) Dimensions: H 96 x W 48mm	COP321,300	Sin Stock
