Ref: ODP-2-54050-3HF42-TN-S

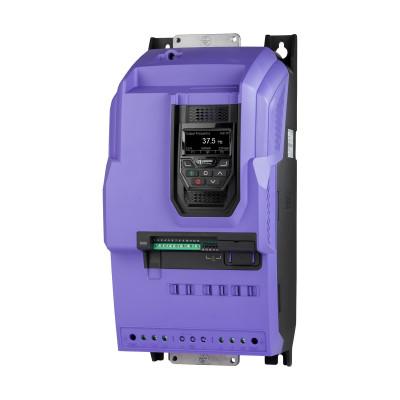

Name: Variadores de frecuencia serie P2 SOLAR para bombeo
Brand: Invertek
SKU: ODP-2-54050-3HF42-TN-S
Availability: OutOfStock

ODP-2-54050-3HF42-TN-S

Out of stock

Specifications

Video

Downloads

Availabe options depending on model
Power ratings	From 1 up to 250Hp
Input voltages	185 - 410VDC photovoltaic 345 - 800VDC photovoltaic
Output voltages	200 - 240V three phase 380 - 480V three phase
General features
Control method	Advanced vector
Inputs	5 programmable: 3 digital + 2 analog / digital
Outputs	4 programmable: 2 digital + 2 analog / digital
Expandable (input/output)	Yes
Built-in communication	Modbus RTU and CANopen over RS-485
Enclosure options	IP20 or IP55 (depending on model)
Display options	Multilanguage OLED or 7 segment LED (depending on model)
Other features	Takes the most from solar energy by delivering maximum power during high radiation periods, and reducing speed when environmental conditions are not optimal (MPPT algorithm) Can be powered with DC voltage from solar panels, or from the AC grid under low radiation conditions (an external transfer system is required) Simple PLC functionality programmable through Opti-Tools licensed version Control technology for multi-pump systems "OPTIFLOW" Special functions for pump systems: priming with leak detection, obstruction detection and cleaning, pre-heating, periodical self-cleaning cycles and maintenance clocks Built-in EMC filter for all models according with IEC/EN 61800-3 standard

Invertek - Archivos CAD

CAD Drawings P2 IP20 Size 5

(Size: 15.2 MB)

Invertek - Manuales y Fichas Técnicas

Invertek - Variadores P2 SOLAR - Manual

(Size: 6.1 MB)

Invertek Software

Invertek-Optitools-Software

(Size: 10.1 MB)

Software para programación de variadores invertek en todas sus series.

Referencia	Resumen producto	Precio	Cantidad
ODP-2-54050-3HF42-TN-S	ODP-2-54050-3HF42-TN-S Power supply: 345 - 800VDC photovoltaic or 380 - 480VAC three phase from grid Output voltage: 380 - 480VAC three-phase Output current: 72A Power: 50Hp / 37kW Communication type: Modbus RTU and Bacnet (RS-485) Display option: Multilanguage OLED Protection degree: IP20 Frame size: 5 Dimensions: H: 486 x W: 222 x D: 260mm Weight: 18,2kg	COP0
