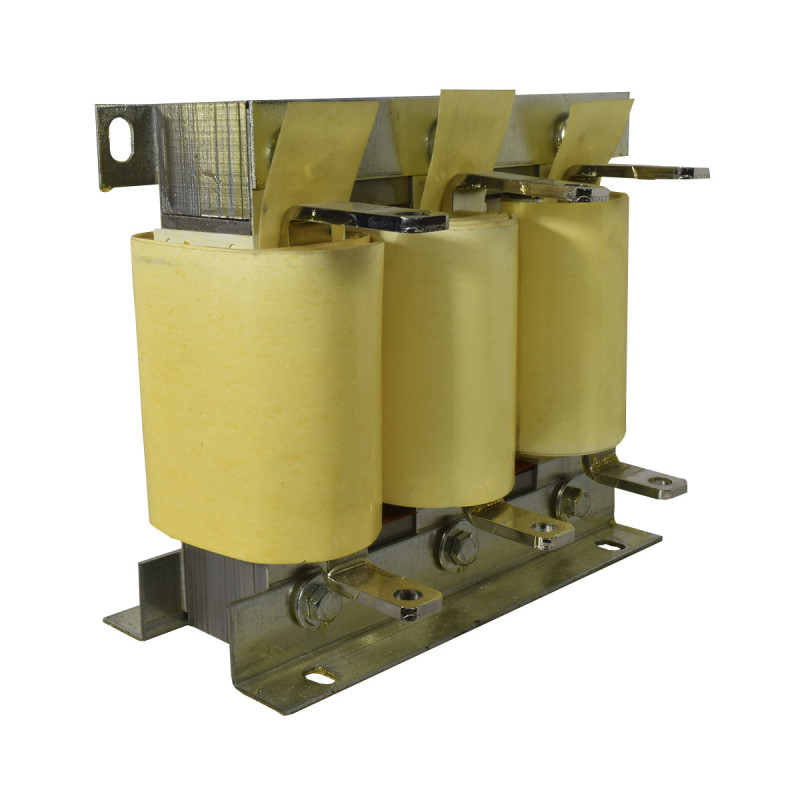

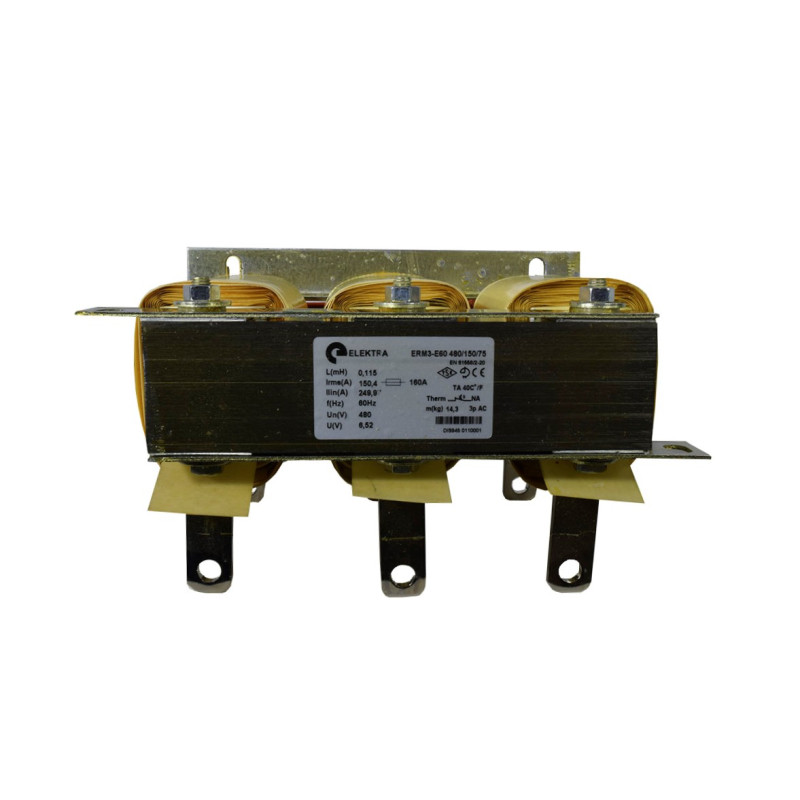

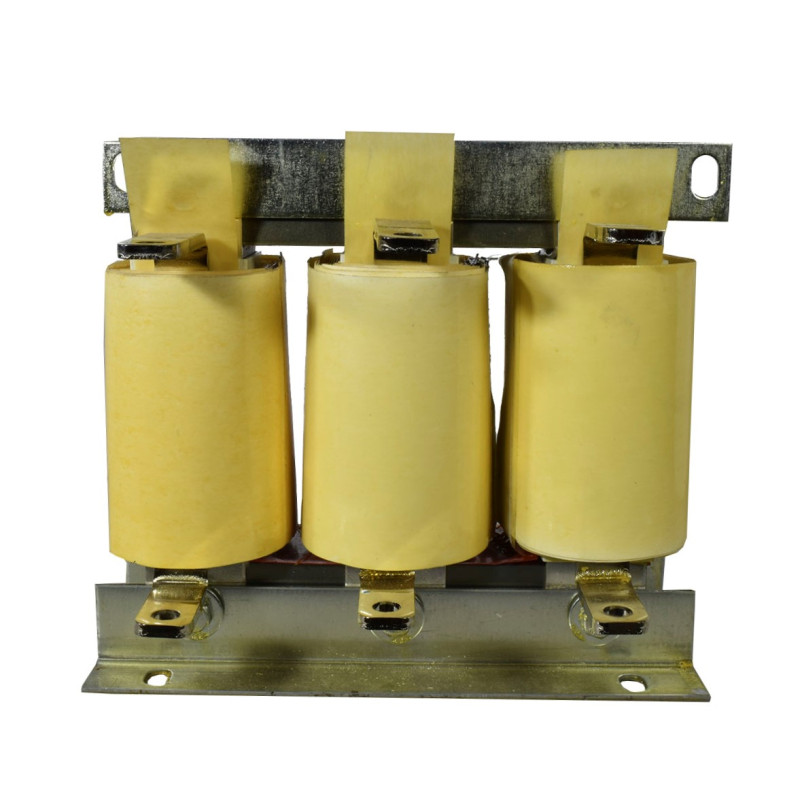

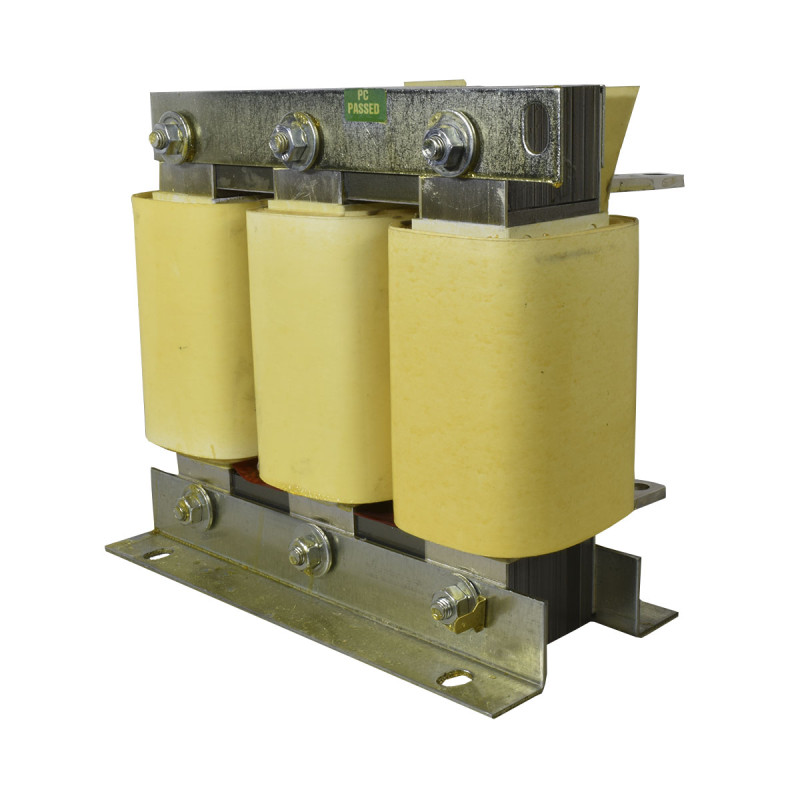

Ref: ERM3-E60-480/150/75

Name: Reactancias para variadores Serie ERM3
Brand: Elektra
SKU: ERM3-E60-480/150/75
Price: 2320500 COP
Availability: OutOfStock

ERM3-E60-480/150/75

Out of stock

Specifications

Downloads

Reactor Type	Three phase inverter output reactor
Description	Motor Drive Output Reactors are used at the output of motor drives to make the PWM output waveshape of the motor drives smoother. This way the motor is supplied with a cleaner and smoother sinusoidal wave.
Inductance (mH)	4,33±5% to 0,05±5%
Nominal Current	4A to 350A
Nominal Voltage	480VAC
Frequency (Hz)	60
Isolation Class	ta 40°C/F
Ripple	4800Hz'de 0,8A to 4800Hz'de 70A
Winding Material	Aluminium round wire / Aluminium flat wire /Aluminium foil
Connection Type	Bar / Terminal block / DIN rail block
Enviromental Class	C1/E0/F0
IP Class	IP00
Dimensions (mm)	101,5 x 120 x 98 to 225 x 300 x 227
Weight	1,4 kg a 36,4 kg

Elektra - Manuales y Fichas Técnicas

Elektra - ERM3-E60 480_150_75 - Datasheets

(Size: 299.3 KB)

Referencia	Resumen producto	Precio	Cantidad
ERM3-E60-480/150/75	ERM3-E60-480/150/75 Type: Three phase inverter output reactor Rated voltage: 480VAC Nominal current: 150A Inductance (mH): 0,12±5% Dimensions: 205 x 240 x 160 mm	COP2,320,500
