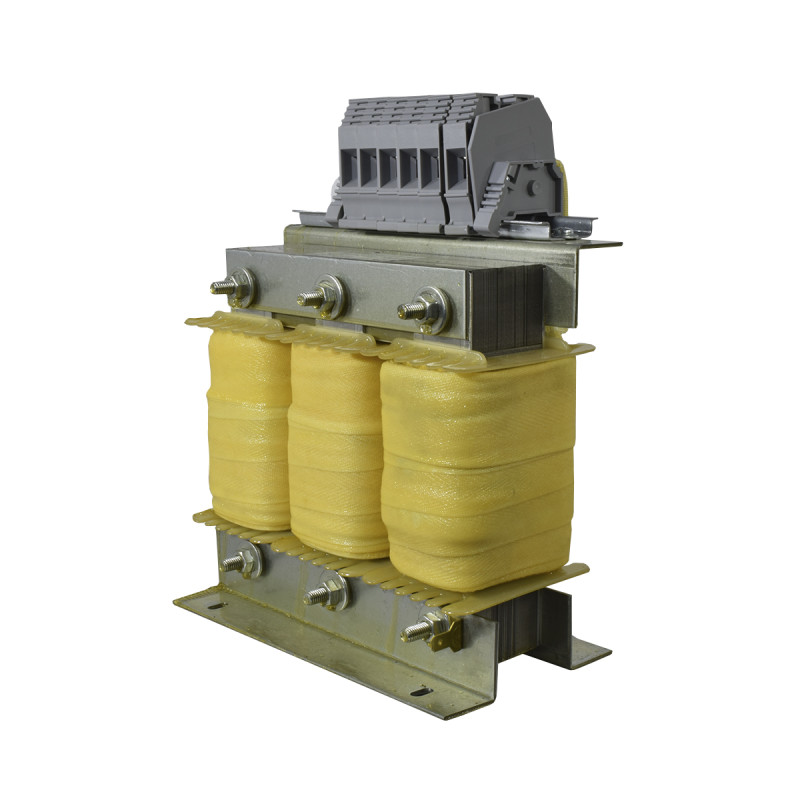

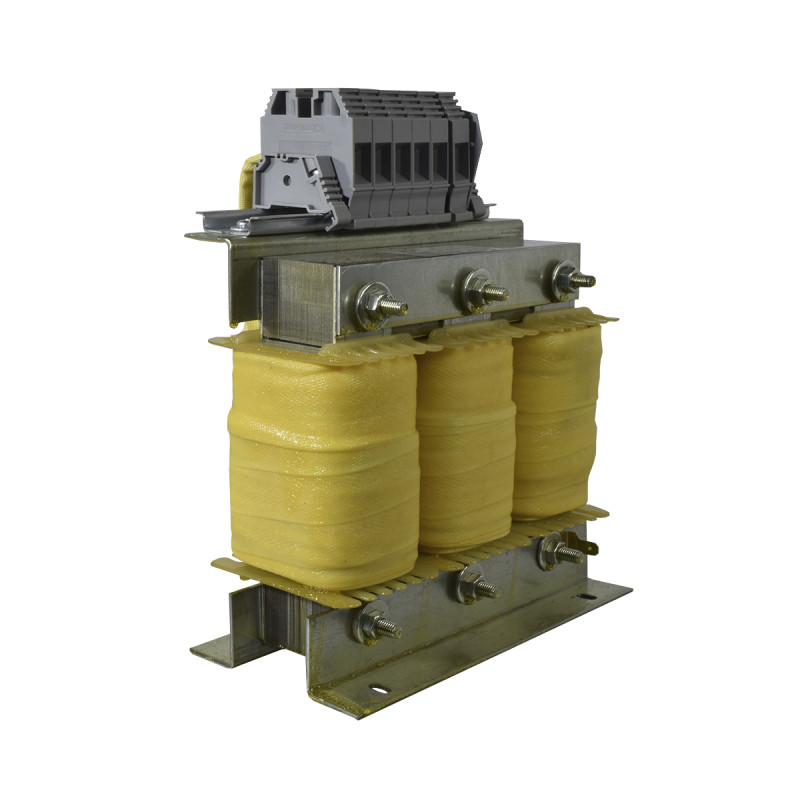

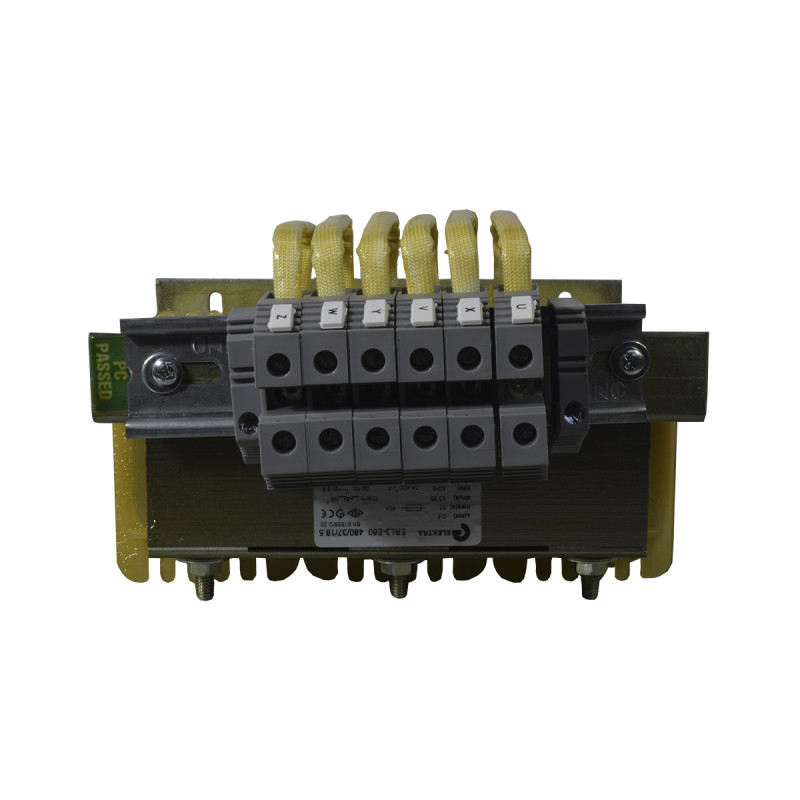

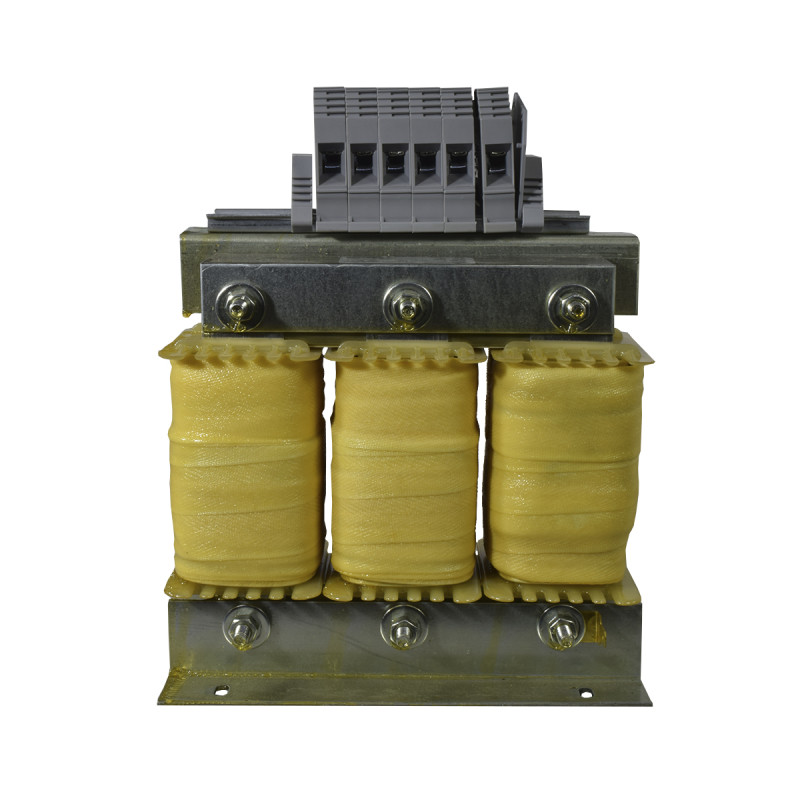

Ref: ERL3-E60-480/37/18.5

Name: Reactancias para variadores Serie ERL3
Brand: Elektra
SKU: ERL3-E60-480/37/18.5
Price: 1213800 COP
Availability: OutOfStock

ERL3-E60-480/37/18.5

Out of stock

Specifications

Downloads

Reactor Type	Three phase motor drive input reactor
Description	Motor Drive Input Reactors are used in series with motor drives to dampen harmonics and prevent their harmful effects. Furthermore these reactors help overcoming voltage fluctuations at drive input
Inductance (mH)	5,88±5% to 0,08±5%
Nominal Current	5A a 350A
Nominal Voltage	480VAC
Frequency (Hz)	60
Isolation Class	ta 40°C/F
Winding Material	Aluminium round wire / Aluminium flat wire Aluminium foil
Connection Type	Terminal block / DIN rail block / Bar
Dimensions (mm)	103 x 120 x 82 to 305 x 330 x 257
IP Class	IP00
Weight	1,4 kg to 52,9 kg

Elektra - Manuales y Fichas Técnicas

Elektra - ERL3-E60 480_37_18.5 - Datasheets

(Size: 312.3 KB)

Referencia	Resumen producto	Precio	Cantidad
ERL3-E60-480/37/18.5	ERL3-E60-480/37/18.5 Type: Three phase motor drive input reactor Rated voltage: 480VAC Nominal current: 37A Inductance (mH): 0,8±5% Dimensions: 213 x 180 x 117 mm	COP1,213,800
