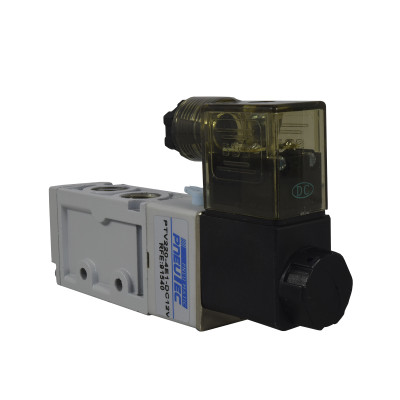

PTV-220 series solenoid valves

PTV-220 series solenoid valves

Certifications:

In stock











Operation type5/2 NC Solenoid Valve (Internally Piloted Action)
Coil voltage12VDC - 24VDC - 24VAC - 110VAC o 220VAC ±10% (depend of reference)
Effective area14mm²
Applicable pressure range21 to 116 Psi (1,5 to 8,16 kg/cm²)
CV value0,78
Operating temperature5 to 60°C
Fluid typeAir
Connection type1/4" NPT
Protection degreeIP65
Width22mm

Downloads

Pneutec - Manuales y Fichas Técnicas
pdf
Pneutec - PTV220 - Datasheets
(Size: 646.6 KB)



sku Summary Unit Price Qty
91540

PTV-220-4E1-DC12V
Type: Solenoid valves
Coil voltage: 12VDC
Operation type: Internally piloted action
Valve type: 5/2
Pressure range: 21 to 116 Psi
Effective area: 14mm²
CV: 0,78
Connection port: 1/4" NPT
Discharge port: 1/8" NPT
Material: Aluminum alloy

 COP70,686
Sin Stock
91542

PTV-220-4E1-DC24V
Type: Solenoid valves
Coil voltage: 24VDC
Operation type: Internally piloted action
Valve type: 5/2
Pressure range: 21 to 116 Psi
Effective area: 14mm²
CV: 0,78
Connection port: 1/4" NPT
Discharge port: 1/8" NPT
Material: Aluminum alloy

 COP66,402
Sin Stock
91546

PTV-220-4E1-AC24V
Type: Solenoid valves
Coil voltage: 24VAC
Operation type: Internally piloted action
Valve type: 5/2
Pressure range: 21 to 116 Psi
Effective area: 14mm²
CV: 0,78
Connection port: 1/4" NPT
Discharge port: 1/8" NPT
Material: Aluminum alloy

 COP75,398
Sin Stock
91548

PTV-220-4E1-AC110V
Series: PTV-220
Coil voltage: 110VAC
Operation type: Internally piloted action
Valve type: 5/2
Pressure range: 21 to 116 Psi
Effective area: 14mm²
CV: 0,78
Connection port: 1/4" NPT
Discharge port: 1/8" NPT
Material: Aluminum alloy

 COP78,540
Sin Stock
91550

PTV-220-4E1-AC220V
Type: Solenoid valves
Coil voltage: 220VAC
Operation type: Internally piloted action
Valve type: 5/2
Pressure range: 21 to 116 Psi
Effective area: 14mm²
CV: 0,78
Connection port: 1/4" NPT
Discharge port: 1/8" NPT
Material: Aluminum alloy

 COP72,828
Sin Stock
