Ref: 91387

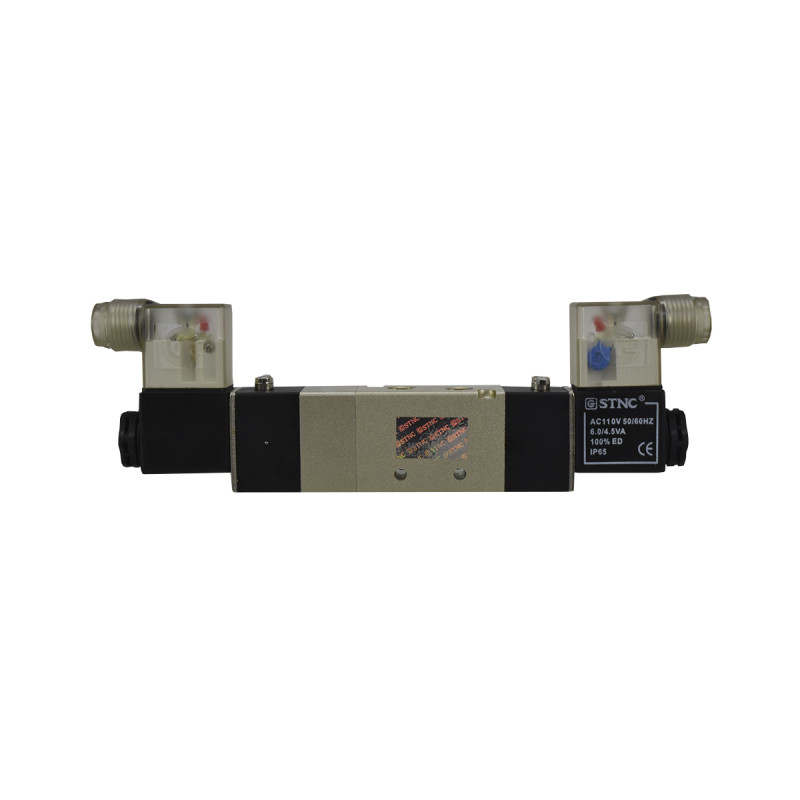

Name: Válvulas solenoides biestables serie TG-35
Brand: STNC
SKU: 91387
Price: 127235 COP
Availability: InStock

TG3522-06E-AC110V

In stock

Specifications

Downloads

Operation type	Open / Closed 5/3 Center Solenoid Valve (Internally Piloted Action)
Coil voltage	24VDC or 110VAC ±10% (depend of reference)
Nominal diameter	3,5mm
Applicable pressure range	21.7 to 116 Psi (2 to 8,16 kg/cm²)
CV value	0,67
Operating temperature	-5 to 60°C
Fluid type	Air
Connection type	1/8" NPT
Protection degree	IP65

STNC - Manuales y Fichas Técnicas

STNC - Serie TG - Datasheets

(Size: 2.9 MB)

STNC - Serie TG25_35 - Datasheets

(Size: 5 MB)

Referencia	Resumen producto	Precio	Cantidad
91387	TG3522-06E-AC110V Type: Bistable solenoid valves Coil voltage: 110VAC Operation type: Internally piloted action Valve type: 5/3 NO Pressure range: 21.7 to 116psi Nominal diameter: 3,5mm CV: 0,67 Connection port: 1/8" NPT Discharge port: 1/8" NPT Material: Aluminum alloy	COP127,235
