Ref: 91343

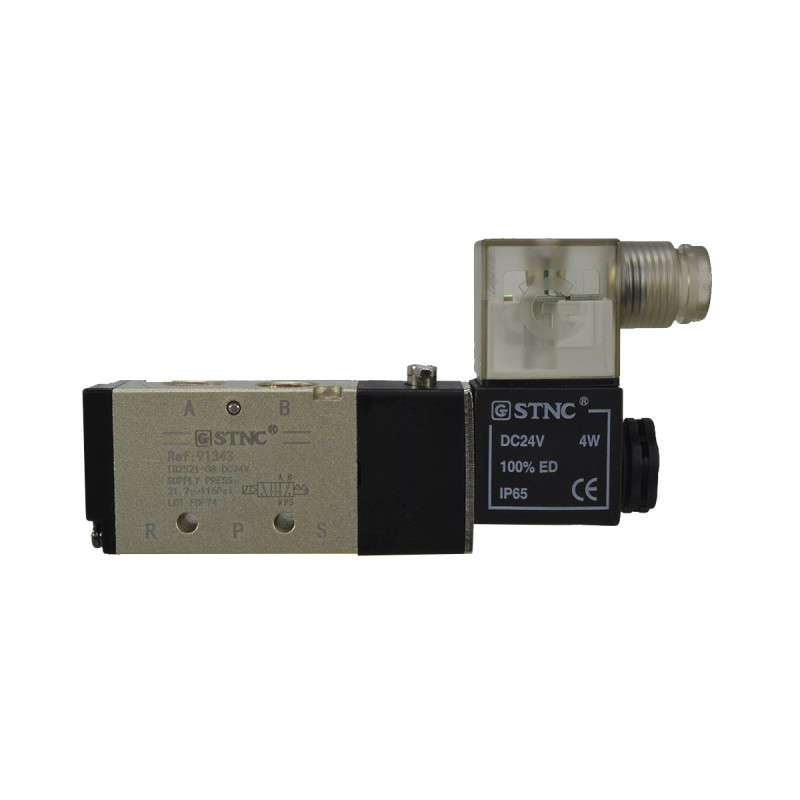

Name: Válvulas solenoides serie TG-25
Brand: STNC
SKU: 91343
Price: 67544 COP
Availability: OutOfStock

TG2521-08-DC24V

Out of stock

Specifications

Downloads

Operation type	5/2 NC Solenoid Valve (Internally Piloted Action)
Coil voltage	24VDC - 110VAC ±10% (depend of reference)
Nominal diameter	4 or 4,5mm (depend of reference)
Applicable pressure range	21 to 116 Psi (1,5 to 8,16 kg/cm²)
CV value	0,67 or 0,78 (depend of reference)
Operating temperature	-5 to 60°C
Fluid type	Air
Connection type	1/8" - 1/4" NPT (depend of reference)
Protection degree	IP65
Width	22mm

STNC - Manuales y Fichas Técnicas

STNC - Serie TG25_35 - Datasheets

(Size: 5 MB)

Referencia	Resumen producto	Precio	Cantidad
91343	TG2521-08-DC24V Type: Solenoid valves Coil voltage: 24VDC Operation type: Internally piloted action Valve type: 5/2 Pressure range: 21 to 116 Psi Nominal diameter: 4,5mm CV: 0,78 Connection port: 1/4" NPT Discharge port: 1/8" NPT Material: Aluminum alloy	COP67,544
