Ref: TF series plastic valves

Name: TF series plastic valves
Brand: STNC
SKU: Válvulas plásticas serie TF
Price: 39270 COP
Availability: OutOfStock

TF series plastic valves

Certifications:

In stock

Specifications

Downloads

Especificaciones

Operation type	Direct action (NC)
Coil voltage	24VDC - 110VAC or 220VAC (depend of reference)
Aperture	2.5mm
CV value	0.23
Applicable pressure range	0 to 100 Psi (0 to 7.14 kg / cm²)
Operating temperature	-5 to 60 ° C
Fluid type	Air, water or oil (Less than 20CST)
Connection type	1/8 "or 1/4" NPT (depend of reference)
Material	Body material (plastic) NBR seal

Downloads

STNC - Manuales y Fichas Técnicas

STNC - Serie TF - Datasheets

(Size: 717.4 KB)

sku	Summary	Unit Price	Qty

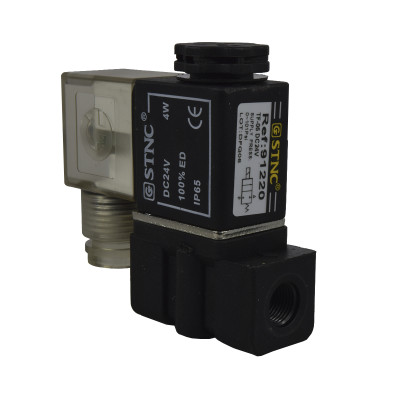

91220	TF-06 DC24V Type: Plastic valve Coil voltage: 24VDC Operation type: Direct action Valve type: 2/2 NC Pressure range: 0 to 100Psi Nominal diameter: 2,5mm CV: 0,23 Connection port: 1/8" NPT	COP39,270	Sin Stock
91223	TF-06 AC110V Type: Plastic valve Coil voltage: 110VAC Operation type: Direct action Valve type: 2/2 NC Pressure range: 0 to 100Psi Nominal diameter: 2,5mm CV: 0,23 Connection port: 1/8" NPT	COP39,270	Sin Stock
91226	TF-06 AC220V Type: Plastic valve Coil voltage: 220VAC Operation type: Direct action Valve type: 2/2 NC Pressure range: 0 to 100Psi Nominal diameter: 2,5mm CV: 0,23 Connection port: 1/8" NPT	COP39,984	Sin Stock
91230	TF-08 DC24V Type: Plastic valve Coil voltage: 24VDC Operation type: Direct action Valve type: 2/2 NC Pressure range: 0 to 100Psi Nominal diameter: 2,5mm CV: 0,23 Connection port: 1/4" NPT	COP39,270	Sin Stock
91233	TF-08 AC110V Type: Plastic valve Coil voltage: 110VAC Operation type: Direct action Valve type: 2/2 NC Pressure range: 0 to 100Psi Nominal diameter: 2,5mm CV: 0,23 Connection port: 1/4" NPT	COP39,270	Sin Stock
91236	TF-08 AC220V Type: Plastic valve Coil voltage: 220VAC Operation type: Direct action Valve type: 2/2 NC Pressure range: 0 to 100Psi Nominal diameter: 2,5mm CV: 0,23 Connection port: 1/4" NPT	COP39,270	Sin Stock
