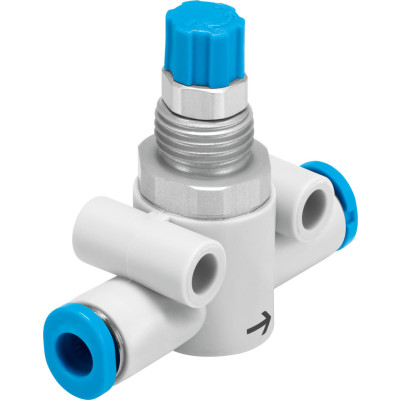

GR series one-way flow control valves

GR series one-way flow control valves

GR series one-way flow control valves

Certifications:

In stock







TypeOne-way flow control
Applicable pressure range0.1 - 10bar (depends on reference)
Fluid typeCompressed air
Connection typeG1/8 "- G1/4" - 4mm fitting - 6mm fitting - 8mm fitting (depends on reference)
MaterialAluminum - Thermoplastic - Zinc (depends on reference)
Atex declarationZones 1, 2, 21 and 22

Downloads

Festo - Manuales y Fichas Técnicas
pdf
Festo - Válvulas EyA GR - Datasheet
(Size: 1 MB)



sku Summary Unit Price Qty
F-151215

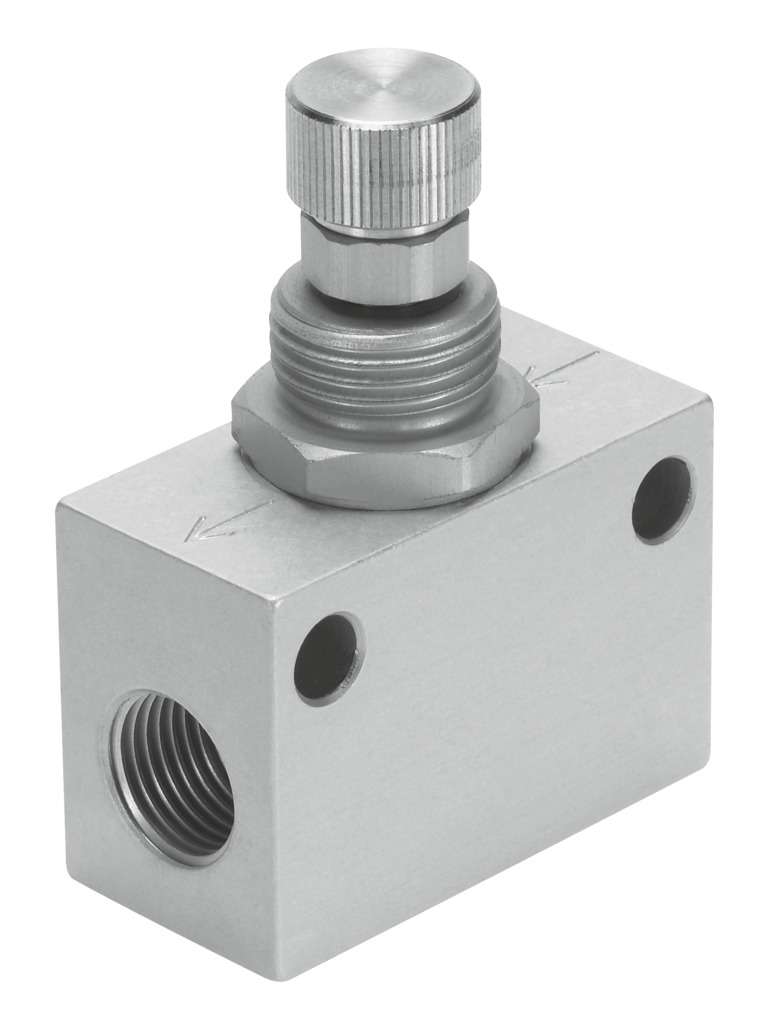

GR-1/8-B
Nominal diameter: 3mm
Material: Wrought aluminum alloy
Operation type: Knurled screw
Connection port: G1/8"
Pressure range: 0.5 - 10bar
Series: GR
Type: One-way flow control valve
Flow rate: 210 l/min
Operating temperature: -20 to 60°C

 COP455,532
Sin Stock
F-193967

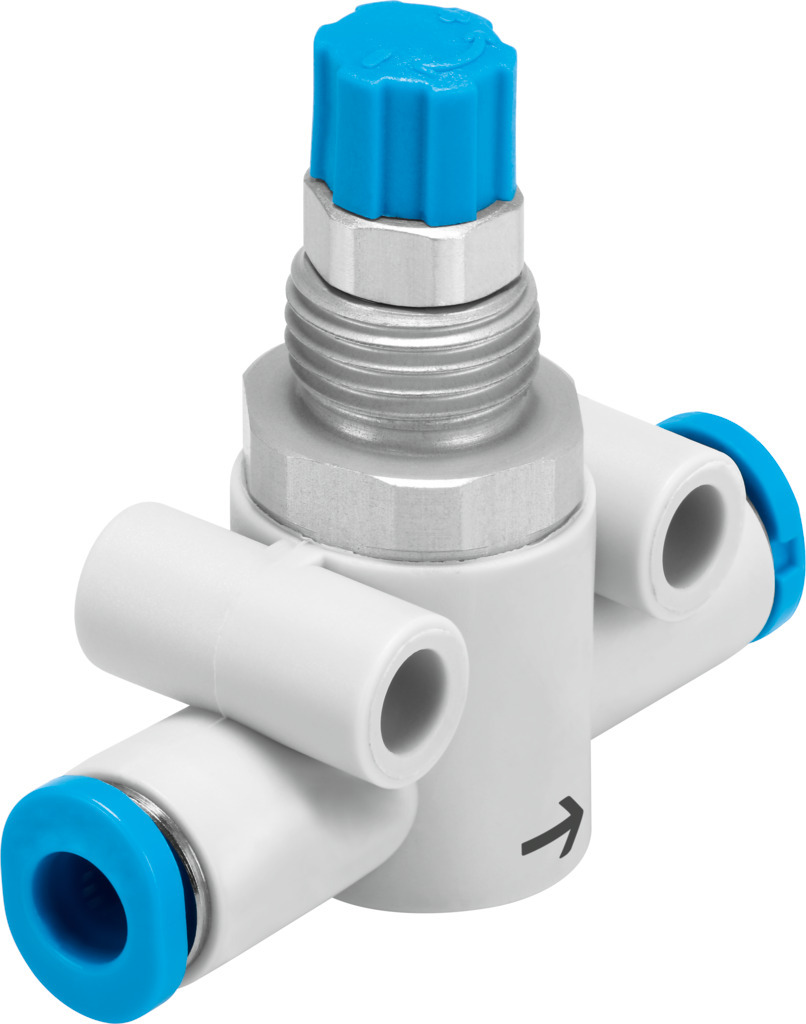

GR-QS-4
Material: PA-reinforced
Operation type: Knurled screw
Connection port: 4mm fitting
Pressure range: 0.2 - 10bar
Series: GR
Type: One-way flow control valve
Flow rate: 110 l/min
Operating temperature: -10 a 60°C

 COP288,884
Sin Stock
F-193969

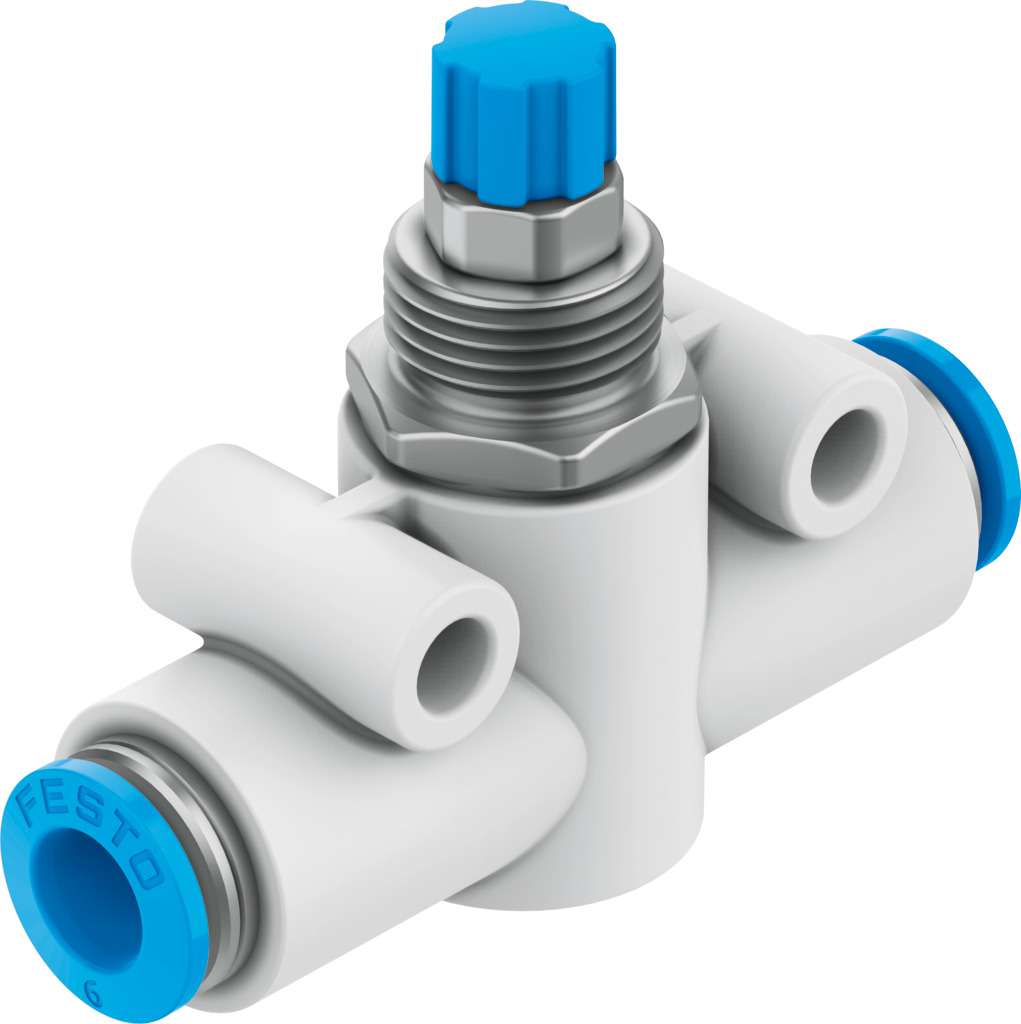

GR-QS-6
Material: PA-reinforced
Operation type: Knurled screw
Connection port: 6mm fitting
Pressure range: 0.2 - 10bar
Series: GR
Type: One-way flow control valve
Flow rate: 245 l/min
Operating temperature: -10 a 60°C

 COP305,164
Sin Stock
F-193970

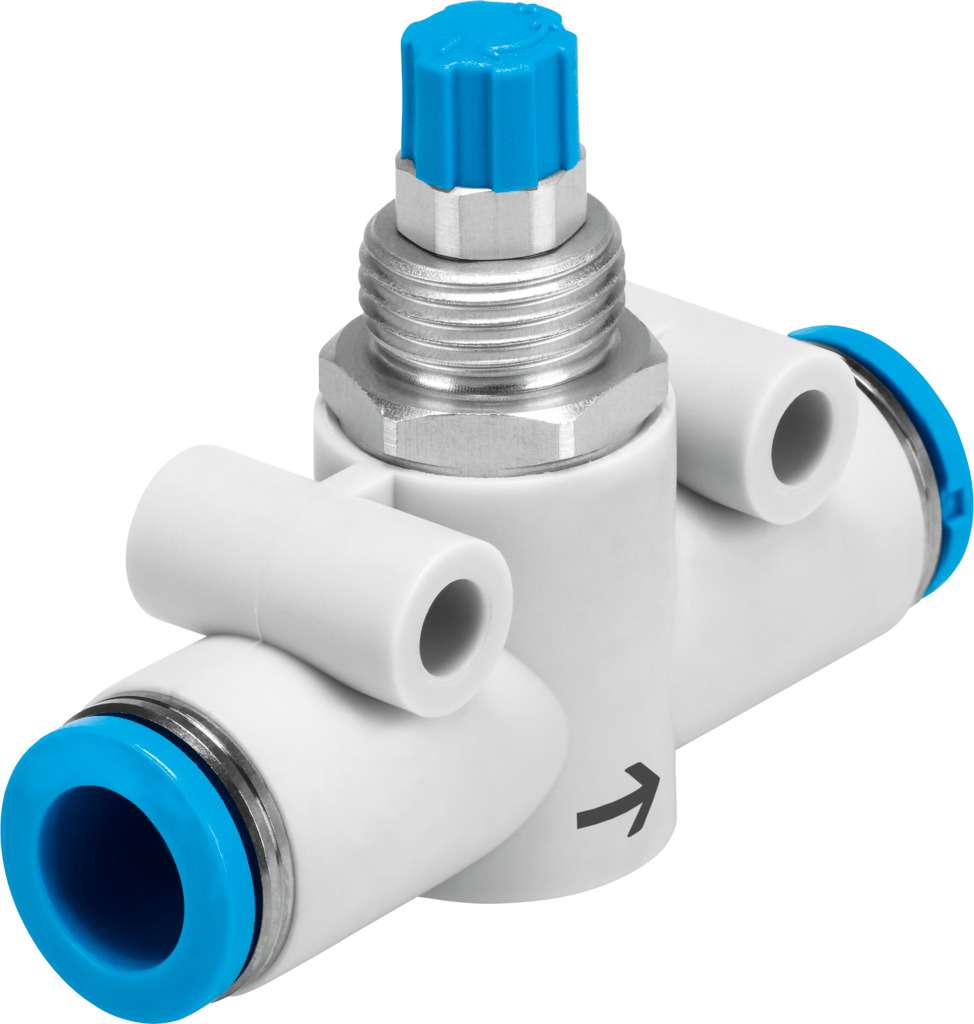

GR-QS-8
Material: PA-reinforced
Operation type: Knurled screw
Connection port: 8mm fitting
Pressure range: 0.2 - 10bar
Series: GR
Type: One-way flow control valve
Flow rate: 265 l/min
Operating temperature: -10 a 60°C

 COP378,420
Sin Stock
F-6509

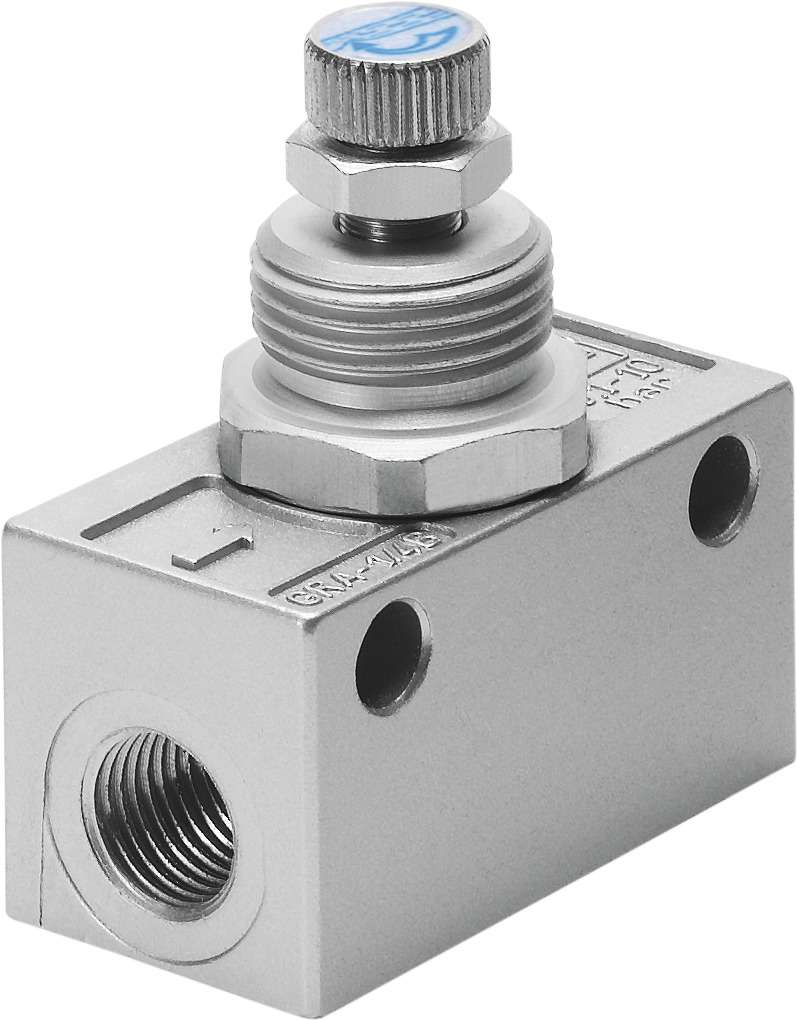

GRA-1/4-B
Material: Die-cast zinc
Operation type: Knurled screw
Connection port: G1/4"
Pressure range: 0.1 - 10bar
Series: GRA
Type: One-way flow control valve
Flow rate: 420 l/min
Operating temperature: -20 to 75°C

 COP664,020
Sin Stock
reset

* Required Fields


Products

Purchases

Users

Company policies

Customer service

PBX: (601) 344-4888

Cell: (315) 063-3121

[email protected]

Calle 16 No. 12 - 56

Complaints and claims

Síguenos

Help Us to Keep Magento Healthy - Report All Bugs (ver. 1.9.2.2)

© 2026. ELÉCTRICAS BOGOTÁ - All rights reserved- Partial or total reproduction prohibited. - Development by TGA Software
