Ref: 86805

Name: Generadores de vacío serie ZK
Brand: STNC
SKU: 86805
Price: 24062 COP
Availability: OutOfStock

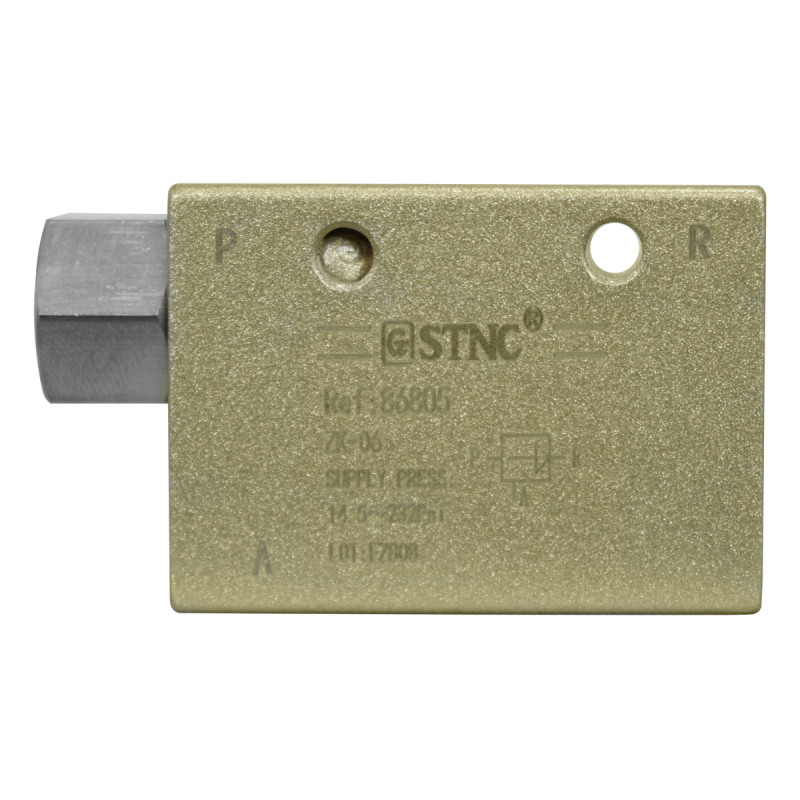

ZK-06

Out of stock

Specifications

Downloads

Operation type	Vacuum generator
Nozzle diameter	1mm² - 1,5mm² - 2mm² (according to reference)
Maximum flow (l / min)	36 - 95 - 110 (according to reference)
Vacuum pressure	-3 to -8 Psi (-0.21 to -0.56kg / cm²)
Operating pressure	14 to 232 Psi
Connection port	1/8 "- 1/4" - 3/8 "NPT (according to reference)
Material	Aluminum alloy body and NBR seals

STNC - Manuales y Fichas Técnicas

Stnc - ZK - Datsaheet

(Size: 288.7 KB)

Referencia	Resumen producto	Precio	Cantidad
86805	ZK-06 Type: Generator Nozzle diameter: 1mm Fluid range: 36 l/min Vacumm range: -3 to 8Psi Operation type: 14 to 232Psi Connection port: 1/8" NPT Material: Aluminum alloy	COP24,062
