Ref: 86817

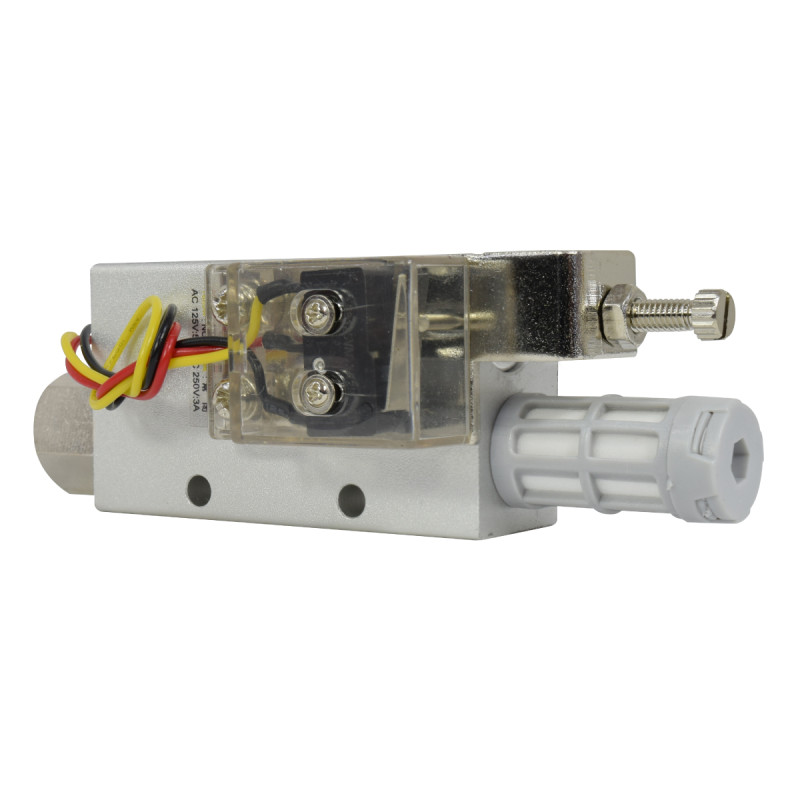

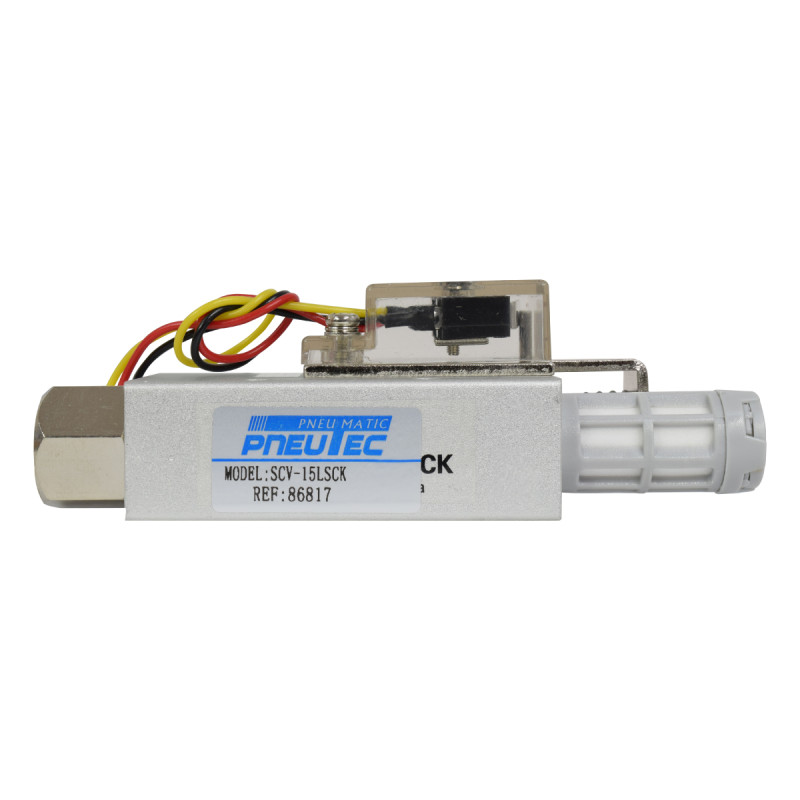

Name: Generadores de vacío serie SCV
Brand: Pneutec
SKU: 86817
Price: 108528 COP
Availability: InStock

SCV-15LSCK

In stock

Specifications

Downloads

Operation type	Vacuum generator
Nozzle diameter	1mm² - 1,5mm² - 2mm² (according to reference)
Maximum flow (l / min)	36 - 95 - 110 (according to reference)
Operating temperature	-5 to 60°C
Adjustable pressure range	From -20 to -53,2Kpa
Vacuum pressure	-3 to -8 Psi (-0.21 to -0.56kg / cm²)
Operating pressure	14 to 232 Psi
Connection port	1/8 "- 1/4" - 3/8" NPT (according to reference)
Material	Aluminum alloy body and NBR seals

Pneutec - Manuales y Fichas Técnicas

Pneutec - Serie SCV - Datasheets

(Size: 898.6 KB)

Referencia	Resumen producto	Precio	Cantidad
86817	SCV-15LSCK Type: Generator with silencer Nozzle diameter: 1,5mm Fluid range: 95 l/min Vacumm range: -3 to 8Psi Operation type: 14 to 232Psi Connection port: 1/4" NPT Material: Aluminum alloy	COP108,528
