Ref: 85225

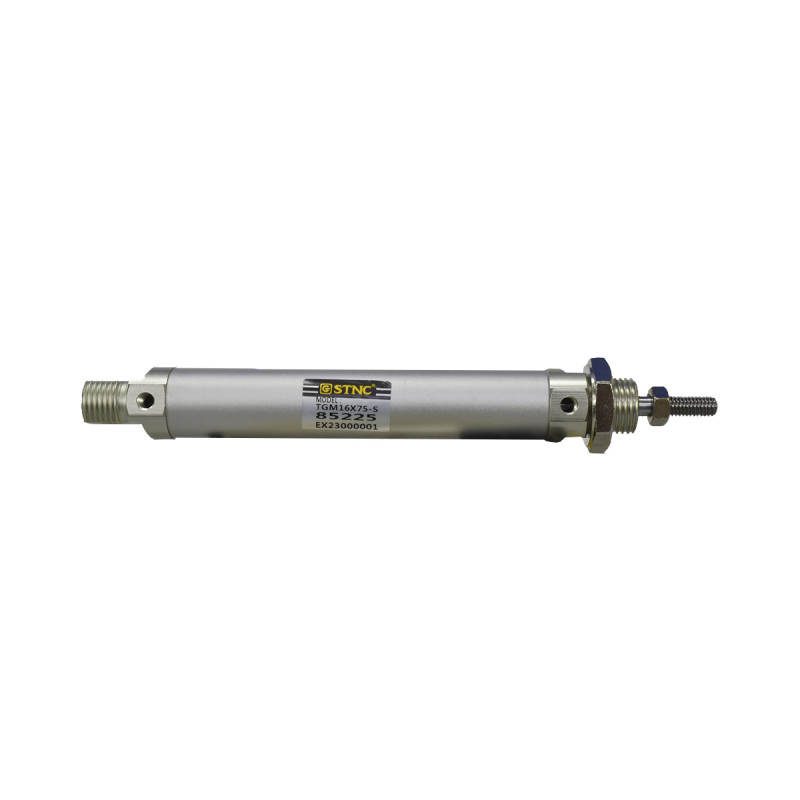

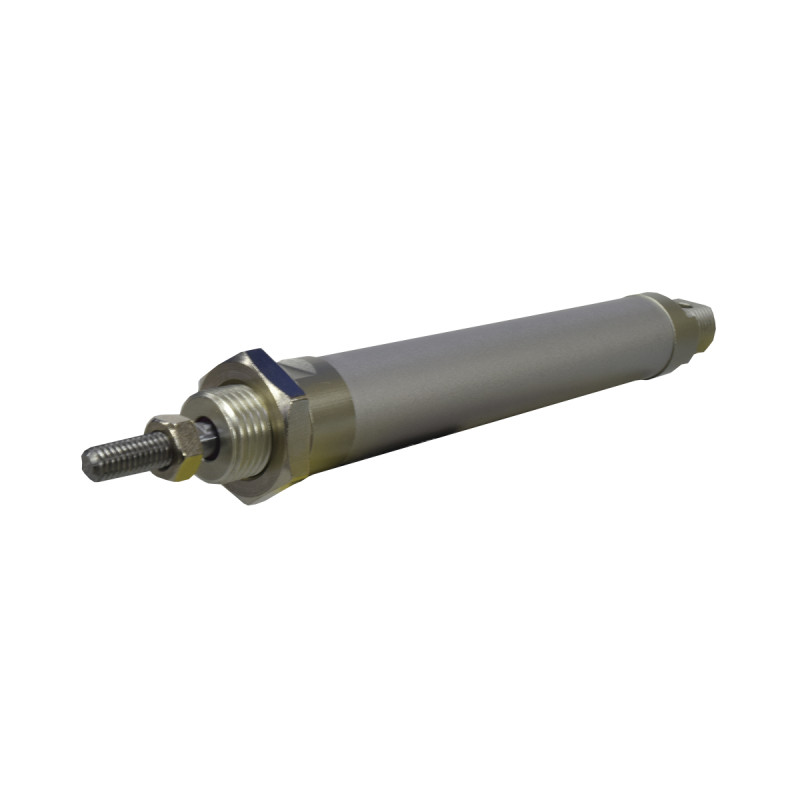

Name: Cilindros redondos serie MAL
Brand: STNC
SKU: 85225
Price: 73828 COP
Availability: OutOfStock

TGM16X75-S

Out of stock

Specifications

Downloads

Operation type	Double acting cylinder
Shank diameter	16mm - 20mm - 25mm or 32mm (depend of reference)
Length	From 25 to 300mm (depend of reference)
Shank thread	M6 x 1 - M8 x 1,25 or M10 x 1,25 (depend of reference)
Theoretical strength	14Kg - 28Kg - 44Kg o 70Kg (max.) (depend of reference)
Operating pressure	14 to 130 Psi
Operating speed range	30 to 800mm/s
Operating temperature	-5 to 70°C
Connection port	M5 or 1/8"NPT (according to reference)
Material	Aluminum tubular sleeve, standard magnetic ring

Pneutec - Manuales y Fichas Técnicas

STNC - Serie TGM - Datasheets

(Size: 1.9 MB)

Referencia	Resumen producto	Precio	Cantidad
85225	TGM16X75-S Type: Round cylinders Stroke length: 75mm Rod diameter: 16mm Shank thread: M6 x 1 Theoretical strength: 14 Kg Connection port: M5 Material: Aluminium	COP73,828
