Ref: SC/ISO series fisheye joint

Name: SC/ISO series fisheye joint
Brand: Pneutec
SKU: Rótula frontal serie SC/ISO
Price: 21420 COP
Availability: OutOfStock

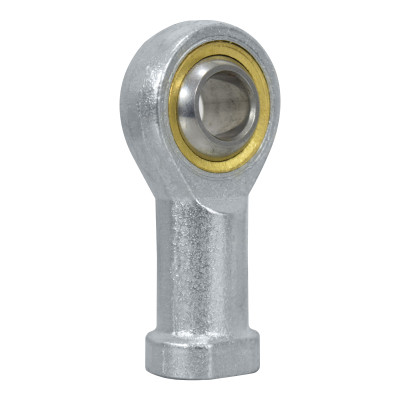

SC/ISO series fisheye joint

In stock

Specifications

Downloads

Operation type	FJ-11 fisheye joint
Shank diameter	20mm - 32mm - 40mm - 50mm - 63mm - 80mm o 100mm (depend of reference)
Shank thread	M8 x 1,25 - M10 x 1,25 - M12 x 1,25 - M16 x 1,5 or M20 x 1,5 (depend of reference)
Used with	Mickey mouse, ISO6431 and mini cylinders MA/MAL type cylinders

Pneutec - Manuales y Fichas Técnicas

Pneutec - Accessories for round cylinders - Datasheets

(Size: 2.3 MB)

PNEUTEC - Accessories ISO 6431 - Datasheets

(Size: 2.2 MB)

Pneutec - Accessories TG - Datasheets

(Size: 2.5 MB)

sku	Summary	Unit Price	Qty
87460	ISO-PHS-32 Type: Front patella Use with cylinders: Series DNC/TGD Rod diameter: 32mm Shank thread: M10 x 1,25	COP21,420	Sin Stock
85142	SC-PHS25/32 Type: Front patella Use with cylinders: Series SC/SU/DNC/TGD Rod diameter: 32mm Shank thread: M10 x 1,25	COP21,420	Sin Stock
85192	ISO-PHS40 Type: Front patella Use with cylinders: Series SC/SU/DNC/TGD Rod diameter: 40mm Shank thread: M12 x 1,25	COP28,560	Sin Stock
85192-1	ISO-PHS50/63 Type: Front patella Use with cylinders: Series SC/SU/DNC/TGD Rod diameter: 50/63mm Shank thread: M16 x 1,5	COP45,553	Sin Stock
85192-2	ISO-PHS80/100 Type: Front patella Use with cylinders: Series SC/SU/DNC/TGD Rod diameter: 80/100mm Shank thread: M20 x 1,5	COP98,532	Sin Stock
85285	ISO-PHS20 Type: Front patella Use with cylinders: Series MAL/MA Rod diameter: 20mm Shank thread: M8 x 1,25	COP21,420	Sin Stock
