Ref: F-1383336

Name: DSBC-80-80-PPVA-N3
Brand: Festo
SKU: F-1383336
Price: 2334780 COP
Availability: OutOfStock

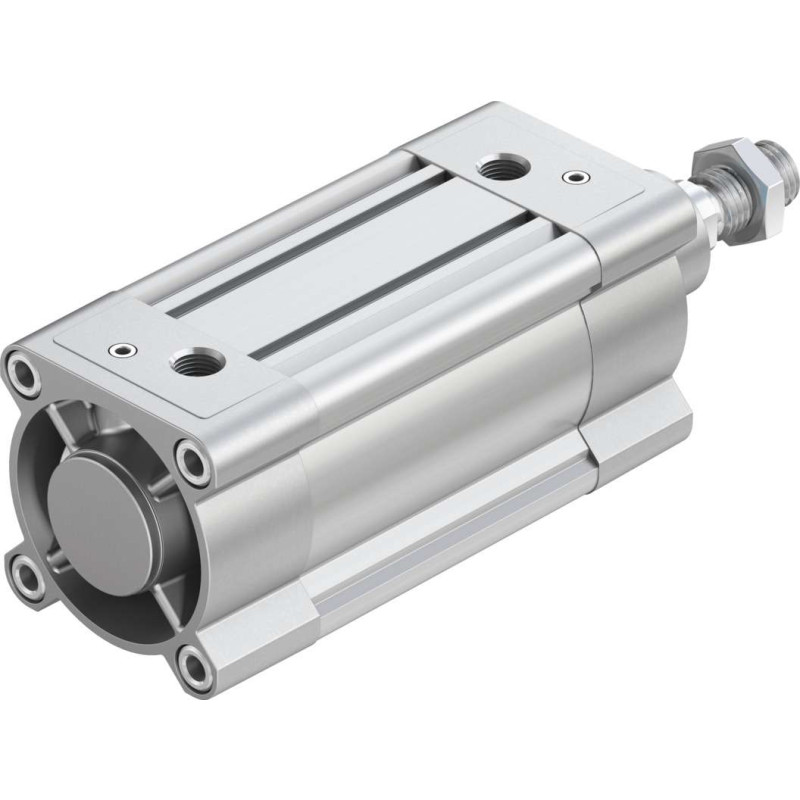

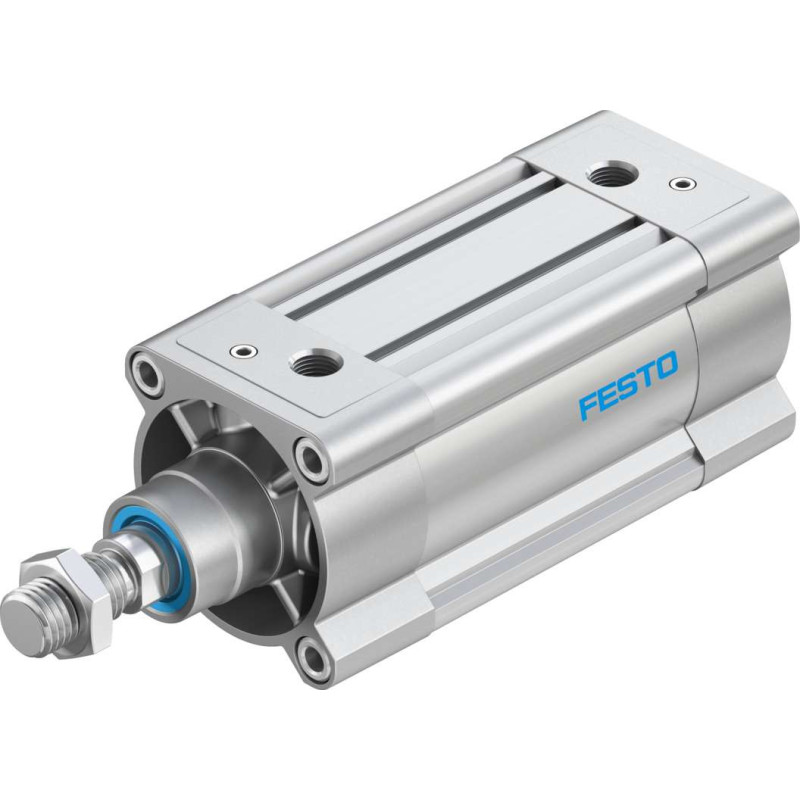

DSBC-80-80-PPVA-N3

Out of stock

Specifications

Downloads

Operation type	Double acting cylinder
Shank diameter	From 32mm to 125mm (depends on reference)
Length	From 50 to 1000mm (depends on reference)
Shank thread	M10 x 1.25 - M12 x 1.25 - M16 x 1.5 - M20 x 1.5 o M27 x 2 (depends on reference)
Theoretical strength	From 483N to 7363N (depends on reference)
Operating pressure	∅ 32 and 40mm: 0.06 to 1.2MPa ∅ 50 to 100mm: 0.04 to 1.2MPa ∅ 125mm: 0.02 to 1.0MPa
Operating temperature	-20 to 80°C
Connection port	G1/8" - G1/4" - G3/8" - G1/2" (depends on reference)
Material	Cover in aluminium, profile tube in anodised wrought aluminium alloy, piston rod in high-alloy steel
Features	Adjustable cushioning on both sides, magnetic ring for detection

Festo - Manuales y Fichas Técnicas

Festo - Cilindros DSBC - Datasheet

(Size: 2.8 MB)

Festo - Cilindros DSBC - Instrucciones

(Size: 331.9 KB)

Referencia	Resumen producto	Precio	Cantidad
F-1383336	DSBC-80-80-PPVA-N3 Type: ISO 15552 cylinders Stroke length: 80mm Rod diameter: 80mm Shank thread: M20 x 1.5 Theoretical strength: 3016N Connection port: G3/8" Material: Cover in aluminium, profile tube in anodised wrought aluminium alloy, piston rod in high-alloy steel Series: DSBC	COP2,334,780
