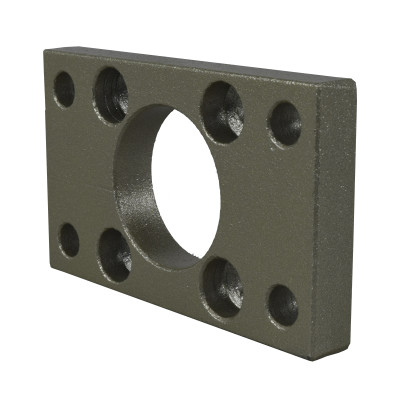

ISO-FA series (FA/FB) flange brackets

ISO-FA series (FA/FB) flange brackets

Certifications:

In stock






Operation typeFixing flanges for various actuators
Shank diameter32mm - 40mm - 50mm - 63mm - 80mm o 100mm (depend of reference)
Shank threadM10 x 1,25 - M12 x 1,25 - M16 x 1,5 or M20 x 1,5 (depend of reference)
Used withISO6431 type cylinders
FeaturesIncludes fixing screws

Downloads

Pneutec - Manuales y Fichas Técnicas
pdf
PNEUTEC - Accessories ISO 6431 - Datasheets
(Size: 2.2 MB)



sku Summary Unit Price Qty
87445

ISO-FA/FB-32
Type: Holding flange (FA / FB)
Use with cylinders: Series DNC/TGD
Rod diameter: 32mm
Shank thread: M10 x 1,25

 COP28,560
Sin Stock
87445-1

ISO-FA/FB-40
Type: Holding flange (FA / FB)
Use with cylinders: Series DNC/TGD
Rod diameter: 40mm
Shank thread: M12 x 1,25

 COP31,416
Sin Stock
87446

ISO-FA/FB-50
Type: Holding flange (FA / FB)
Use with cylinders: Series DNC/TGD
Rod diameter: 50mm
Shank thread: M16 x 1,5

 COP42,840
Sin Stock
87447

ISO-FA/FB-63
Type: Holding flange (FA / FB)
Use with cylinders: Series DNC/TGD
Rod diameter: 63mm
Shank thread: M16 x 1,5

 COP52,836
Sin Stock
87448

ISO-FA/FB-80
Type: Holding flange (FA / FB)
Use with cylinders: Series DNC/TGD
Rod diameter: 80mm
Shank thread: M20 x 1,5

 COP94,248
Sin Stock
87449

ISO-FA/FB-100
Type: Holding flange (FA / FB)
Use with cylinders: Series DNC/TGD
Rod diameter: 100mm
Shank thread: M20 x 1,5

 COP106,814
Sin Stock
