Ref: 85177

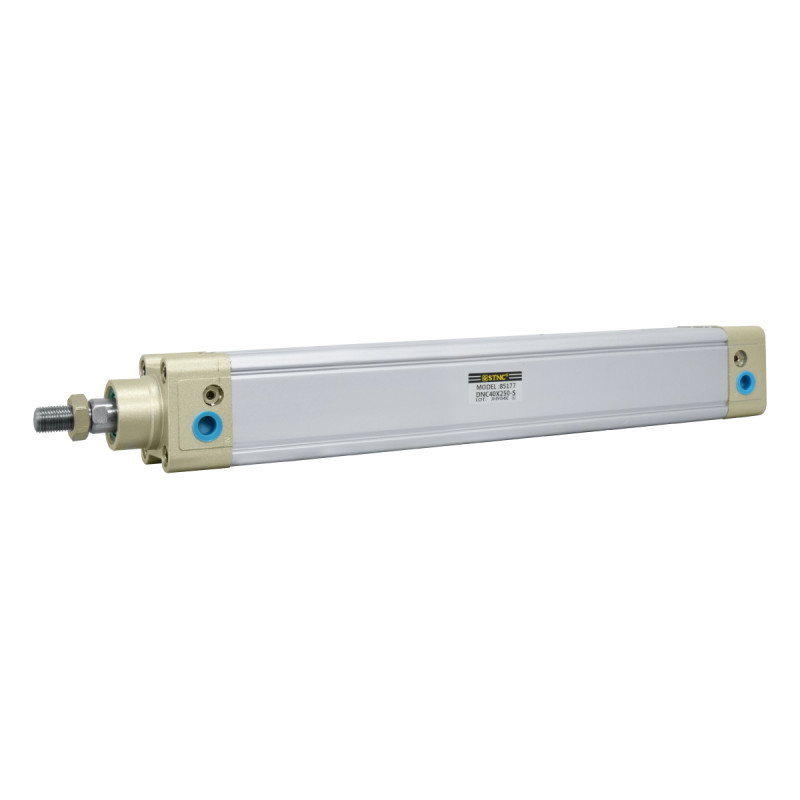

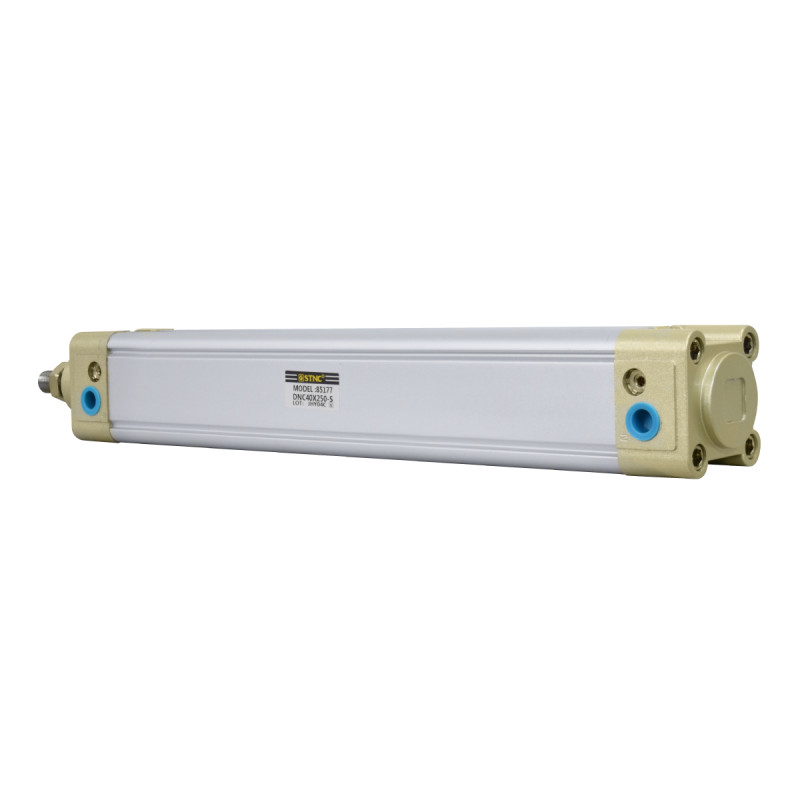

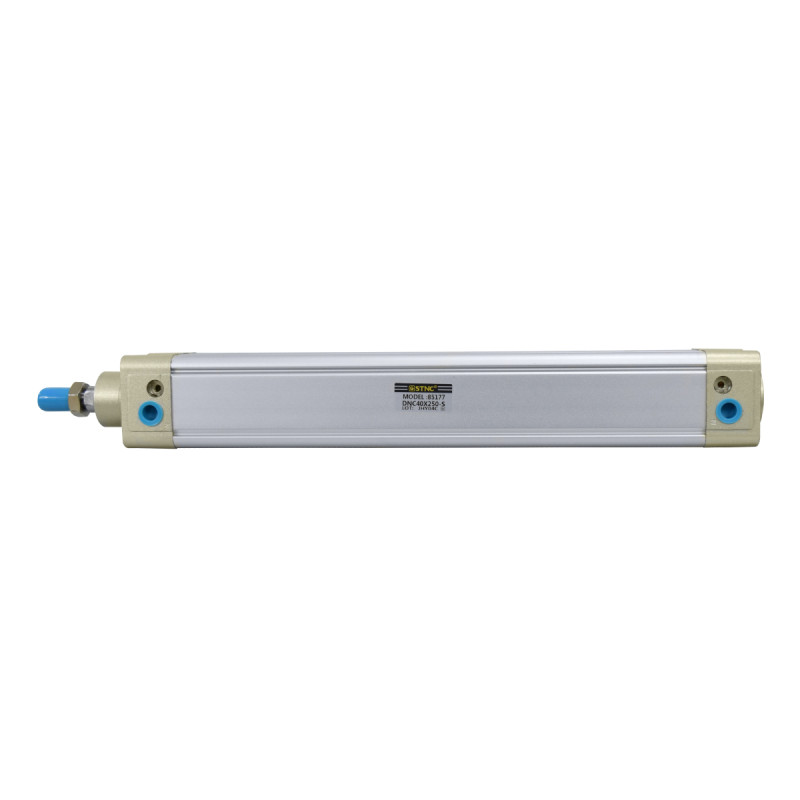

Name: Cilindros neumáticos ISO6431 serie DNC/TGD
Brand: STNC
SKU: 85177
Price: 228480 COP
Availability: OutOfStock

DNC40X250-S

Out of stock

Specifications

Downloads

Operation type	Double acting cylinder
Shank diameter	32mm - 40mm - 50mm - 63mm - 80mm - 100mm or 125mm (depend of reference)
Length	From 50 to 1000mm (depend of reference)
Shank thread	M10 x 1,25 - M12 x 1,25 - M16 x 1,5 or M20 x 1,5 (depend of reference)
Theoretical strength	70 Kg - 110Kg - 170Kg - 280Kg - 450Kg - 700Kg or 1050Kg (max.) (depend of reference)
Operating pressure	14 to 130 Psi
Operating speed range	50 to 800mm/s
Operating temperature	-10 to 60°C
Connection port	1/8 "- 1/4" - 3/8" - 1/2" NPT (according to reference)
Material	Aluminum alloy body and NBR seals
Features	Adjustable cushioning on both sides, standard magnetic ring

STNC - Manuales y Fichas Técnicas

STNC - DNC-TGD - Datasheets

(Size: 923.3 KB)

Referencia	Resumen producto	Precio	Cantidad
85177	DNC40X250-S Type: ISO6431 cylinders Stroke length: 250mm Rod diameter: 40mm Shank thread: M12 x 1,25 Theoretical strength: 110 Kg Connection port: 1/4" NPT Material: Aluminum alloy	COP228,480
