Ref: PM2108

Name: PM2108
Brand: Peakmeter
SKU: PM2108
Price: 289170 COP
Availability: OutOfStock

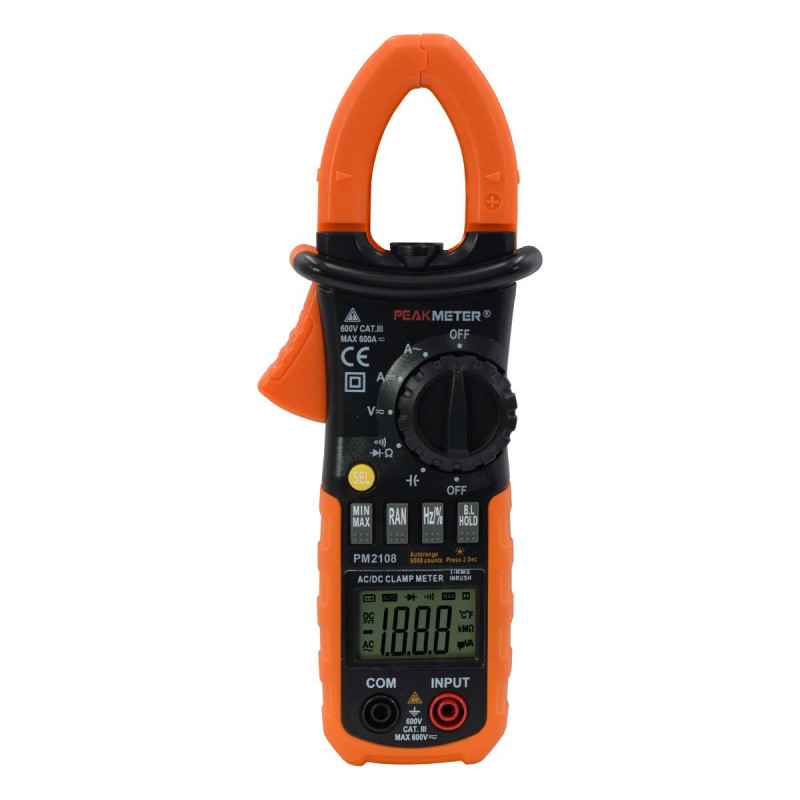

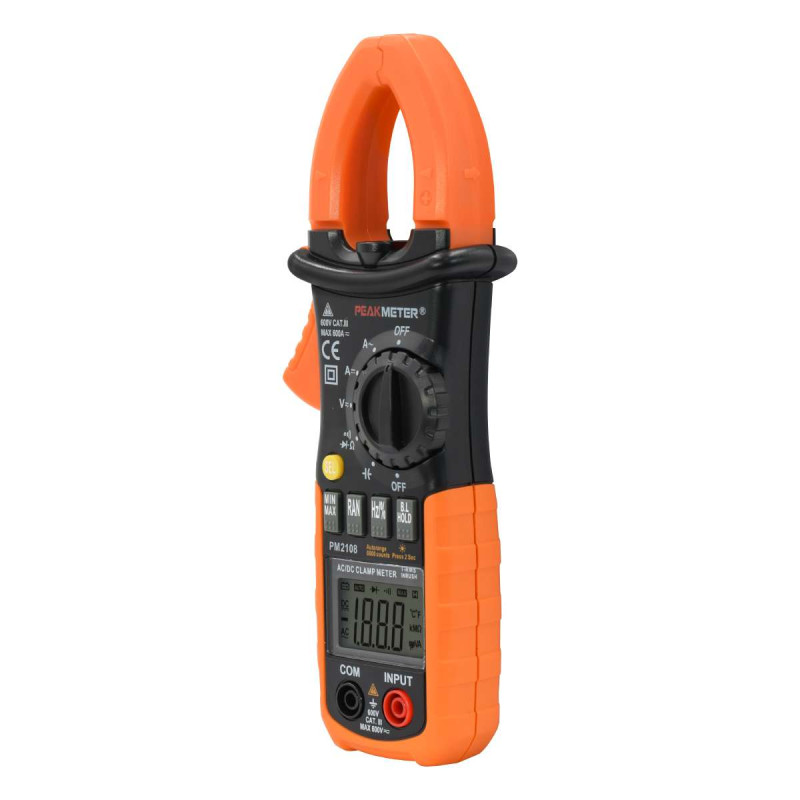

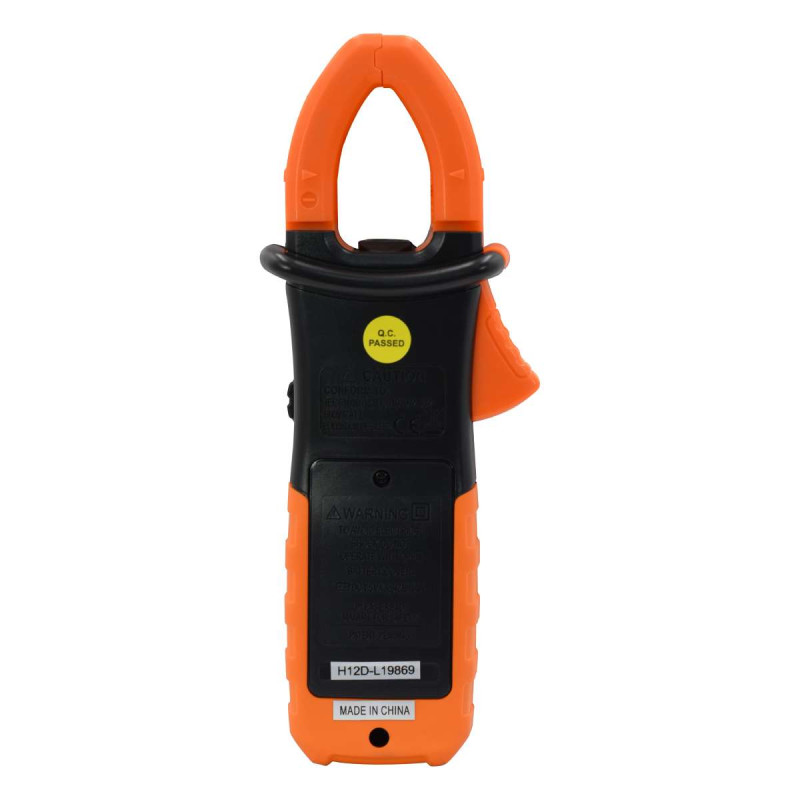

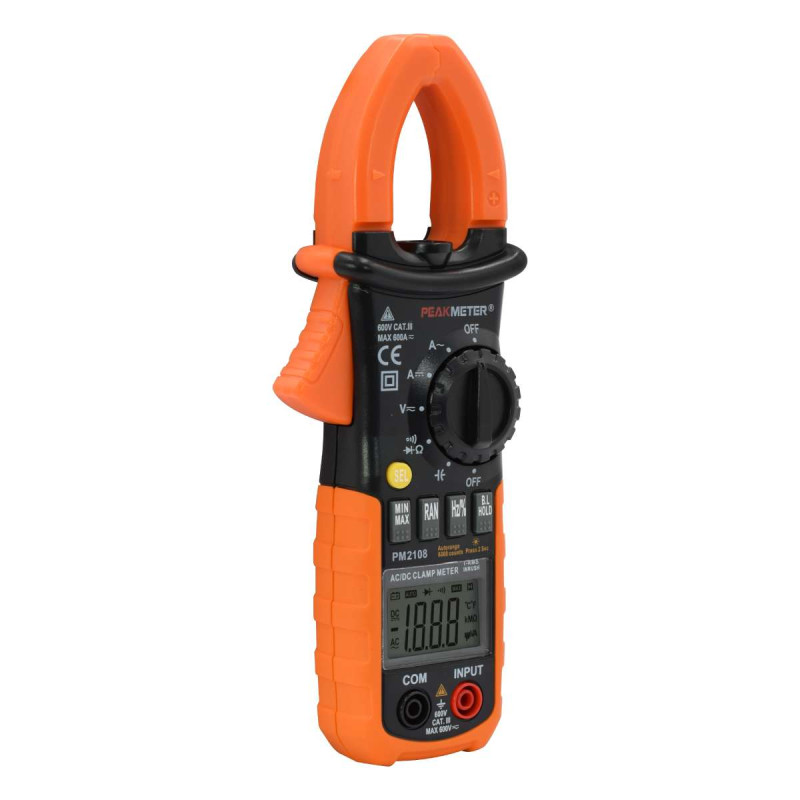

PM2108

Out of stock

Specifications

Downloads

Display	3 5/6 digit LCD (6.000 counts)
Dimensions	H: 205 x W: 71 x D: 35mm
Battery type	3x 1.5V AAA battery
Included accessories	Instruction manual, batteries and test leads.
Jaw diameter	26mm
Features	Auto and manual range, inrush current measurement, data hold, work light, diode test, MAX/MIN measurement, continuity test, backlight

Peakmeter - Manuales y Fichas tecnicas

Peakmeter - Pinza PM2108 - User manual

(Size: 7.3 MB)

Peakmeter - Pinzas PM2108 - Catálogo

(Size: 1.2 MB)

Referencia	Resumen producto	Precio	Cantidad
PM2108	PM2108 DC Voltage range: 660mV/6.6V/66V/600V AC Voltage range: 660mV/6.6V/66V/600V DC Current range: 66A/600A AC Current range: 66A/600A Resistance range: 660Ohm/6.6kOhm/66kOhm/660kOhm/6.6MOhm/66MOhm Capacitance range: 6.6uF/66uF/660uF/6.6mF/66mF Frequency range: 99.99Hz/999.9HZ/9.999kHz Duty cycle: 10 - 95% True RMS: Yes CAT III maximum voltage: 600V	COP289,170
