Ref: PM2019S

Name: PM2019S
Brand: Peakmeter
SKU: PM2019S
Price: 499800 COP
Availability: OutOfStock

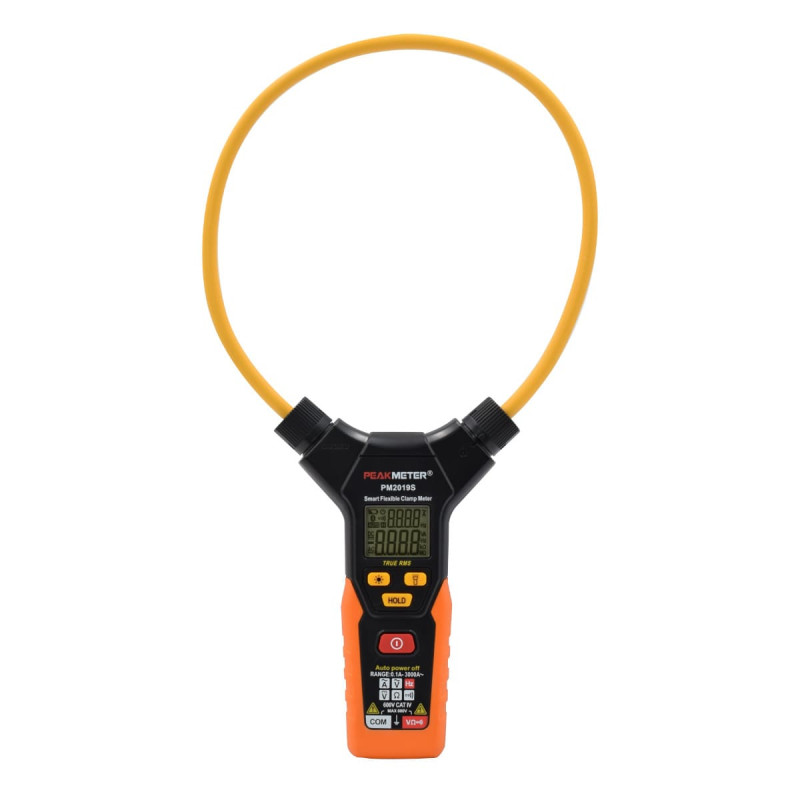

PM2019S

Out of stock

Specifications

Downloads

Display	3 5/6 digit LCD (6000 counts)
Dimensions	H: 324 x W: 180 x D: 28mm
Battery type	3x 1.5V AAA battery
Included accessories	Instruction manual and test leads.
Jaw diameter	150mm
Position error	Refer to below image A: 35mm ±0.5% B: 50mm ±1.5% C: 60mm ±2.0% D: >60mm ±5.0%
Features	Data hold, work light, backlight

Peakmeter - Manuales y Fichas tecnicas

Peakmeter - Pinza PM2019S - User manual

(Size: 3.1 MB)

Peakmeter - Pinzas flexibles PM2019 - Catálogo

(Size: 1.2 MB)

Referencia	Resumen producto	Precio	Cantidad
PM2019S	PM2019S DC Voltage range: 6V/60V/600V AC Voltage range: 6V/60V/600V AC Current range: 60A/600A/3000A Resistance range: 6kOhm/60kOhm/600kOhm/6MOhm Frequency range: 40 - 1000Hz True RMS: Yes CAT III maximum voltage: 1000V CAT IV maximum voltage: 600V	COP499,800
