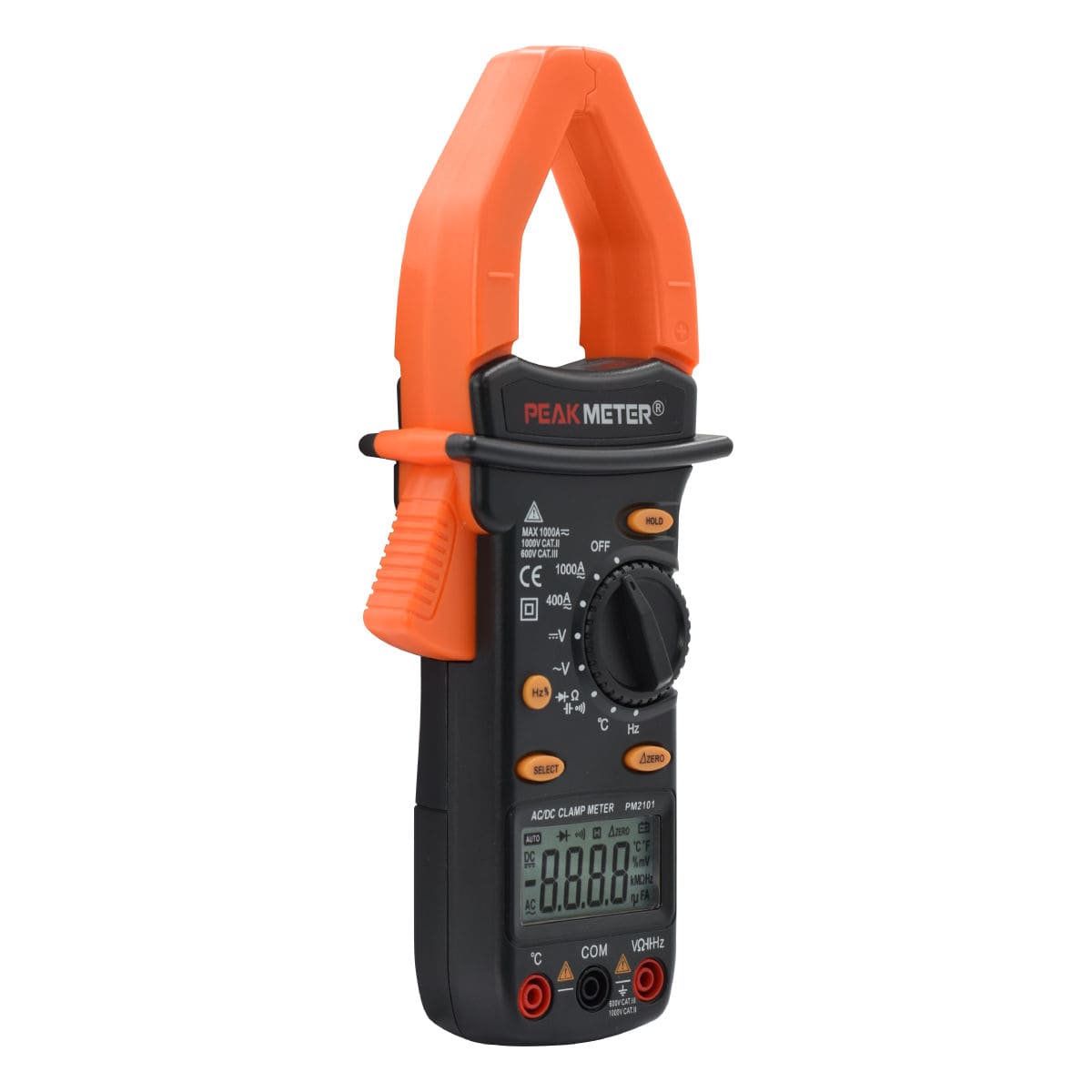

PM2101 digital clamp meter

PM2101 digital clamp meter

PM2101 digital clamp meter

Certifications:

In stock







Display3 3/4 digit LCD (4000 counts)
DimensionsH: 248 x W: 89 x D: 44mm
Battery type1x 9V 6F22 battery
Included accessoriesInstruction manual, cloth bag, K-type thermocouple, batteries and test leads.
Jaw diameter42mm
FeaturesData hold, diode test, continuity test, backlight

Downloads

Peakmeter - Manuales y Fichas tecnicas
pdf
Peakmeter - Pinza PM2101 - Catálogo
(Size: 1 MB)
pdf
Peakmeter - Pinza PM2101 - User manual
(Size: 4 MB)



sku Summary Unit Price Qty
PM2101

PM2101
DC Voltage range: 400mV/4V/40V/400V/1000V
AC Voltage range: 4V/40V/400V/700V
DC Current range: 400A/1000A
AC Current range: 400A/1000A
Resistance range: 400Ohm/4kOhm/40kOhm/400kOhm/4MOhm/40MOhm
Capacitance range: 4nF/40nF/400nF/4uF/40uF
Frequency range: 40Hz/400Hz/4kHz/40kHz/100kHz
Temperature range: -40 to 750°C
True RMS: No
CAT II maximum voltage: 1000V
CAT III maximum voltage: 600V

 COP326,060
Sin Stock
