Ref: SM3K96X11

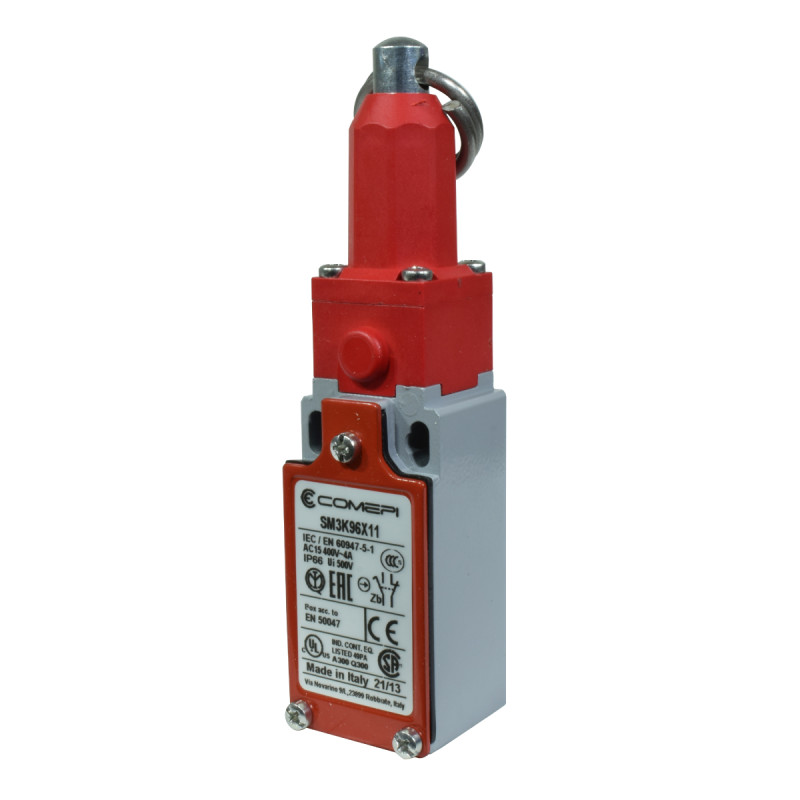

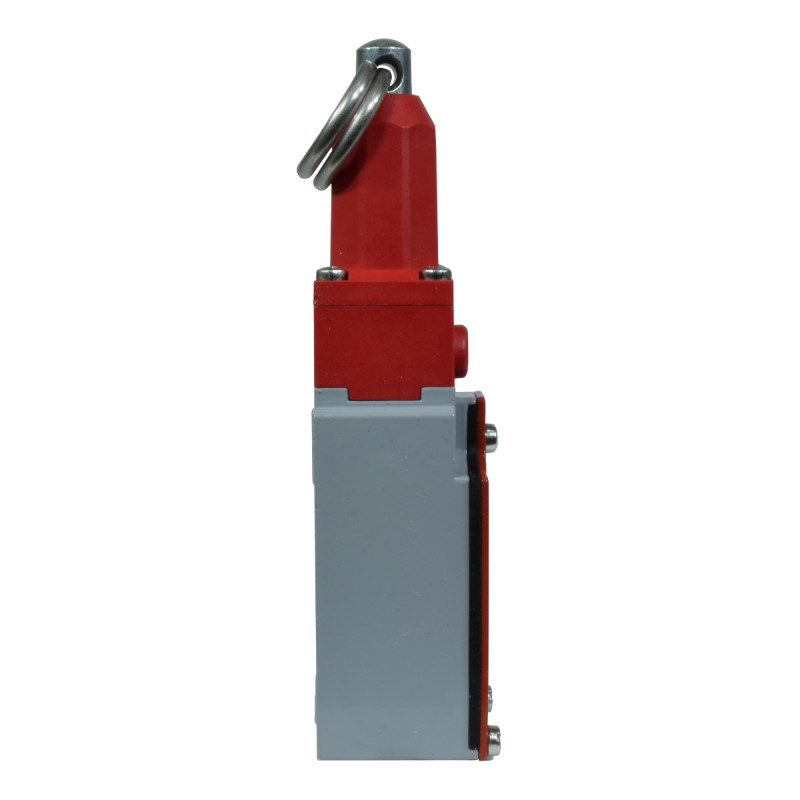

Name: Finales de carrera de seguridad para guaya sin reset serie SM3
Brand: Comepi
SKU: SM3K96X11
Price: 129948 COP
Availability: OutOfStock

SM3K96X11

Certifications:

Out of stock

Specifications

Downloads

Especificaciones

Body material	Aluminum
Maximum rope length	6m in direct connection and 12m with fixing supports
Contact rating	AC: 10A / 24V \| 6A / 120V \| 4A / 230V DC: 6A / 24V \| 0,55A / 120V \| 0,27A / 230V
Cable gland entries	1 x PG11 (cable gland not included)
Conformity	IEC/EN 60947-5-1
Protection degree	IP66

Downloads

Comepi - Manuales y Fichas Técnicas

Comepi - Safety limit switches for rope - Catalogue

(Size: 1.5 MB)

Comepi - SM3K96X11 - Datasheets

(Size: 3.4 MB)

Referencia	Resumen producto	Precio	Cantidad
SM3K96X11	SM3K96X11 Head direction: Straight adjustable Recomended force: 90N Auxiliary contacts: 1NO + 1NC	COP129,948
