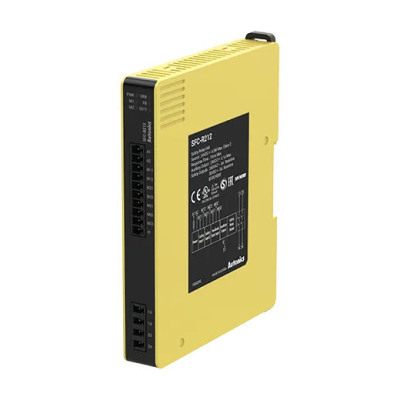

Ref: SFC-R212

Name: SFC-R212
Brand: Autonics
SKU: SFC-R212
Price: 1138116 COP
Availability: InStock

SFC-R212

In stock

Specifications

Downloads

Use	Used together with safety input devices such as curtains, sensors and switches.
Safety outputs	Transistor or relay (depends on reference)
Contacts rating	Relay: 5A 240VAC Transistor: 1A 2 outputs, 0.8A more than 3 outputs
Indication mode	Status LEDs
Mounting	DIN rail
Dimensions	SFC-422: 22.5 x 130 x 115.3mm SCF-R212: 17.5 x 130 x 115.3mm
Protection degree	IP20
Characteristics	Signal: ON 11VDC, OFF 5VDC Conforms with SIL3, SIL CL3 y PLe

Autonics - Manuales y Fichas Técnicas

Autonics - SFC/SFC-R - Instruction Manual

(Size: 800.2 KB)

Referencia	Resumen producto	Precio	Cantidad
SFC-R212	SFC-R212 Power supply: 24VDC Safety output: 2 NO SPST instantaneous Auxiliary output: 1 PNP	COP1,138,116
