Ref: LW30 Series door rotary switches

Name: LW30 Series door rotary switches
Brand: EBCHQ
SKU: Interruptores rotativos para puerta serie LW30
Price: 80111 COP
Availability: OutOfStock

LW30 Series door rotary switches

Certifications:

In stock

Specifications

Downloads

Especificaciones

Operation type	ON - OFF
Rated voltage	440VAC
Rated current	25, 32 or 63A (depend of reference)
Mounting type	Board mounting
Number of poles	3
Extension lenght	150mm
Features	According with IEC 60947-3 standard
Frontal panel	H64 x W64mm (depend of reference)

Downloads

EBCHQ - Manuales y Fichas Técnicas

EBCHQ - LW30 - Datasheet

(Size: 903.2 KB)

sku	Summary	Unit Price	Qty

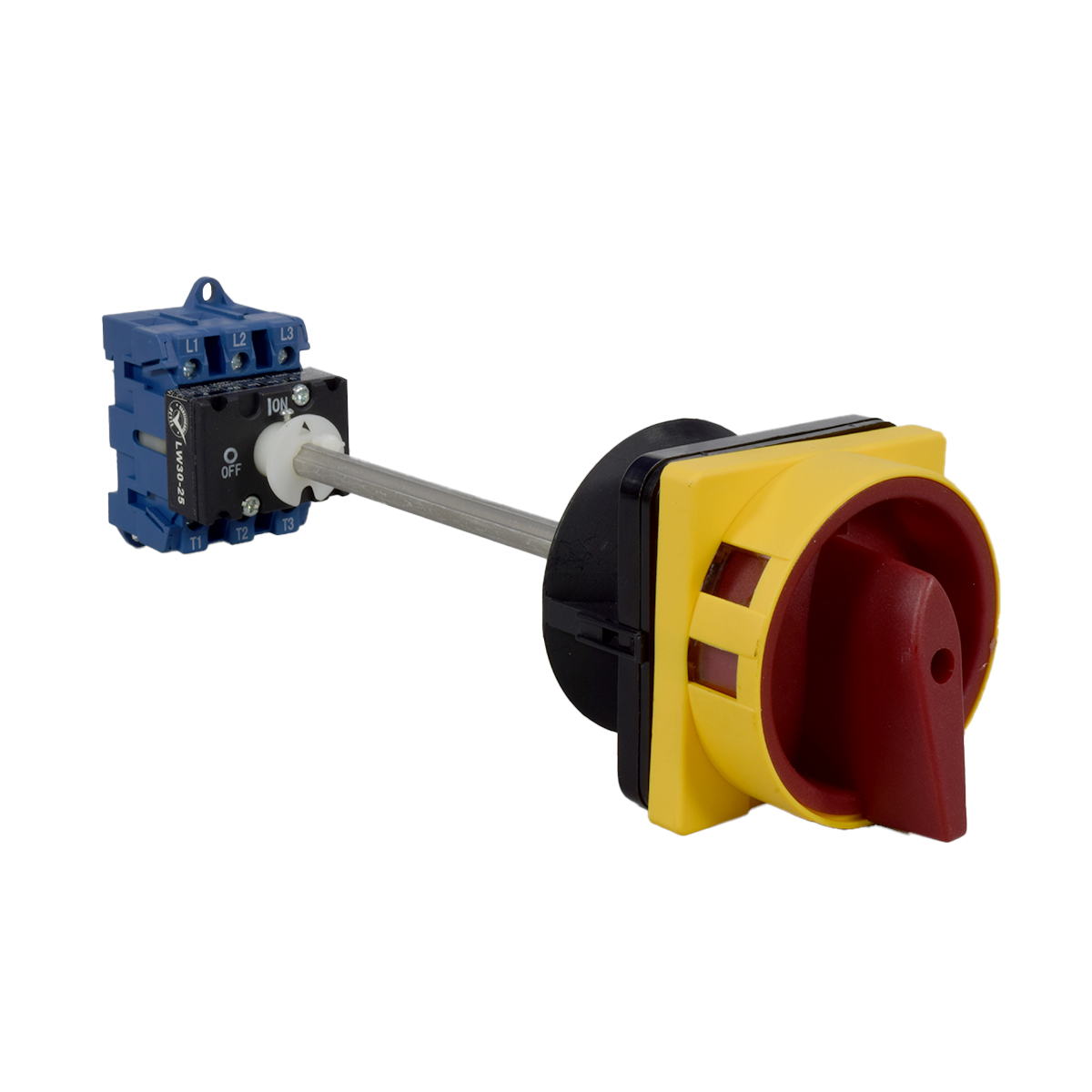

26348	LW30-25/300040 Function: Rotatory switch for doors Operation type: On - Off Rated voltage: 440VAC Rated current: 25A Frontal panel dimensions: H64 x W64 Mounting type: Board door	COP80,111	Sin Stock

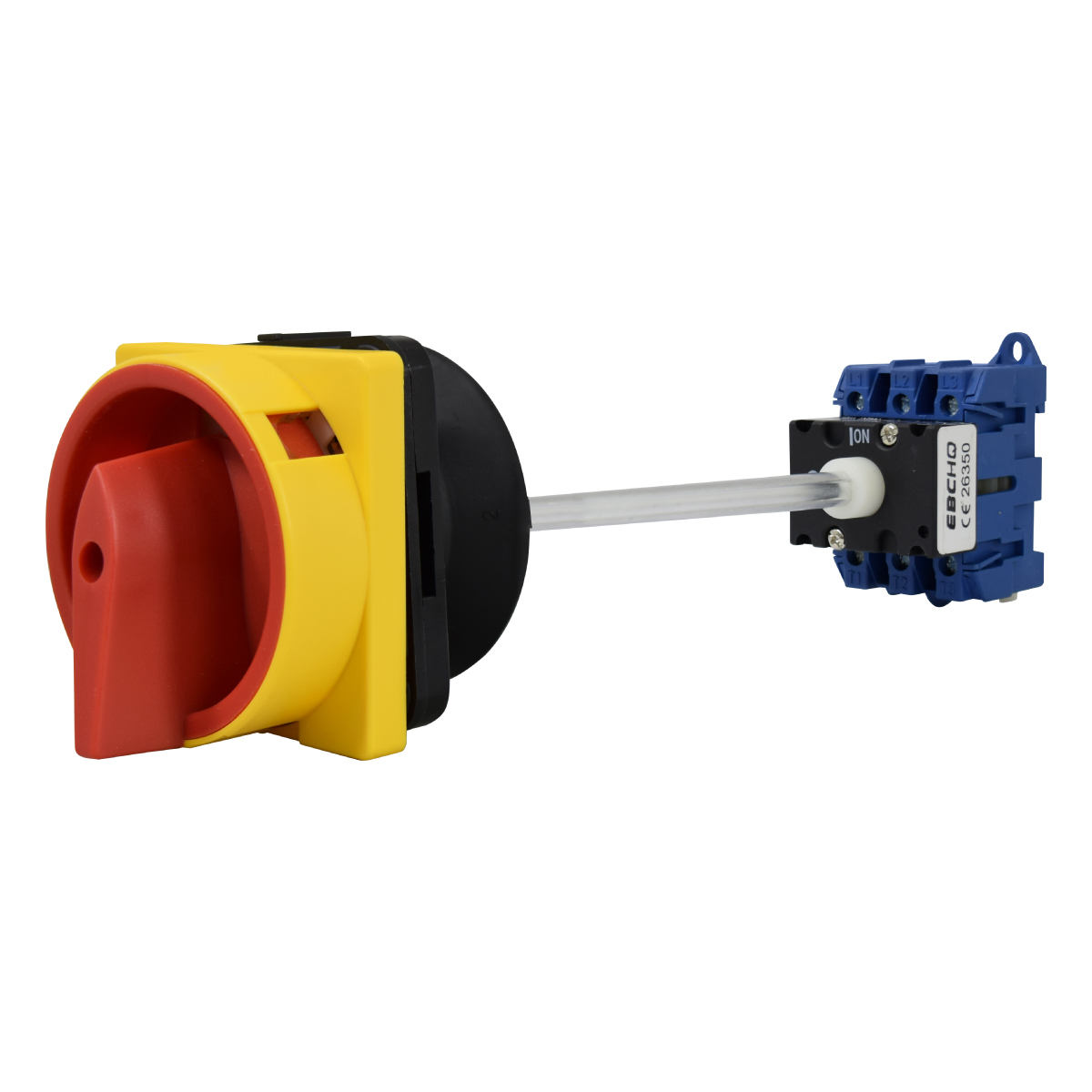

26350	LW30-32/300040 Function: Rotatory switch for doors Operation type: On - Off Rated voltage: 440VAC Rated current: 32A Frontal panel dimensions: H64 x W64 Mounting type: Board door	COP83,252	Sin Stock

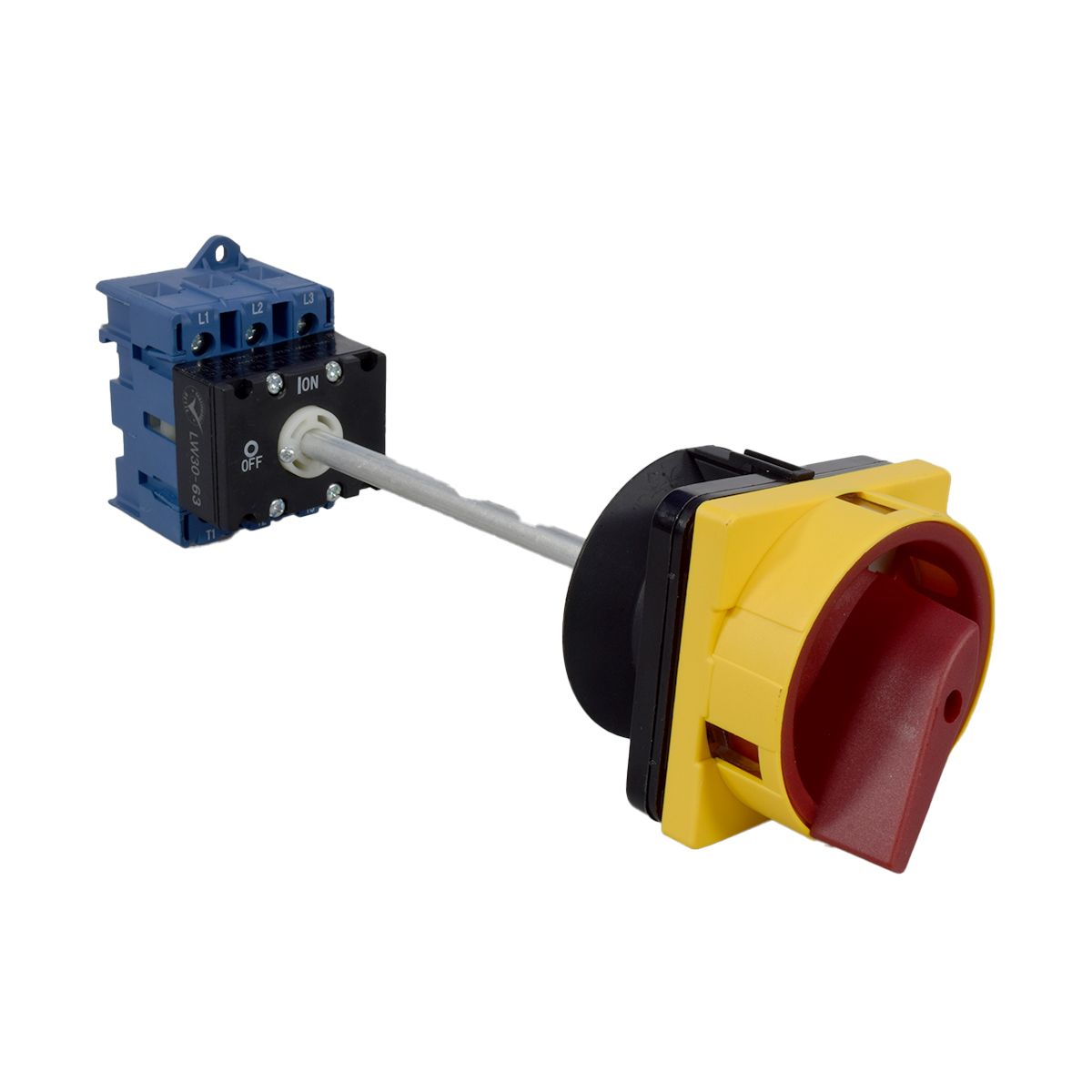

26352	LW30-63/300040 Function: Rotatory switch for doors Operation type: On - Off Rated voltage: 440VAC Rated current: 63A Frontal panel dimensions: H64 x W64 Mounting type: Board door	COP125,664	Sin Stock
