Ref: 208323

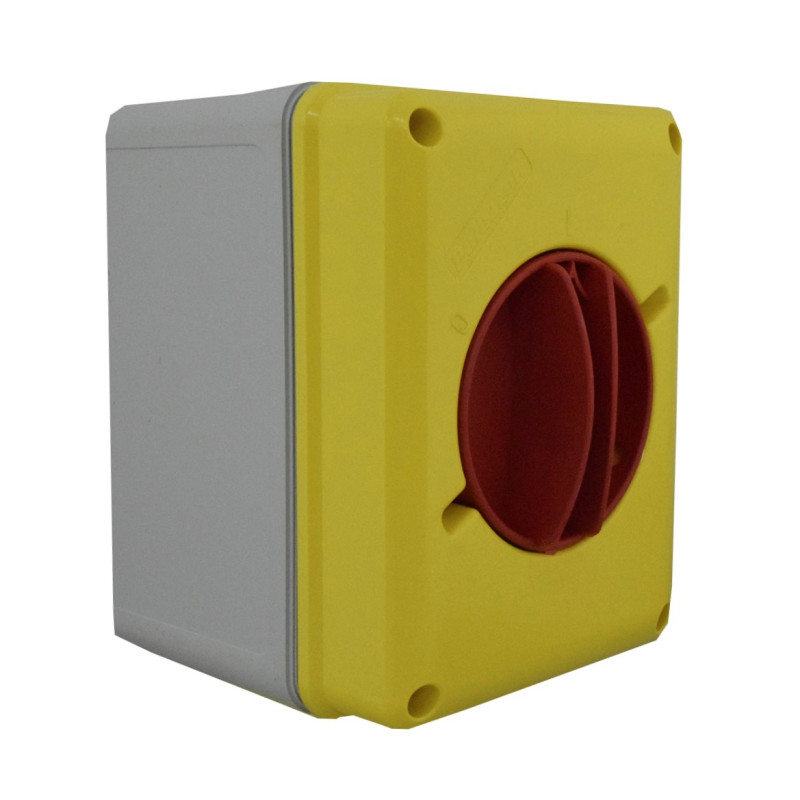

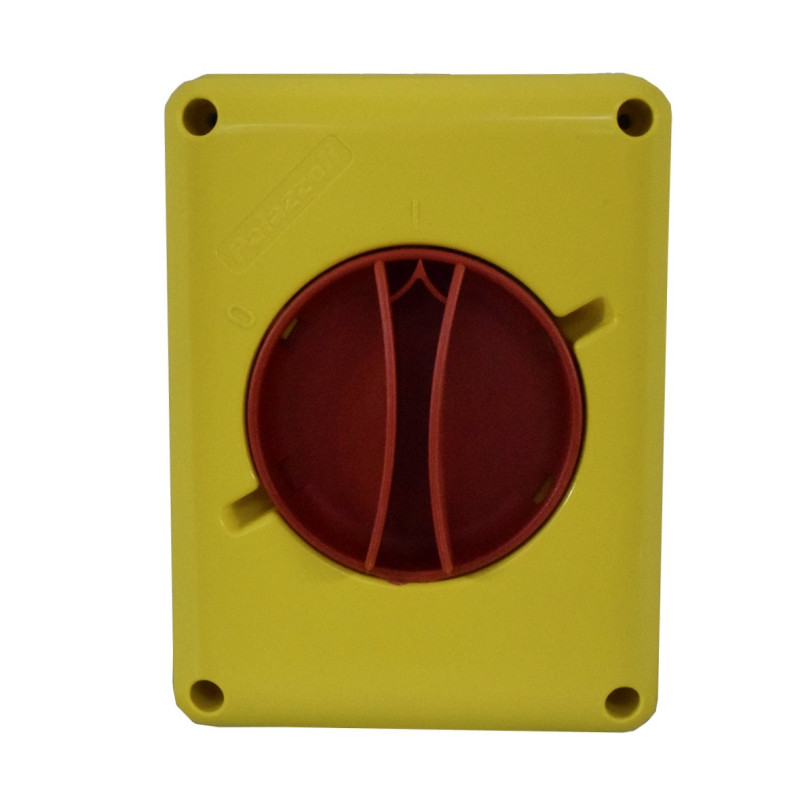

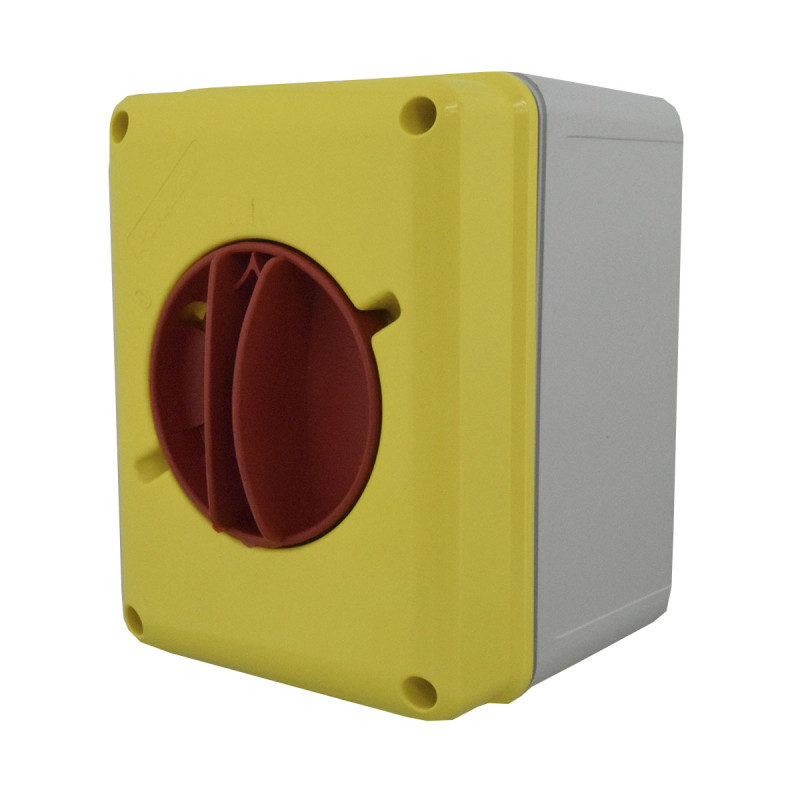

Name: Interruptores de seguridad serie CAM-ZC
Brand: Palazzoli
SKU: 208323
Price: 186247 COP
Availability: OutOfStock

208323

Out of stock

Specifications

Downloads

Operation type	ON - OFF
Rated voltage	500VAC or 690VAC (depend of model)
Rated current	32, 63 or 100A (depend of model)
Mounting type	Surface mounting
Number of poles	3 or 4 (depend of model)
Features	Material: Thermoplastic Heat resistance: 960 ° C (Switch) 650 ° C (Surround) Impact resistance: IK08 Working temperature: -25 ° C to 60 ° C Meets Standard: IEC 60947-3
Protection	IP65

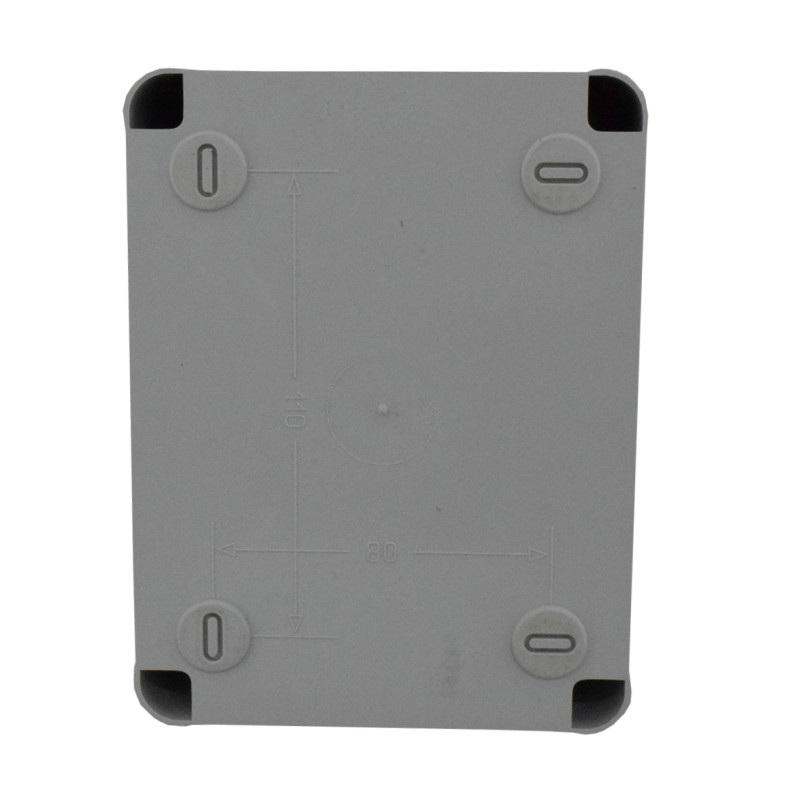

Dimensions	Ref. 32A (H158 x W121 x D126) Ref. 63 and 100A (H250 x W158 x D139)

Palazzoli - Manuales y Fichas Técnicas

Palazzoli - 208323 - Datasheet

(Size: 288.4 KB)

Palazzoli - CAM-ZC - Esp - Catalogue

(Size: 489.9 KB)

Referencia	Resumen producto	Precio	Cantidad
208323	208323 Series: CAM-ZC Function: Safety switches Operation type: On - Off Number of poles: 3 Rated voltage: 500VAC Rated current: 32A Coating material: Thermoplastic box Frontal panel dimensions: H158 x W121 x D126 Mounting type: Surface	COP186,247
