SFC series safety controlles

SFC series safety controlles

Certifications:

In stock









UseUsed together with safety input devices such as curtains, sensors and switches.
Safety outputsTransistor or relay (depends on reference)
Contacts ratingRelay: 5A 240VAC
Transistor: 1A 2 outputs, 0.8A more than 3 outputs
Indication modeStatus LEDs
MountingDIN rail
DimensionsSFC-422: 22.5 x 130 x 115.3mm
SCF-R212: 17.5 x 130 x 115.3mm
Protection degreeIP20
CharacteristicsSignal: ON 11VDC, OFF 5VDC
Conforms with SIL3, SIL CL3 y PLe

Downloads

Autonics - Manuales y Fichas Técnicas
pdf
Autonics - SFC/SFC-R - Instruction Manual
(Size: 800.2 KB)



sku Summary Unit Price Qty

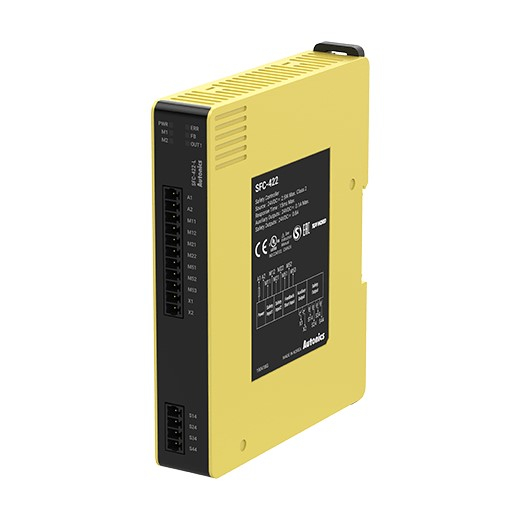

SFC-422

SFC-422
Power supply: 24VDC
Safety output: 4 P channel FET instantaneous
Auxiliary output: 2 PNP

 COP1,692,180
Sin Stock

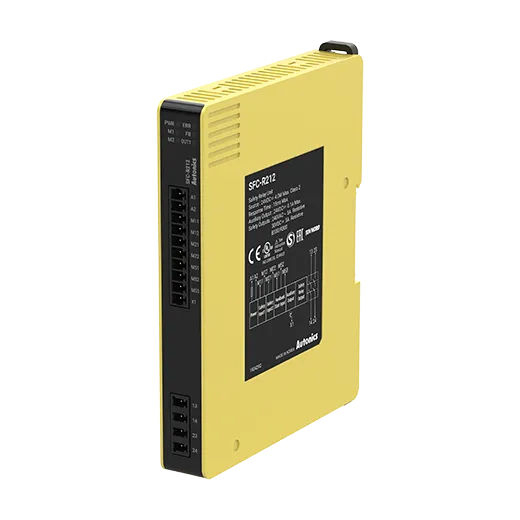

SFC-R212

SFC-R212
Power supply: 24VDC
Safety output: 2 NO SPST instantaneous
Auxiliary output: 1 PNP

 COP1,138,116
Sin Stock
