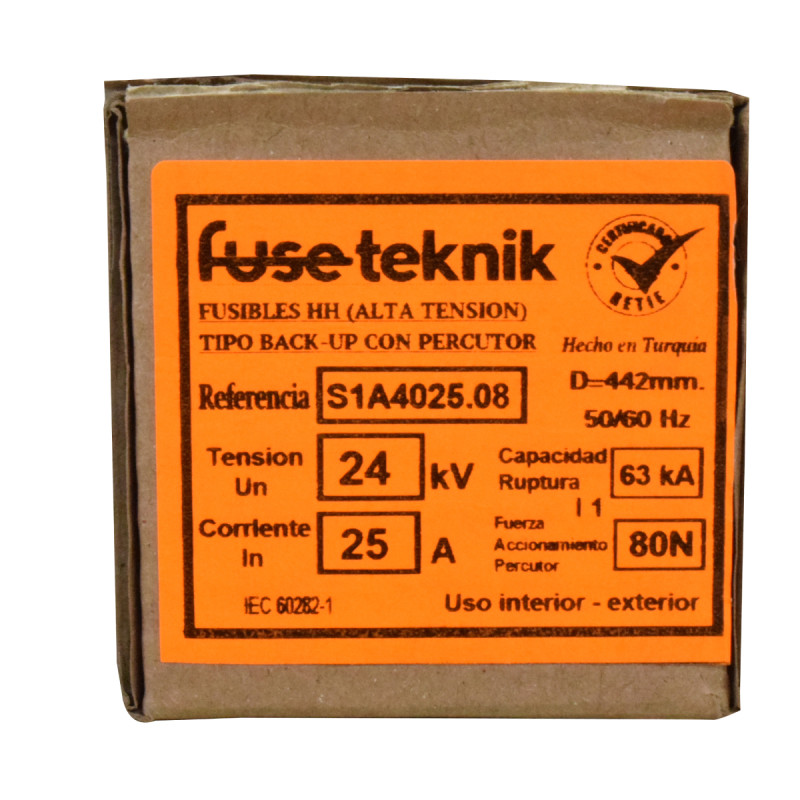

Ref: S1A4025.08

Name: Fusibles de media tensión HH
Brand: fuseteknik
SKU: S1A4025.08
Price: 346290 COP
Availability: OutOfStock

S1A4025.08

Out of stock

Specifications

Downloads

Rated voltage	24kV o 36kV
Breaking capacity	63kA or 40kA
Rated current	From 10 to 200A depend of reference
Features	Insertion diameter: 45mm - Maximum firing pin length: 35mm force 80N. Complies: According to IEC 60282-1 standard, DIN 43625, VDE 0670/4
Manufactured material	Ceramic body, fusible element (spiral) in silver surrounded by quartz sand.
Dimensions	63kA fuses Length 508mm 40kA fuses Length 603mm

FuseTeknik - Manuales y Fichas Técnicas

Fuseteknik - S1A4025.08 - Datasheets

(Size: 150 KB)

Referencia	Resumen producto	Precio	Cantidad
S1A4025.08	S1A4025.08 Nominal voltage: 24kV Breaking capacity: 63kA Nominal current: 25A Breaking current: 94A	COP346,290
