Ref: PV4759

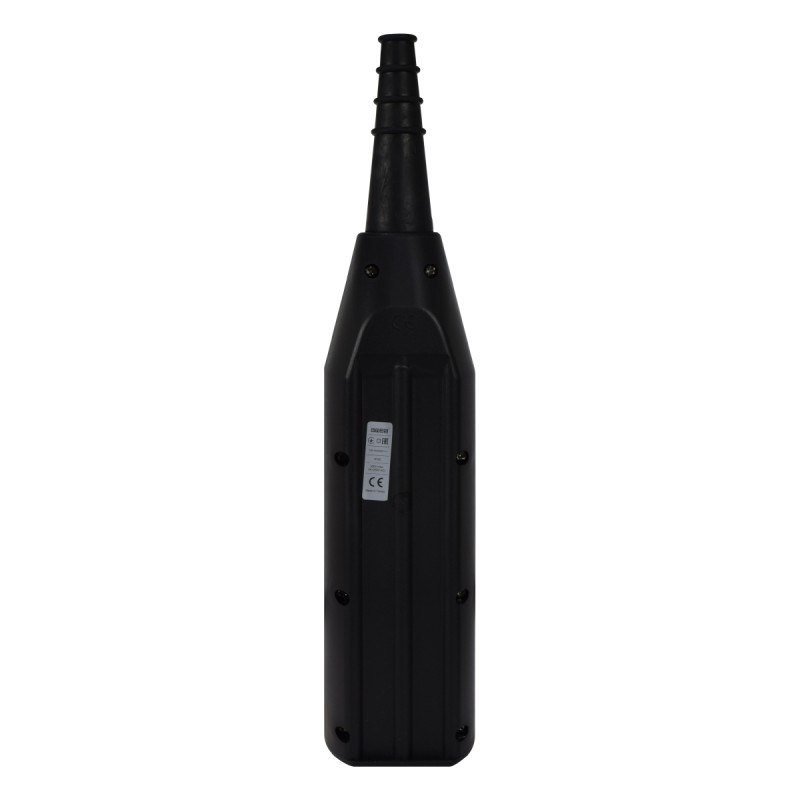

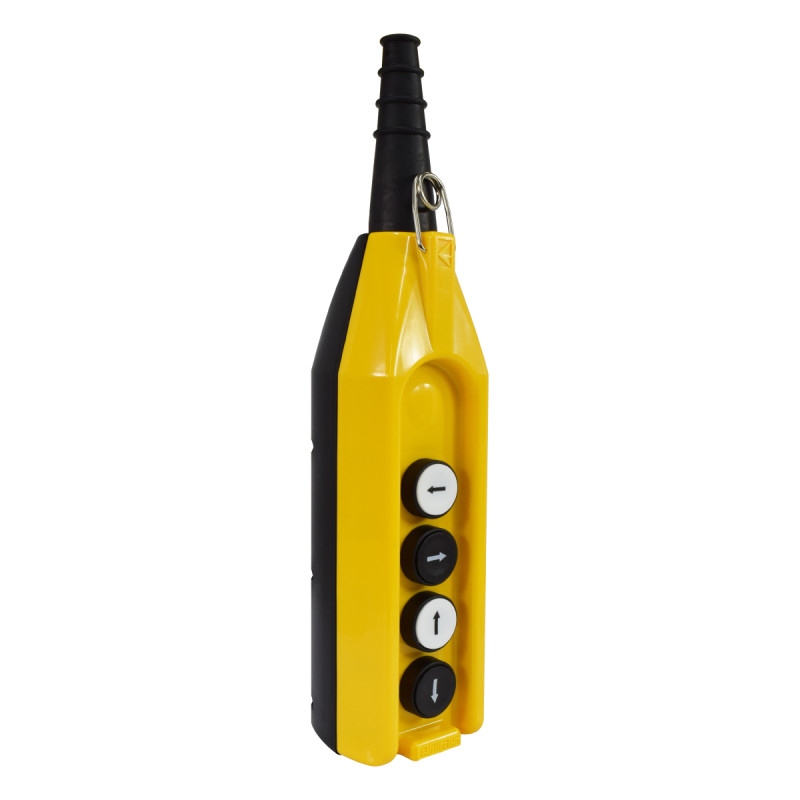

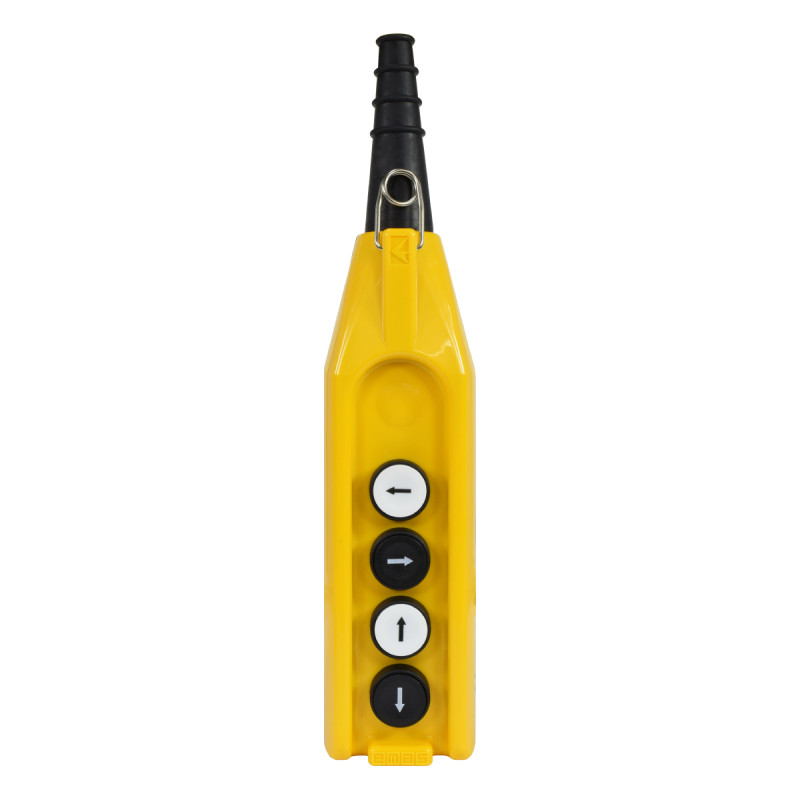

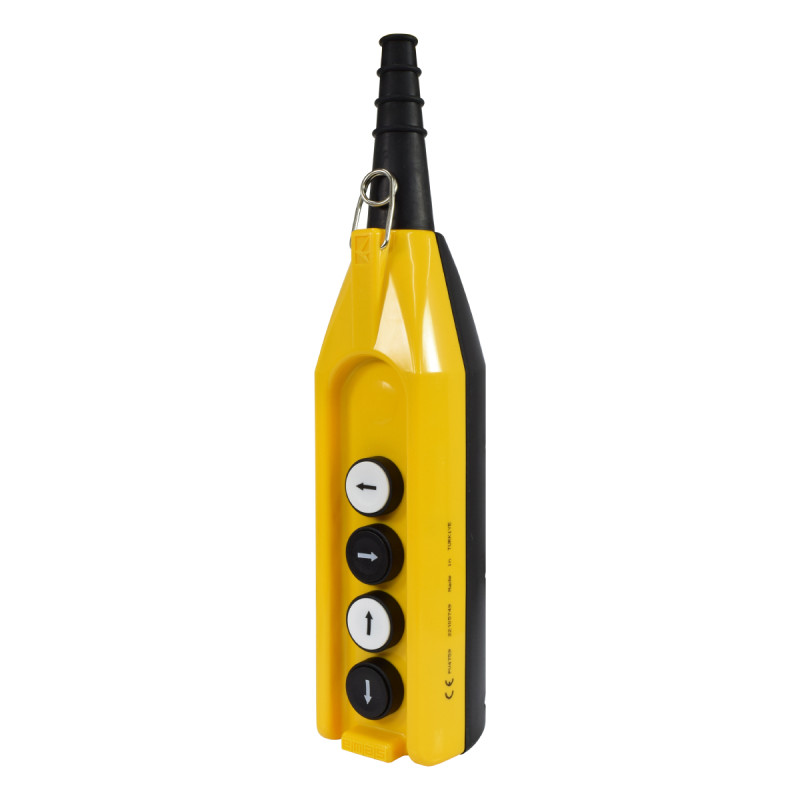

Name: Estaciones de mando aéreas serie PV
Brand: EMAS
SKU: PV4759
Price: 181356 COP
Availability: OutOfStock

PV4759

Out of stock

Specifications

Video

Downloads

Operation type	Functions according to reference: - Up / Down - Up / Off / Down - Stop / Up / Down - Up / Down / East / West - Up / Down / Right / Left - Off / Stop / Up / Down - Stop / Left / Right / Up / Down - Up / Down / East / West / North / South - CCW / CW / Left / Right / Up / Down - Stop / Off / Left / Right / Up / Down
Contact type	Contact configuration according to the type of operation
Capacity of contact block	230VAC / 4A
Protection	IP65
Dimensions	PV2 (H283 x W75 x D66mm) PV3 (H284 x W76 x D67mm) PV4 (H350 x W75 x D67mm) PV5 (H350 x W75 x D67mm) PV6 (H416 x W91 x D70mm)
Temperature of work	-15 to 80°C

Emas - Manuales y Fichas Técnicas

Emas - PV4759 - Datasheets

(Size: 321.5 KB)

Referencia	Resumen producto	Precio	Cantidad
PV4759	PV4759 Function: 2 white + 2 black push buttons command stations Operation type: Up - down - left - right Rated voltage: 230VAC Rated current: 4A Auxiliary contacts: 4NO + 4NO Protection degree: IP65	COP181,356
