Ref: 25759

Name: Estaciones de mando aéreas serie LAY5-EP
Brand: EBCHQ
SKU: 25759
Price: 72114 COP
Availability: OutOfStock

25759

Out of stock

Specifications

Downloads

Operation type	Functions according to reference: - Up / Down - Up / Off / Down - Up / Down / Right / Left - CCW / CW / Left / Right / Up / Down - Stop / Up / Down - Off / Stop / Up / Down - Stop / Left / Right / Up / Down - Stop / Off / Left / Right / Up / Down
Contact type	Contact configuration according to the type of operation
Capacity of contact block	660VAC/10A
Protection	IP54
Temperature of work	PG13.5 included According with standard IEC/EN 60947-5-1

EBCHQ - Manuales y Fichas Técnicas

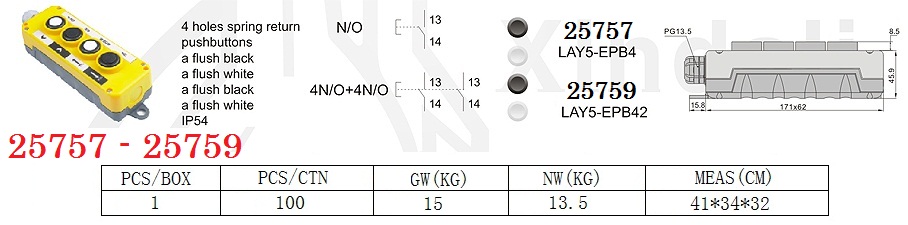

EBCHQ - 25757_ 25759 - Datasheets

(Size: 65.3 KB)

Referencia	Resumen producto	Precio	Cantidad
25759	LAY5-EPB42 Function: 2 white + 2 black push buttons command stations Operation type: Up - down - left - right Rated voltage: 660VAC Rated current: 10A Auxiliary contacts: 4NO + 4NO Protection degree: IP54	COP72,114
