LAY5-EP series aerial control stations

LAY5-EP series aerial control stations

Certifications:

In stock






Operation typeFunctions according to reference:
- Up / Down
- Up / Off / Down
- Up / Down / Right / Left
- CCW / CW / Left / Right / Up / Down
- Stop / Up / Down
- Off / Stop / Up / Down
- Stop / Left / Right / Up / Down
- Stop / Off / Left / Right / Up / Down
Contact typeContact configuration according to the type of operation
Capacity of contact block660VAC/10A
ProtectionIP54
Temperature of workPG13.5 included
According with standard IEC/EN 60947-5-1

Downloads

EBCHQ - Manuales y Fichas Técnicas
pdf
Ebchq - Estaciones Serie LAY5-EP
(Size: 281.1 KB)



sku Summary Unit Price Qty

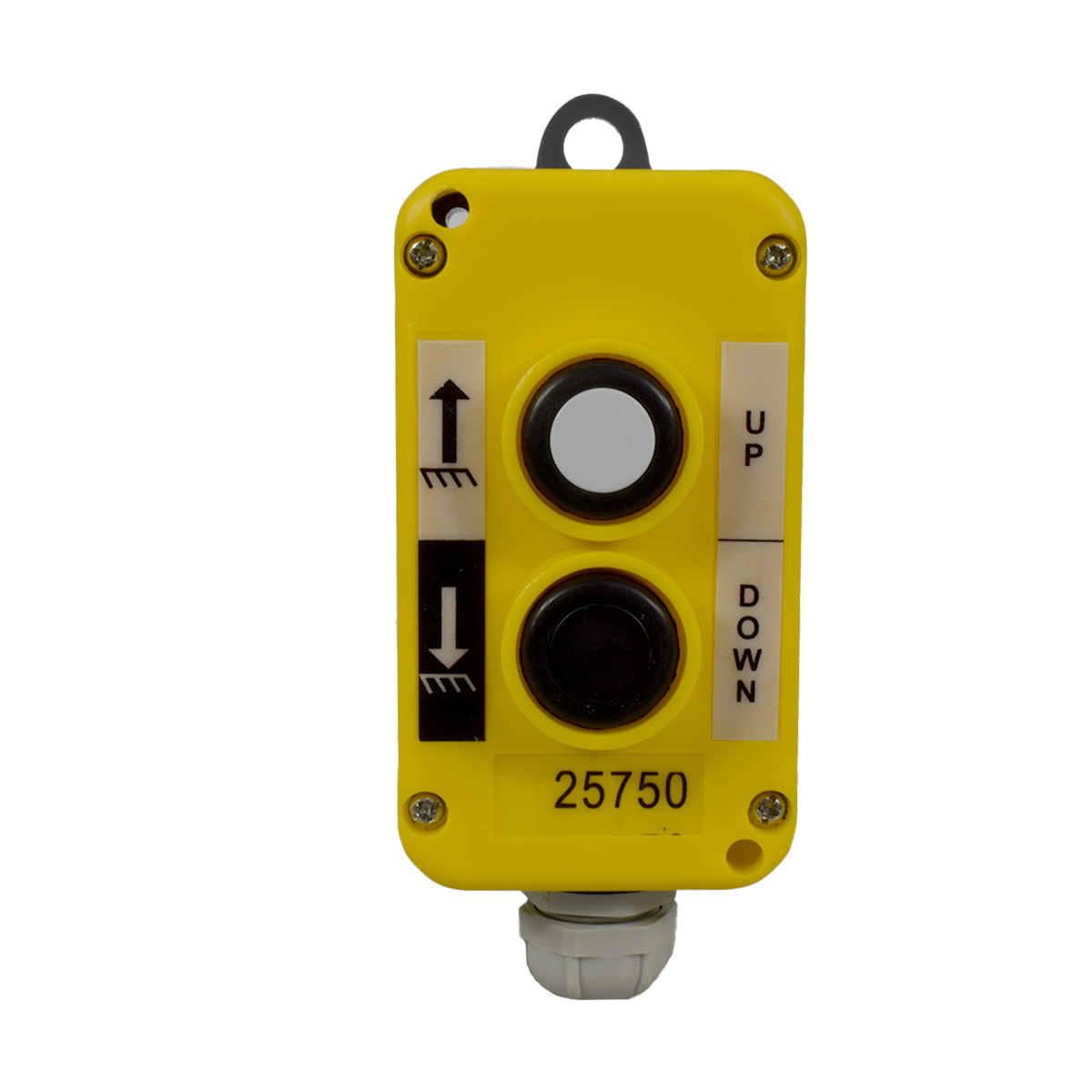

25750

LAY5-EPB2
Function: 1 white + 1 black push buttons command stations
Operation type: Up - down
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 2NO
Protection degree: IP54

 COP35,700
Sin Stock

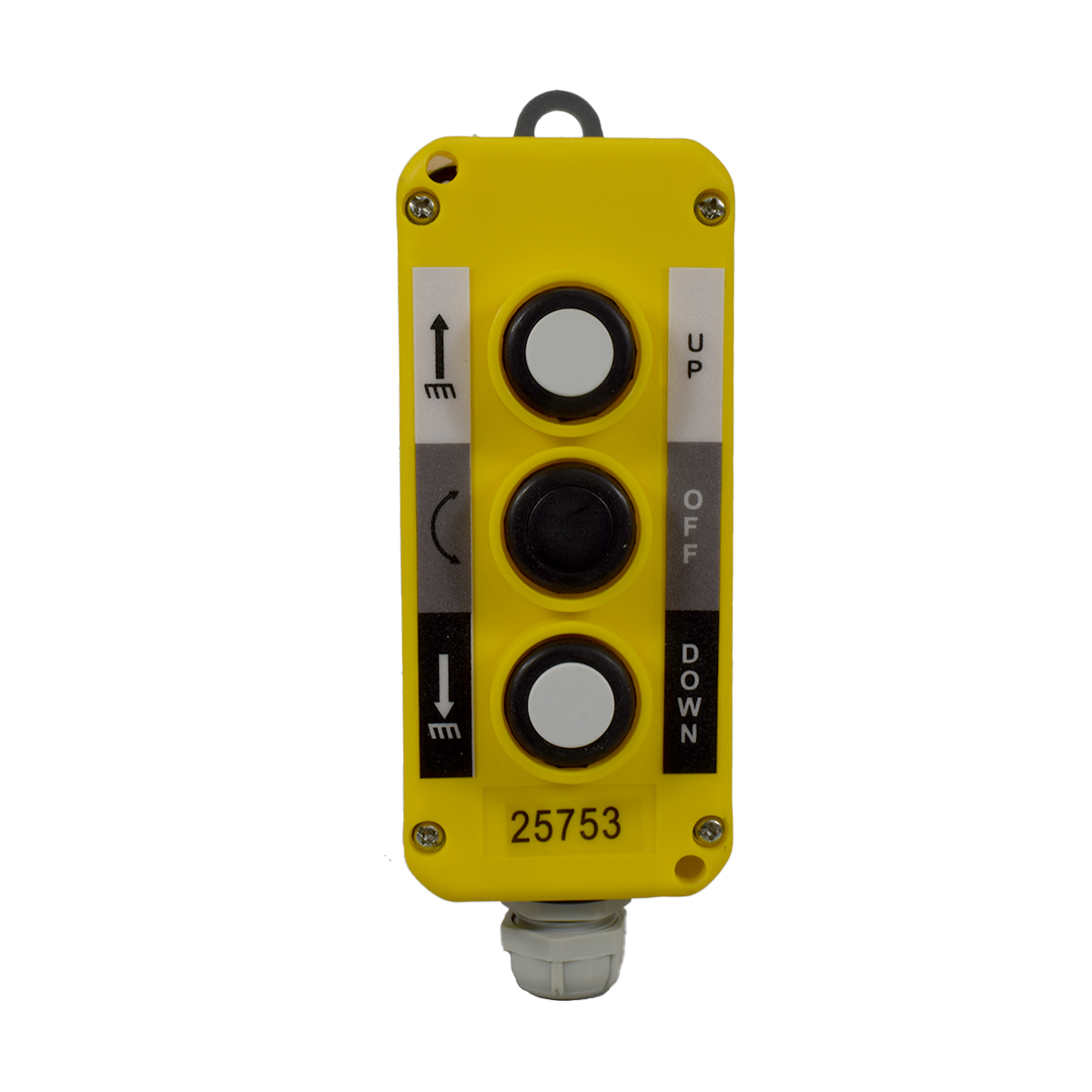

25753

LAY5-EPB3
Function: 2 white + 1 black push buttons command stations
Operation type: Up - off - down
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 3NO
Protection degree: IP54

 COP46,410
Sin Stock

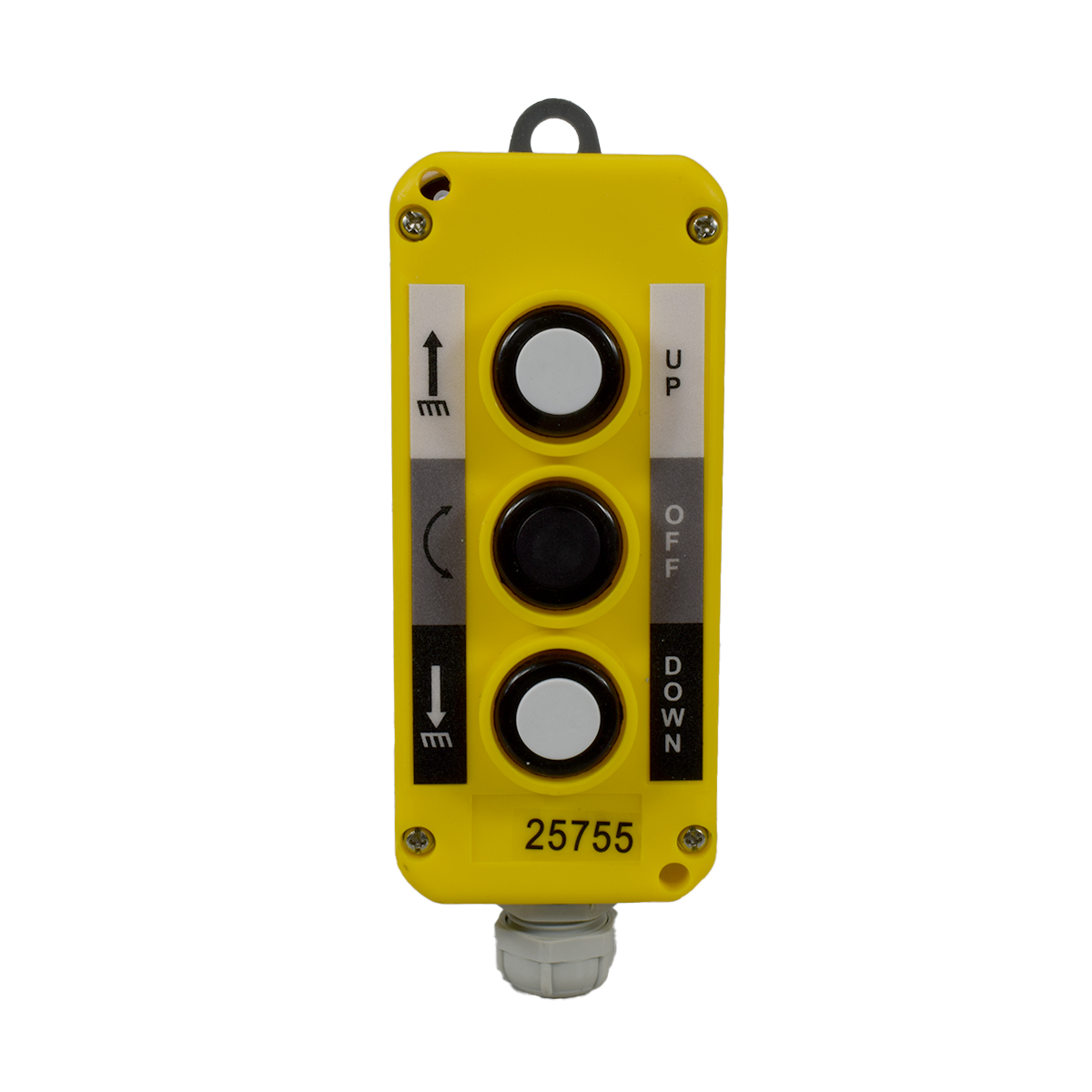

25755

LAY5-EPB32
Function: 2 white + 1 black push buttons command stations
Operation type: Up - off - down
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 3NO + 3NO
Protection degree: IP54

 COP58,548
Sin Stock

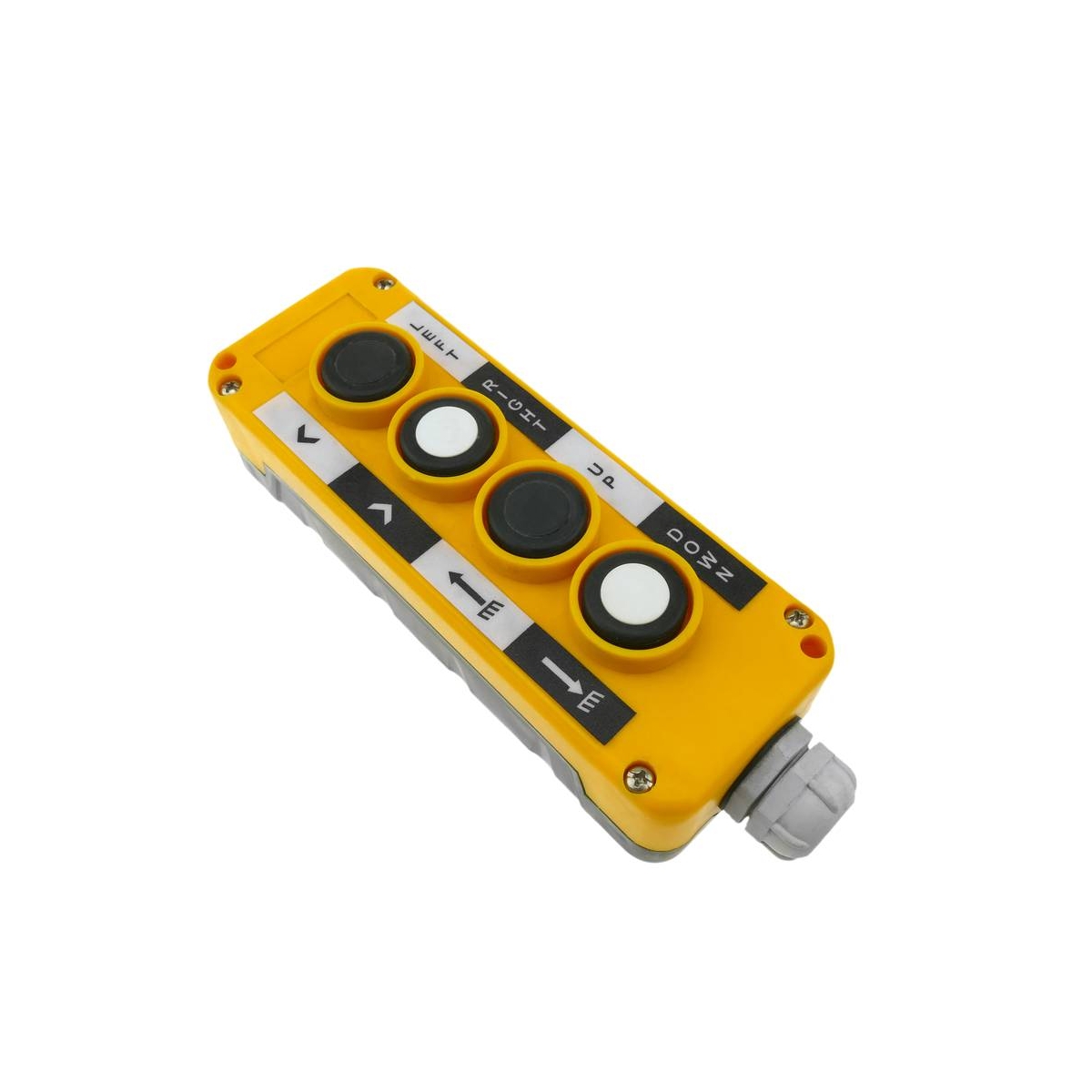

25757

LAY5-EPB4
Function: 2 white + 2 black push buttons command stations
Operation type: Up - down - left - right
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 4NO
Protection degree: IP54

 COP57,120
Sin Stock

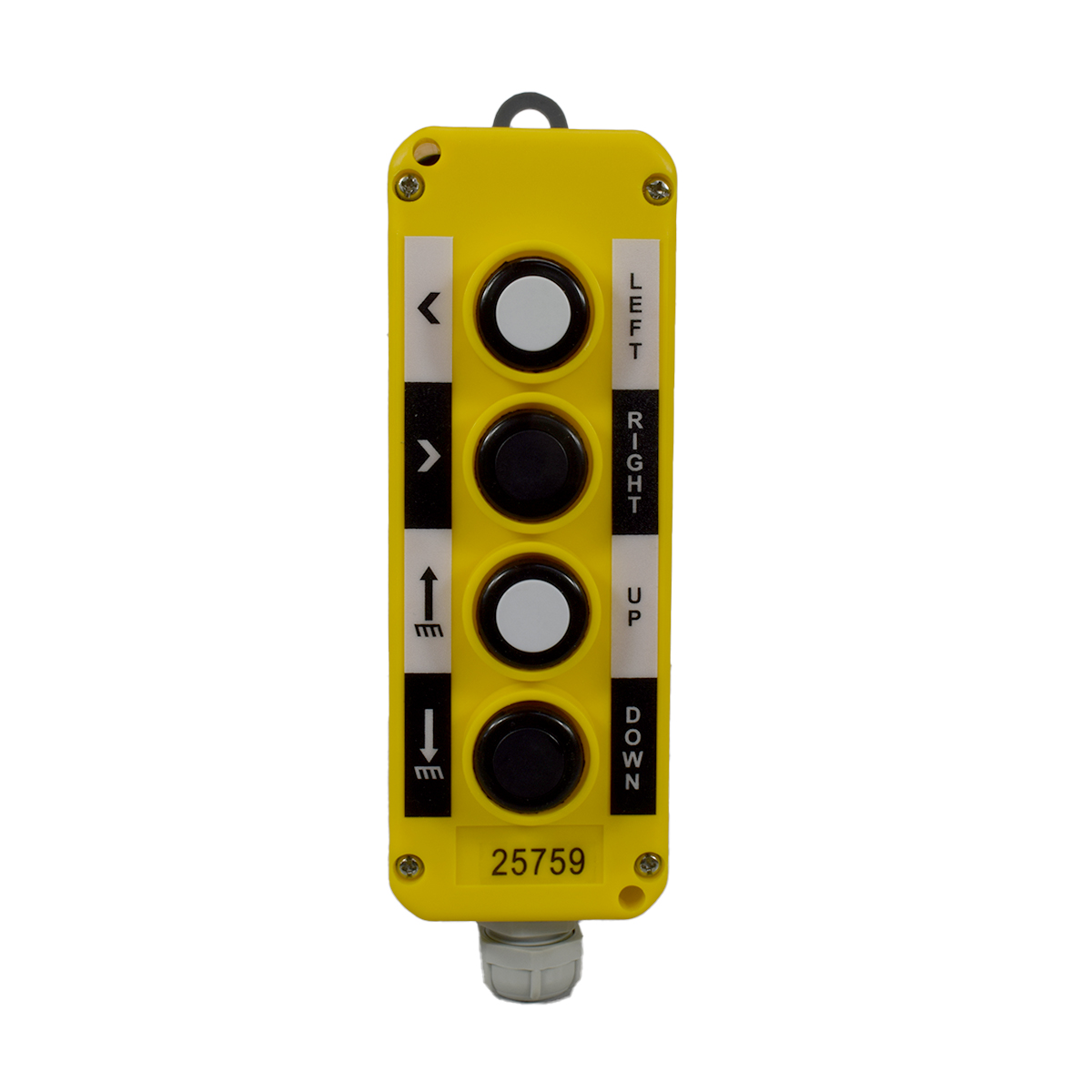

25759

LAY5-EPB42
Function: 2 white + 2 black push buttons command stations
Operation type: Up - down - left - right
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 4NO + 4NO
Protection degree: IP54

 COP72,114
Sin Stock

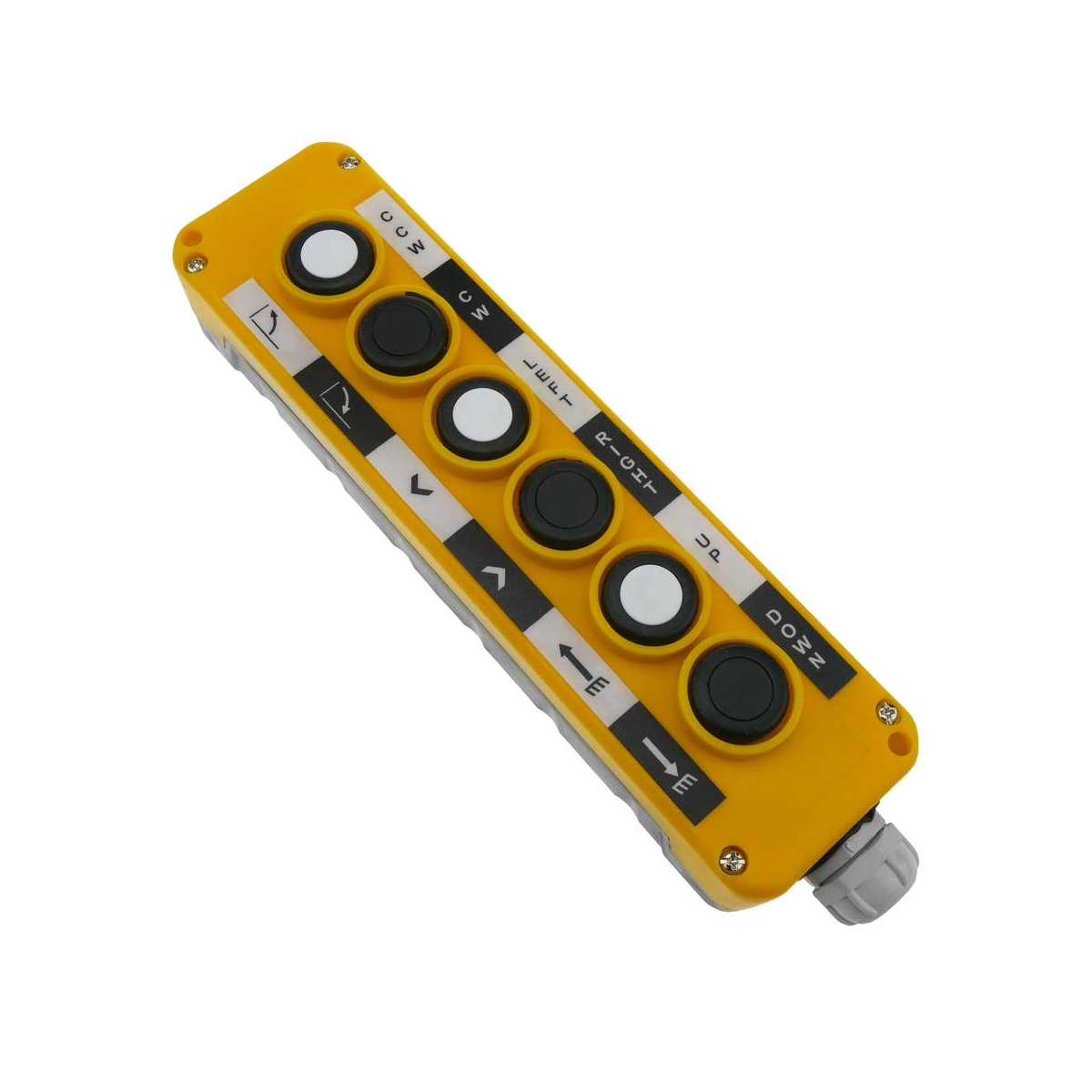

25761

LAY5-EPB6
Function: 3 white + 3 black push buttons command stations
Operation type: CCW - CW - up - down - left - right
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 6NO
Protection degree: IP54

 COP84,966
Sin Stock

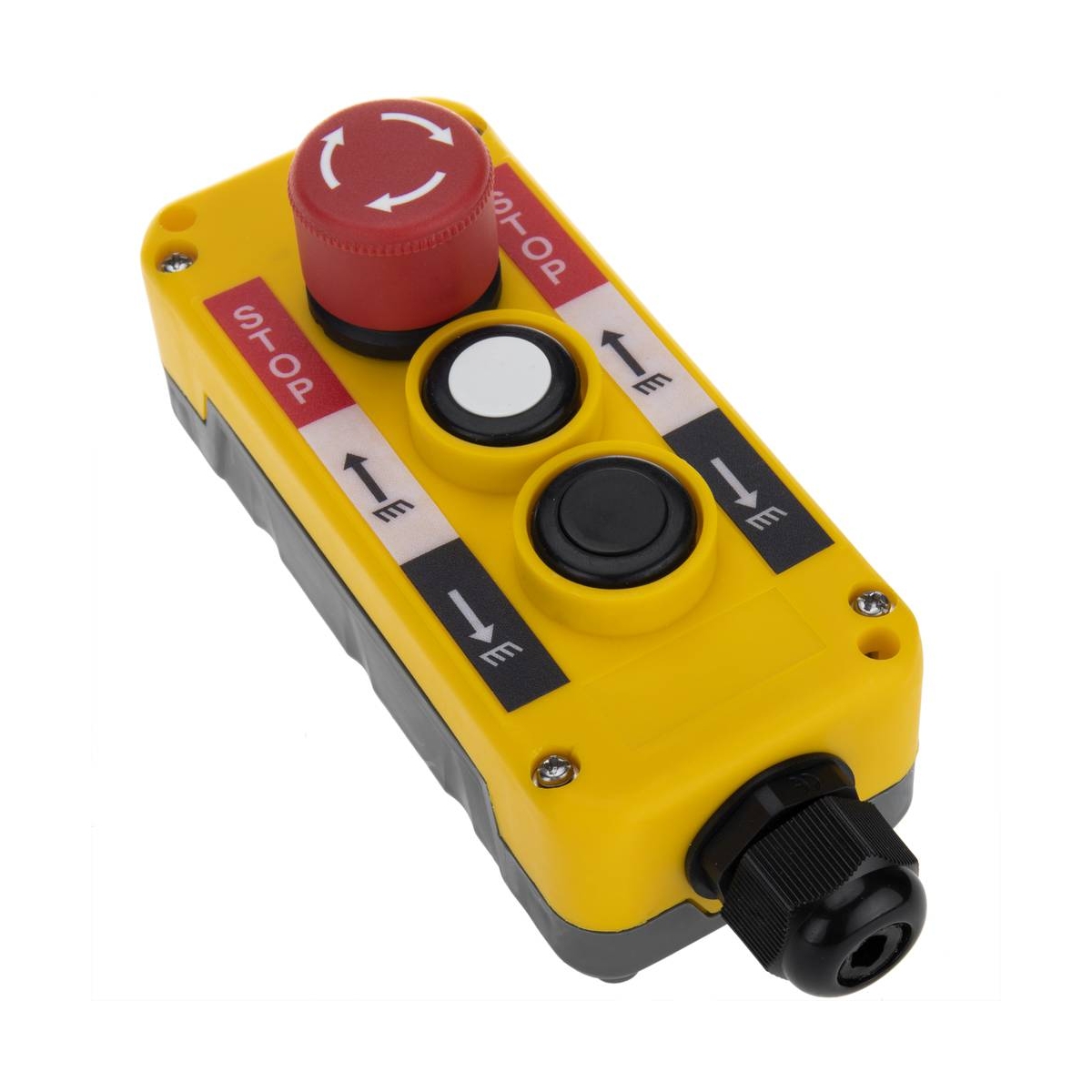

25774

LAY5-EPBS3
Function: 1 white + 1 black + 1 emergency push buttons command stations
Operation type: Stop - Up - Down
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 2NO + 1NC
Protection degree: IP54

 COP49,980
Sin Stock

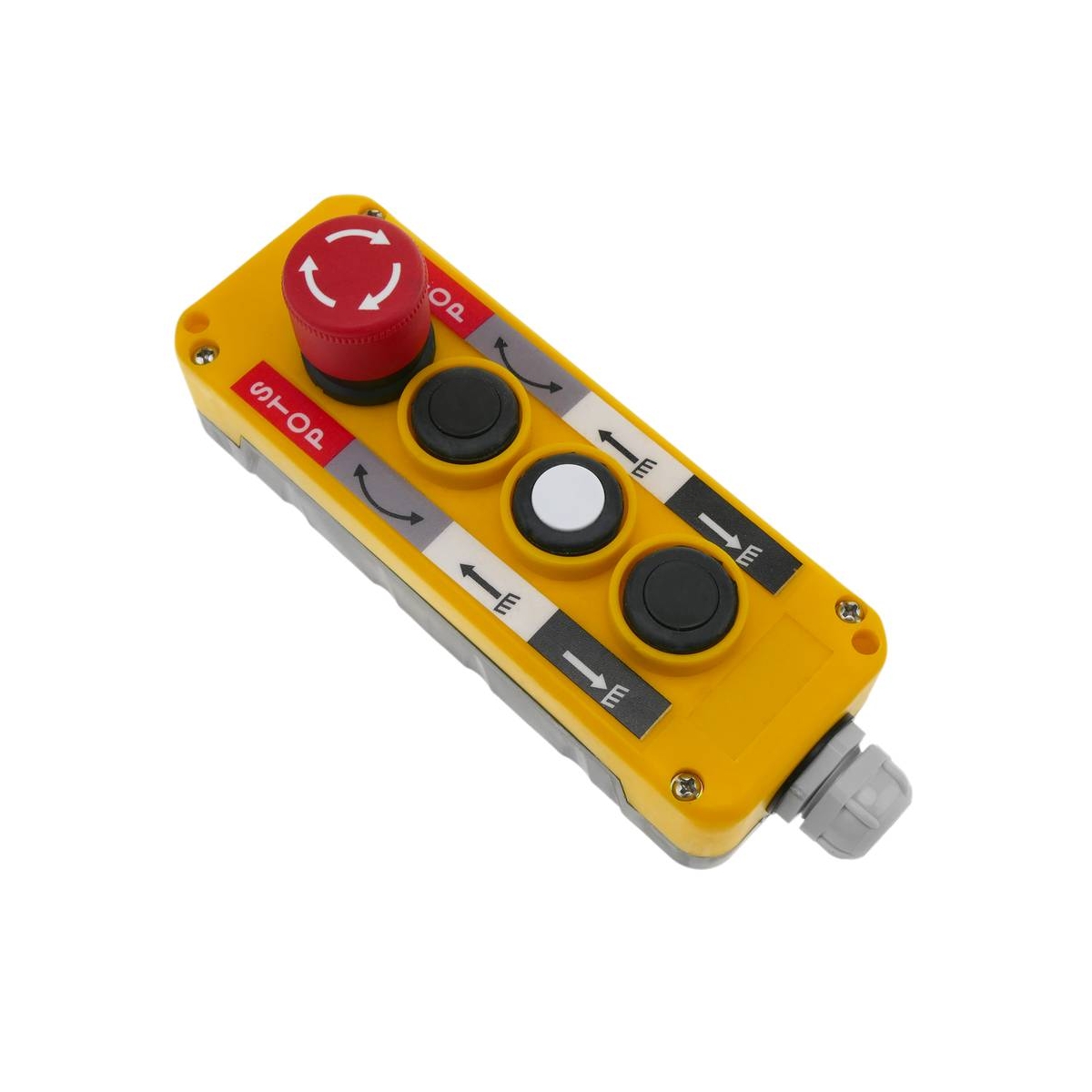

25776

LAY5-EPBS4
Function: 1 white + 2 black + 1 emergency push buttons command stations
Operation type: Off - stop -up - down
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 3NO + 1NC
Protection degree: IP54

 COP60,690
Sin Stock

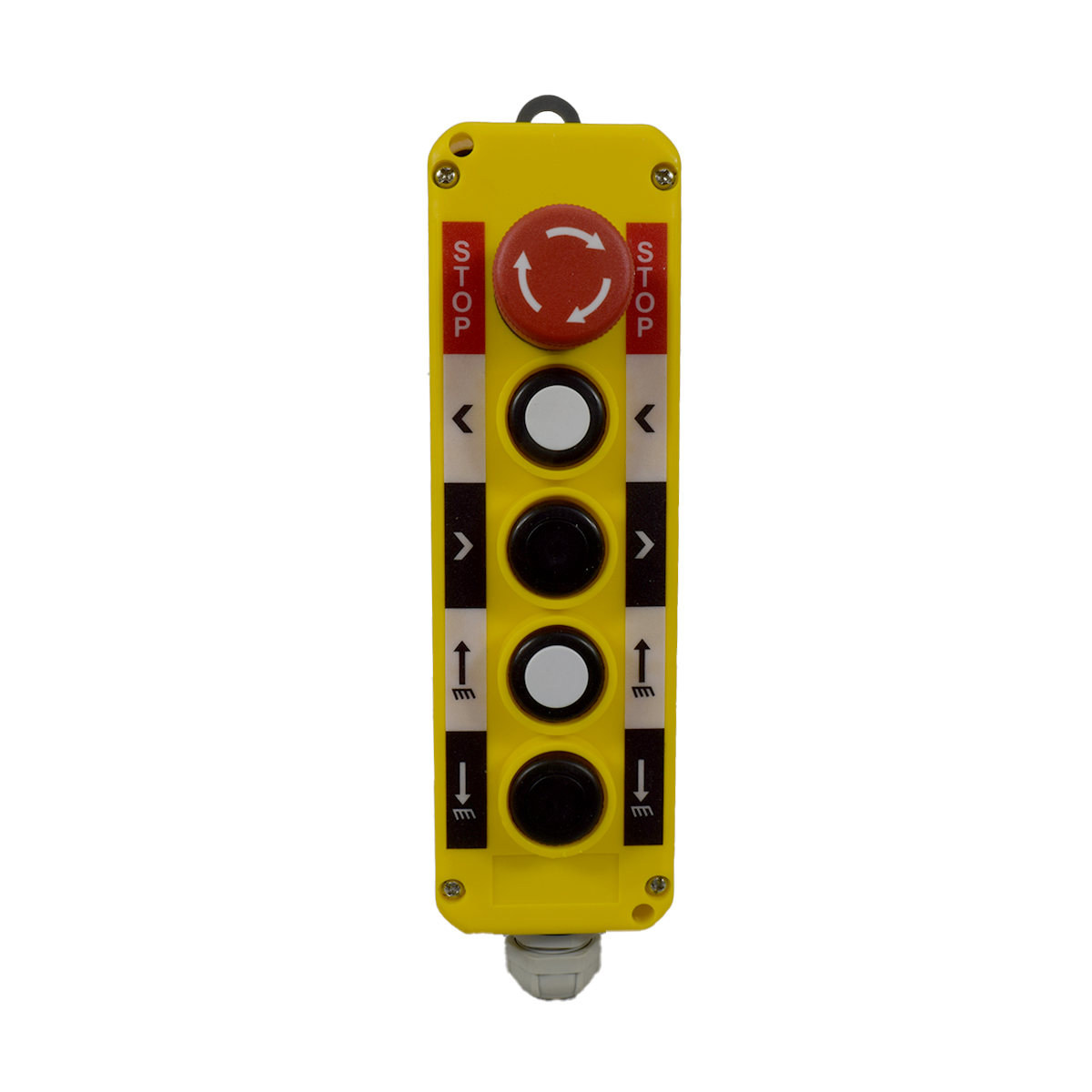

25778

LAY5-EPBS5
Function: 2 white + 2 black + 1 emergency push buttons command buttons
Operation type: Stop - up - down - left - right
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 4NO + 1NC
Protection degree: IP54

 COP74,256
Sin Stock

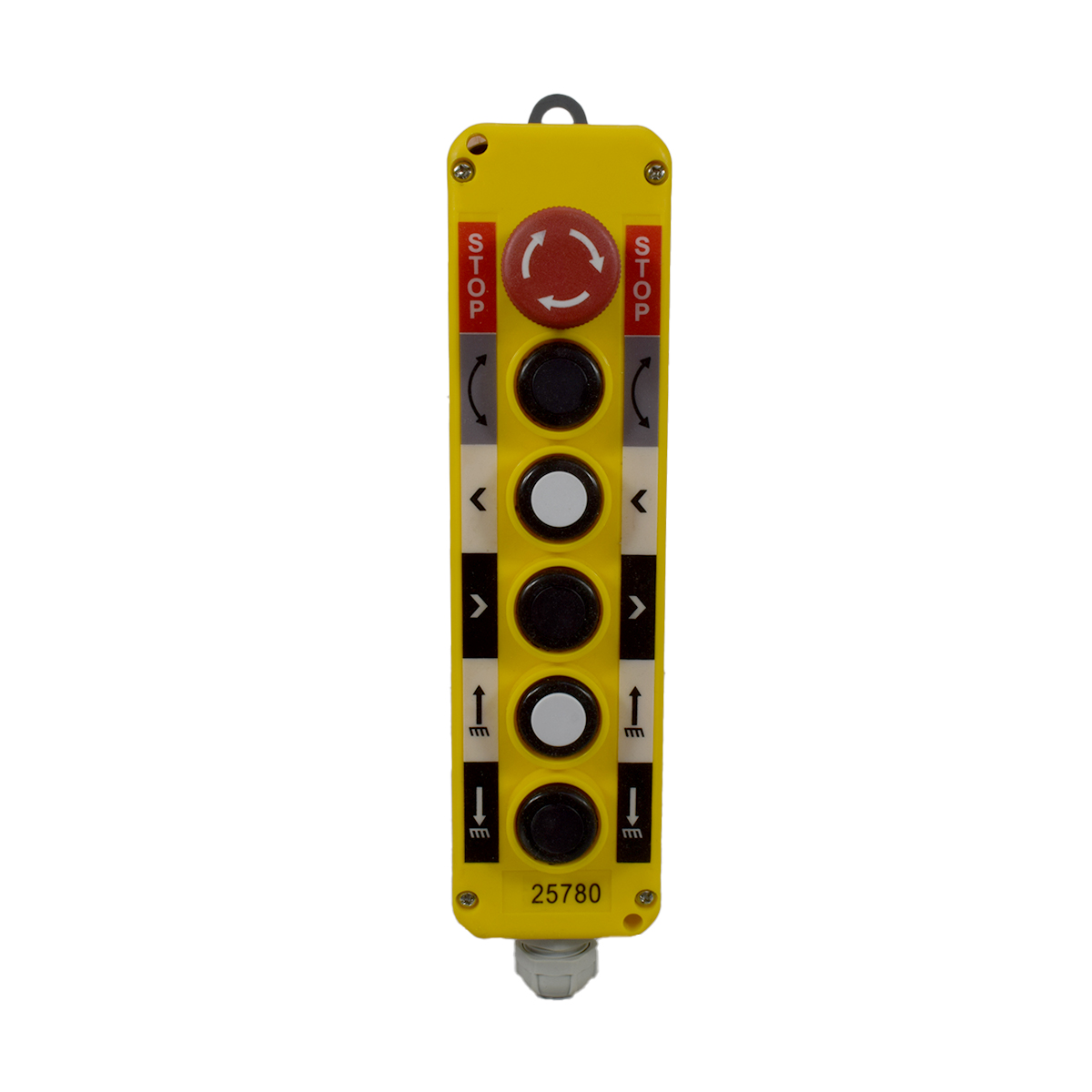

25780

LAY5-EPBS6
Function: 2 white + 3 black + 1 emergency push buttons command buttons
Operation type: Stop - off - up - down - left - right
Rated voltage: 660VAC
Rated current: 10A
Auxiliary contacts: 5NO + 1NC
Protection degree: IP54

 COP88,536
Sin Stock
