Ref: 477486

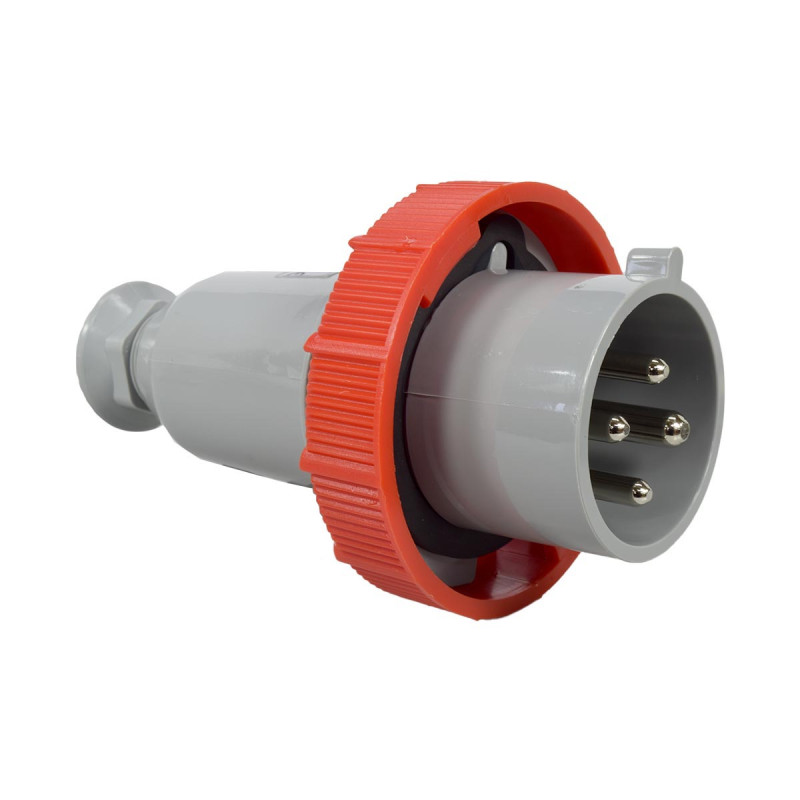

Name: Clavijas industriales serie CEE
Brand: Palazzoli
SKU: 477486
Price: 136874 COP
Availability: OutOfStock

477486

Out of stock

Specifications

Video

Downloads

Grip material	Technopolymer with improved thickness
Features	Handle Heat Resistance (Glow Wire) (850 ° C) Fire resistance grip (V2) Impact resistance (IK08) Insulation voltage (690VAC) Working temperature (-25 ° C to 50 ° C) Nominal frequency (0 - 500Hz)
Mounting type	Aerial plug
Normativity	According with IEC/EN 60309-1 and IEC/EN 60309-2

Palazzoli - Manuales y Fichas Técnicas

Palazzoli - 477486 - Datasheet

(Size: 150.8 KB)

Palazzoli - CEE - Catalogue

(Size: 2.5 MB)

Referencia	Resumen producto	Precio	Cantidad
477486	477486 Series: CEE Type: Plug Hour designation: 3h Number of poles: 3P + G Rated voltage: 380 - 415VAC Nominal current: 32A Protection degree: IP67	COP136,874
