Ref: 532131

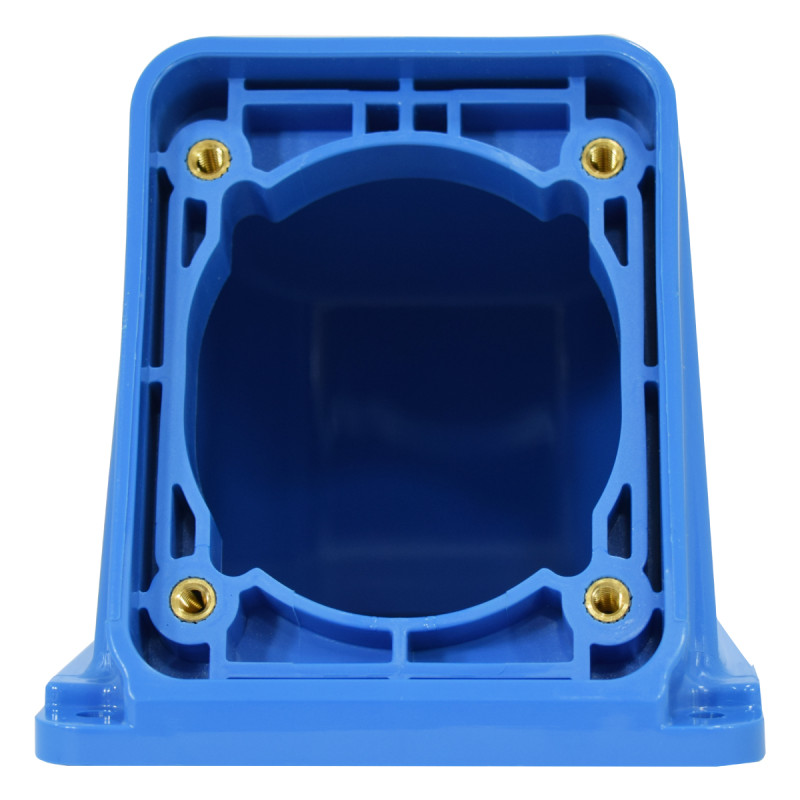

Name: Cajas inclinadas de sobreponer serie XCEE
Brand: Palazzoli
SKU: 532131
Price: 149083 COP
Availability: OutOfStock

532131

Out of stock

Specifications

Video

Downloads

Mounting type	Overlap box
Inclination	65°C
Fabrication material	Thermoset (GRP)
Protection degree	IP66/IP67/IP68/IP69
Features	Heat resistance (Glow wire) (850 ° C) Fire resistance (V2) Impact resistance (IK10) Insulation voltage (690VAC) Working temperature (-40°C to 60°C) Nominal frequency (50 - 60Hz)
Flange dimensions	65 x 83mm or 100 x 108mm
Normativity	IEC/EN 60309-1 and IEC/EN 60309-2
Dimensions	Ref.532131 (H125 x W92 x D140) Ref.532132 (H185 x W125 x D190)

Palazzoli - Manuales y Fichas Técnicas

Palazzoli - 532131 - Datasheet

(Size: 475.1 KB)

Referencia	Resumen producto	Precio	Cantidad
532131	532131 Series: XCEE Type: Angled surface mounting enclosure Flange size: 65 x 83mm Protection degree: IP66/IP67/IP68/IP69	COP149,083
