Ref: 35800

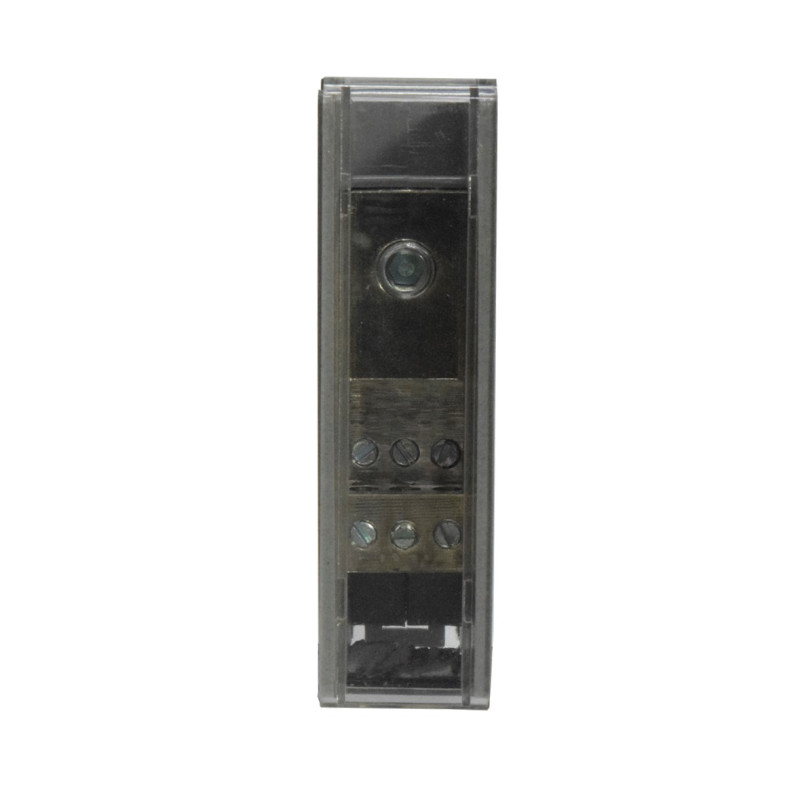

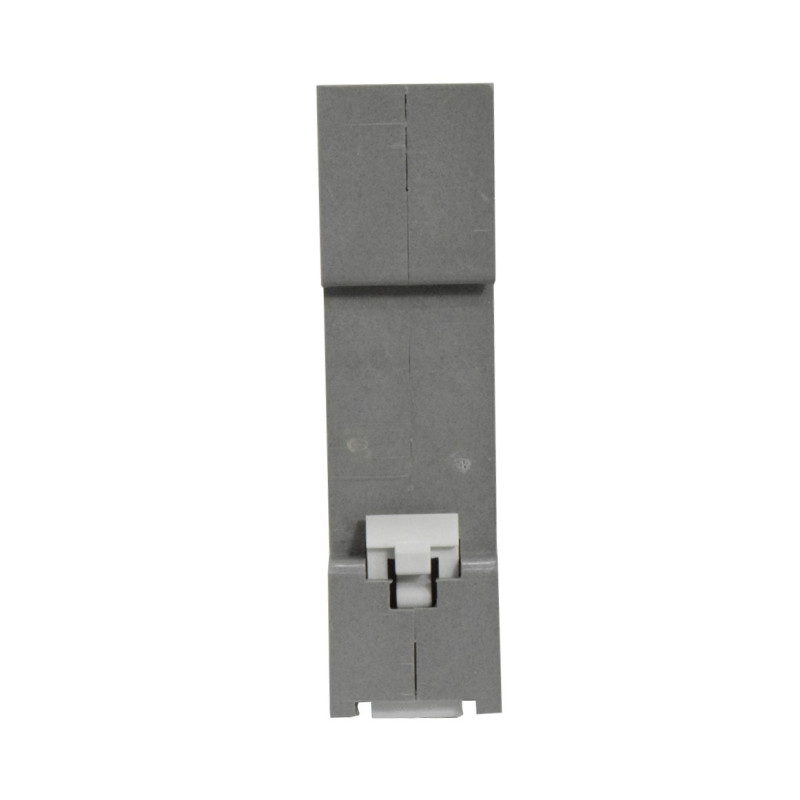

Name: Bloques de distribución serie JTS2
Brand: EBCHQ
SKU: 35800
Price: 56549 COP
Availability: OutOfStock

35800

Out of stock

Specifications

Downloads

Number of lines conductors	1 - 2 (depend of reference)
Number of loads conductors	2 - 4 - 6 - 8 (depend of reference)
Number of electrical shunts	2 - 3/0AWG (depend of reference)
Input conductor gauge	10 - 8 - 6 - 4 - 2 - 1/0 AWG (depend of reference)
Load voltage	380VAC
Load current	125A - 232A (depend of reference)
Features	Insulation voltage 690V / DIN rail mount

EBCHQ - Manuales y Fichas Técnicas

EBCHQ - Bloques de distribución - Ficha

(Size: 2.9 MB)

Ebchq - JTS2 - Datasheets

(Size: 1 MB)

Referencia	Resumen producto	Precio	Cantidad
35800	JTS2-35/6x6 Number of lines: 1 Number of holes: 6 Load voltage: 380VAC Load current: 125A Input max. wire range: 2 AWG (35mm²) Output wire range: 10 AWG (6mm²)	COP56,549
