Ref: 03004

Name: Contactores para corrección de factor de potencia serie CJ19
Brand: Chint
SKU: 03004
Price: 74613 COP
Availability: OutOfStock

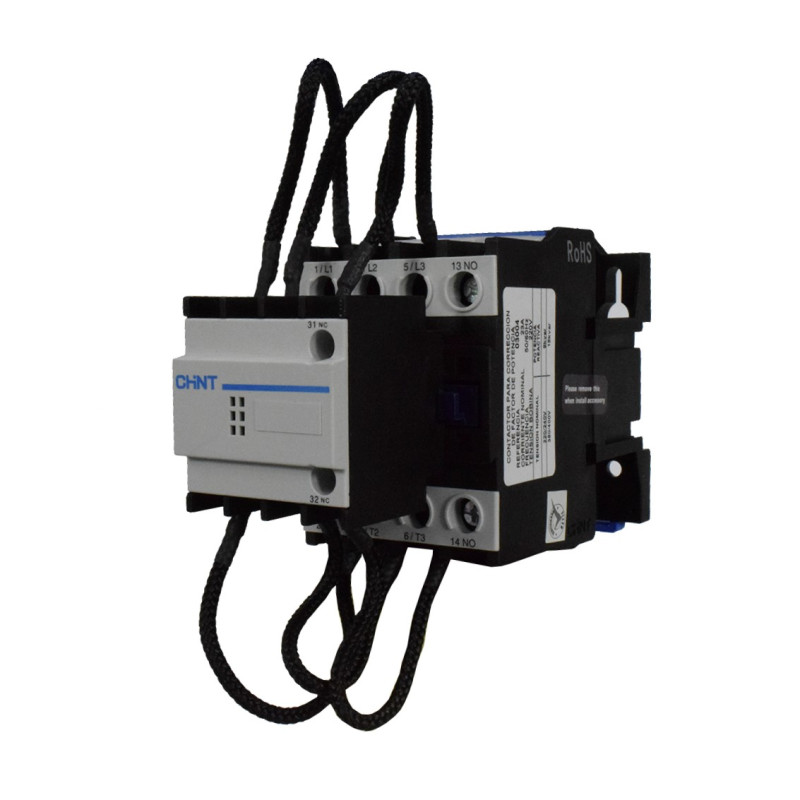

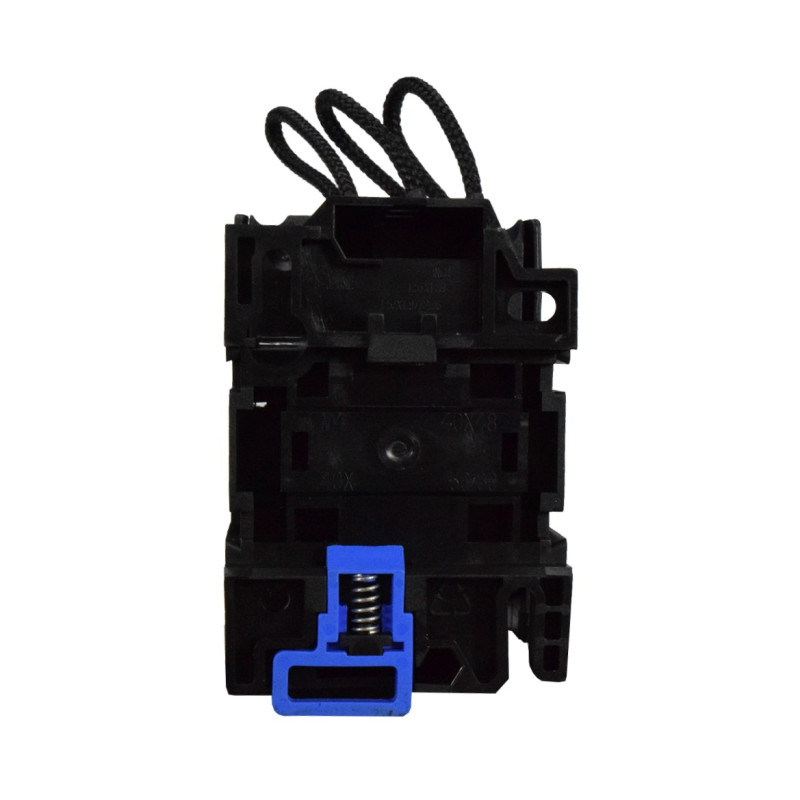

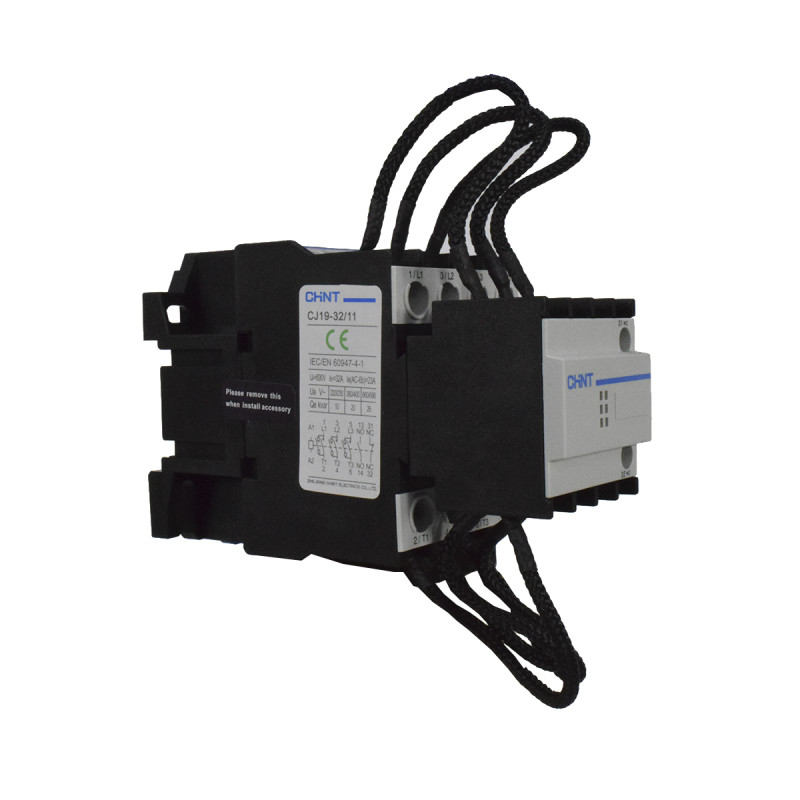

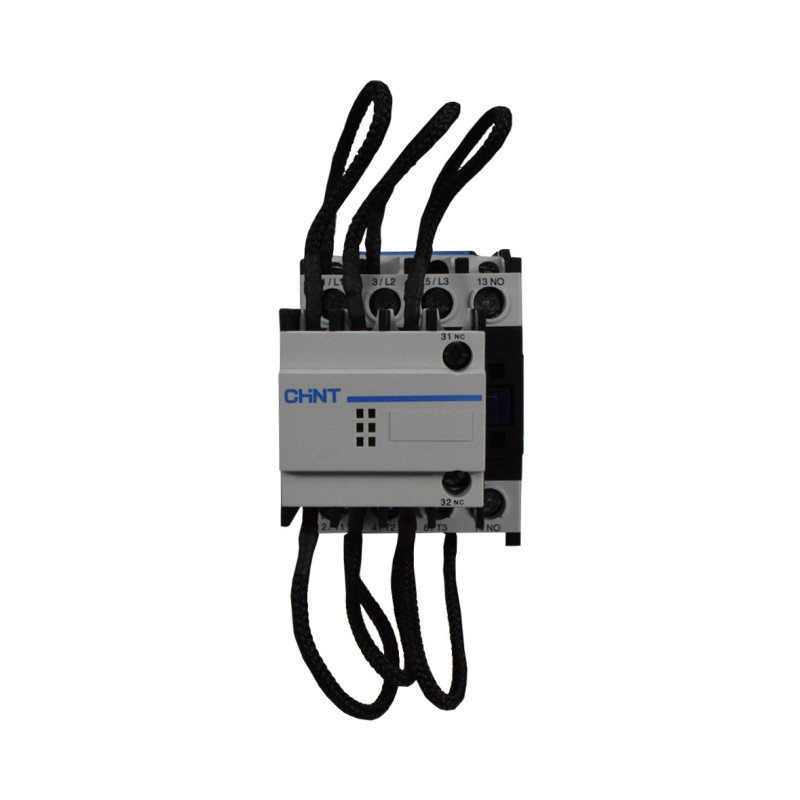

CJ19-3211 220V 50/60Hz

Certifications:

Out of stock

Specifications

Downloads

Especificaciones

Rated power at 220/230V	6,7, 10, 15, 20 ó 35kVAr (depending on model)
Rated power at 380/415V	12,5, 20, 25, 33,3 ó 50kVAr (depending on model)
Rated power at 660/690V	18, 26, 36, 48 ó 92kVAr (depending on model)
Thermal current Ith	25, 32, 43, 63 or 95A (depending on model)
Coil voltage	220VAC
Auxiliary contacts	1NO + 1NC or 2NO + 1NC (depending on model)
Mechanical service life (in operation cycles)	1.000.000
Electrical service life (in operation cycles)	100.000

Downloads

Chint - Manuales y Fichas Técnicas

Chint - CJ19 - Datasheets

(Size: 109.1 KB)

Referencia	Resumen producto	Precio	Cantidad
03004	CJ19-3211 220V 50/60Hz Number of poles: 3 Power at 220/230V: 10kVAr Power at 380/400V: 20kVAr Power at 660/690V: 26kVAr Ith thermal current: 32A Coil voltage: 220VAC Auxiliary contacts: 1NO + 1NC Dimensions: H 90 x W 58 x D 132mm	COP74,613
