TAIS CUBE series distribution boards with transparent door

TAIS CUBE series distribution boards with transparent door

Certifications:

In stock









Boxes typeTransparent door
Boxes sizes1 - 2 - 3 - 4 - 5 - 6 - 7
Rated current36 (3 x 12) - 54 (3 x 18) - 72 (4 x 18) - 96 (4 x 24) - 140 (5 x 28) - 200 (5 x 40)
Box materialThermosetting (GRP)
Cable gland typeM20
FeaturesHeat resistance (Glow wire) (960 ° C)
Fire resistance (V0)
Impact resistance (IK10)
Working temperature (-30 ° C to 90 ° C)
Nominal frequency (0 - 1000Hz)
Nominal use voltage 1500VDC / 1000VAC
Insulation class II
Nominal impulse closing voltage 8KV
Includes triangular key
Protection degreeIP66
NormativityIEC/EN 62208

Downloads

Palazzoli - Manuales y Fichas Técnicas
pdf
Palazzoli - Serie Tais - Catalogo
(Size: 1.9 MB)
pdf
Palazzoli - TAIS CUBE - Catalogue
(Size: 576.5 KB)
pdf
Palazzoli - TAIS CUBE - Catalogue 2
(Size: 1.5 MB)



sku Summary Unit Price Qty
550031

550031
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 1
External dimensions: H305 x W260 x D160mm
Internal dimensions: H250 x W200 x D100mm

 COP738,990
Sin Stock
550032

550032
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 2
External dimensions: H430 x W340 x D180mm
Internal dimensions: H375 x W280 x D120mm
Number of DIN modules: 36 (3 x 12)

 COP1,090,706
Sin Stock
550033

550033
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 3
External dimensions: H505 x W450 x D220mm
Internal dimensions: H450 x W390 x D160mm
Number of DIN modules: 54 (3 x 18)

 COP1,460,130
Sin Stock

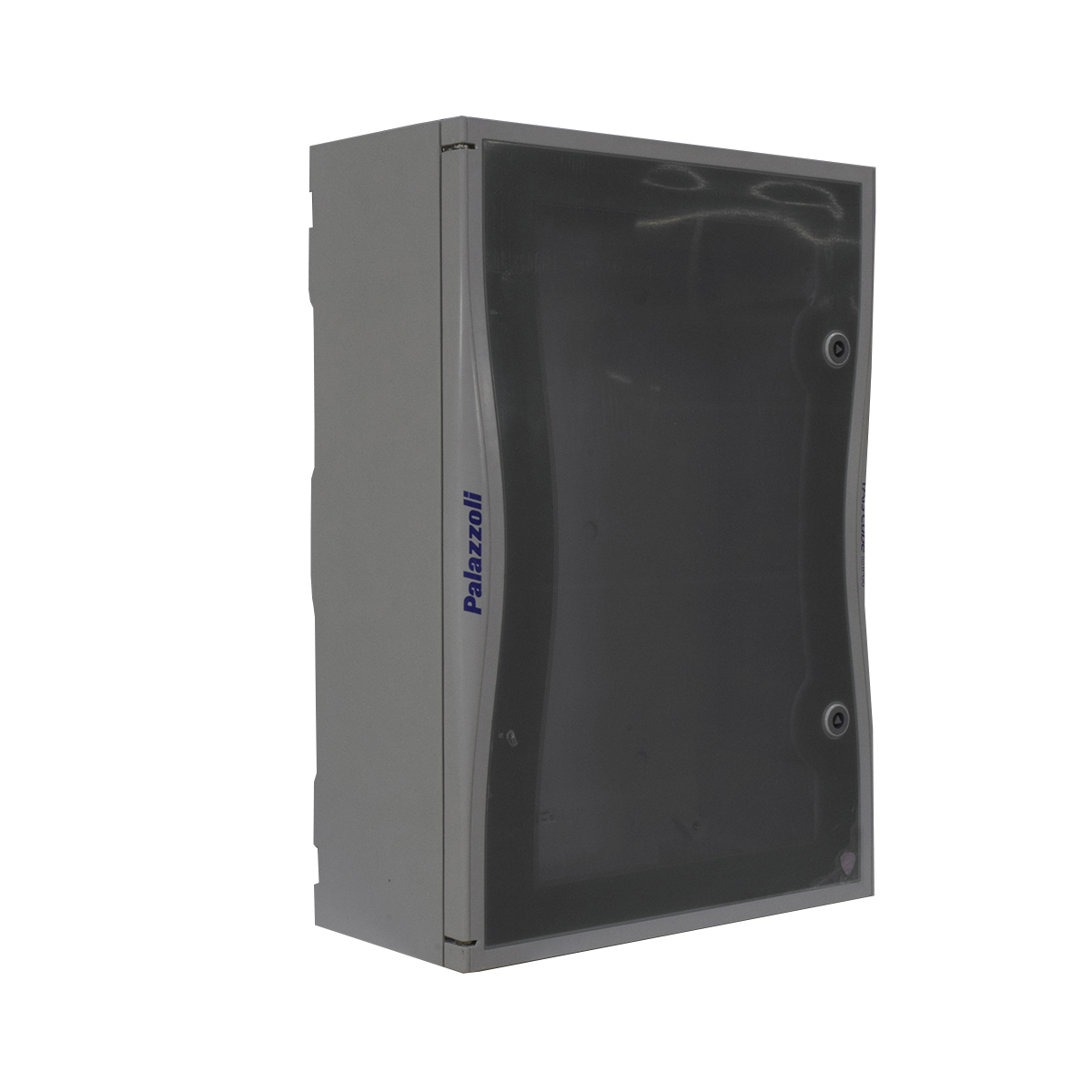

550034

550034
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 4
External dimensions: H655 x W450 x D220mm
Internal dimensions: H600 x W390 x D160mm
Number of DIN modules: 72 (4 x 18)

 COP1,715,242
Sin Stock
550035

550035
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 5
External dimensions: H655 x W560 x D260mm
Internal dimensions: H600 x W500 x D200mm
Number of DIN modules: 96 (4 x 24)

 COP2,193,051
Sin Stock

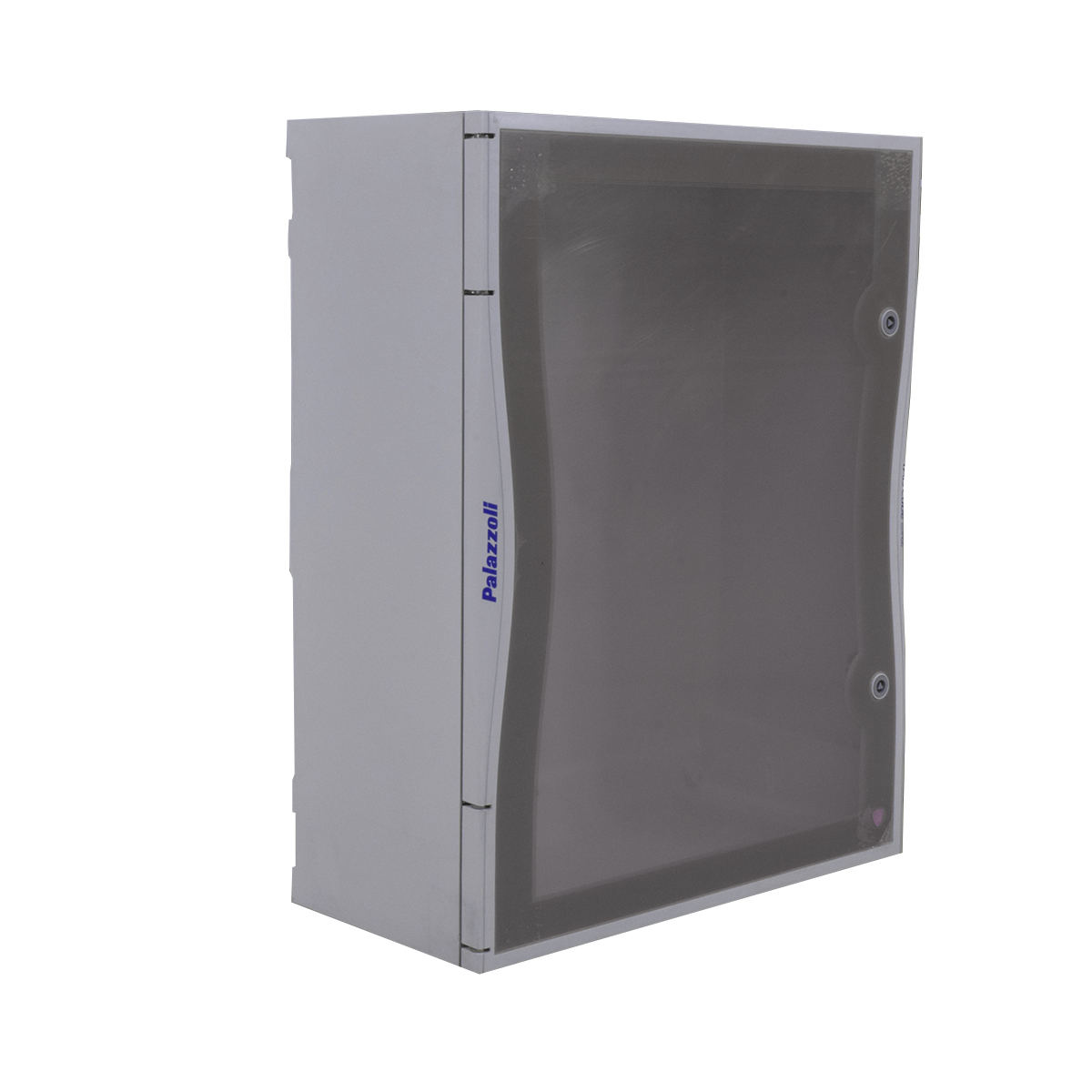

550036

550036
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 6
External dimensions: H810 x W630 x D300mm
Internal dimensions: H750 x W570 x D235mm
Number of DIN modules: 140 (5 x 28)

 COP2,271,591
Sin Stock
550037

550037
Series: TAIS CUBE
Type: Thermoset distribution boards
Box size: 7
External dimensions: H1.060 x W850 x D350mm
Internal dimensions: H1.000 x W790 x D290mm
Number of DIN modules: 200 (5 x 40)

 COP4,386,031
Sin Stock
