Ref: 550035

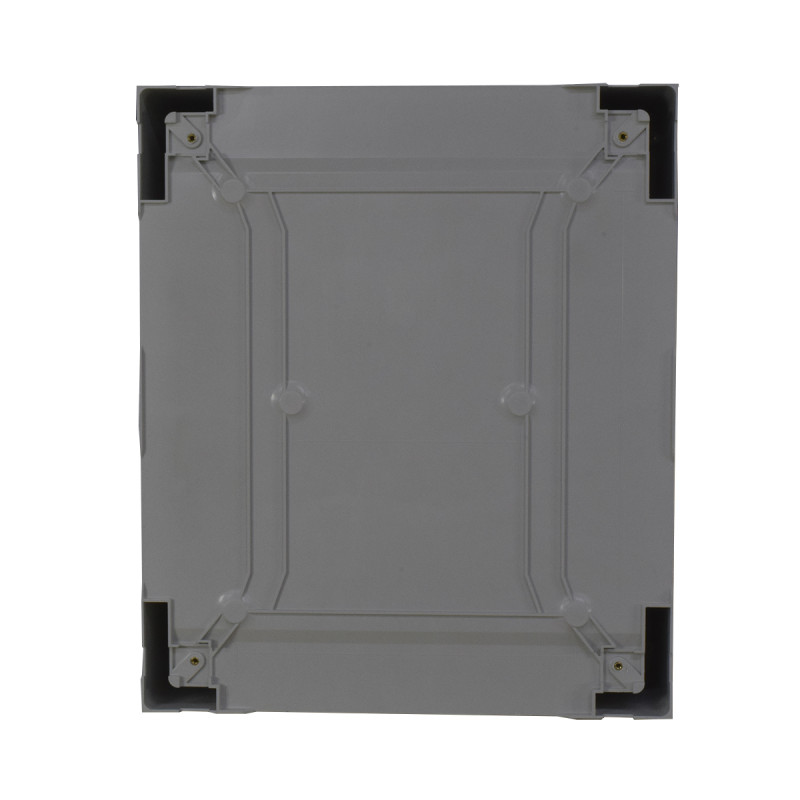

Name: Cajas en termoendurecido puerta transparente serie TAIS CUBE
Brand: Palazzoli
SKU: 550035
Price: 2193051 COP
Availability: OutOfStock

550035

Certifications:

Out of stock

Specifications

Downloads

Especificaciones

Boxes type	Transparent door
Boxes sizes	1 - 2 - 3 - 4 - 5 - 6 - 7
Rated current	36 (3 x 12) - 54 (3 x 18) - 72 (4 x 18) - 96 (4 x 24) - 140 (5 x 28) - 200 (5 x 40)
Box material	Thermosetting (GRP)
Cable gland type	M20
Features	Heat resistance (Glow wire) (960 ° C) Fire resistance (V0) Impact resistance (IK10) Working temperature (-30 ° C to 90 ° C) Nominal frequency (0 - 1000Hz) Nominal use voltage 1500VDC / 1000VAC Insulation class II Nominal impulse closing voltage 8KV Includes triangular key
Protection degree	IP66
Normativity	IEC/EN 62208

Downloads

Palazzoli - Manuales y Fichas Técnicas

Palazzoli - 550035 - Datasheet

(Size: 473.3 KB)

Palazzoli - Serie Tais - Catalogo

(Size: 1.9 MB)

Palazzoli - TAIS CUBE - Catalogue

(Size: 576.5 KB)

Palazzoli - TAIS CUBE - Catalogue 2

(Size: 1.5 MB)

Referencia	Resumen producto	Precio	Cantidad
550035	550035 Series: TAIS CUBE Type: Thermoset distribution boards Box size: 5 External dimensions: H655 x W560 x D260mm Internal dimensions: H600 x W500 x D200mm Number of DIN modules: 96 (4 x 24)	COP2,193,051
