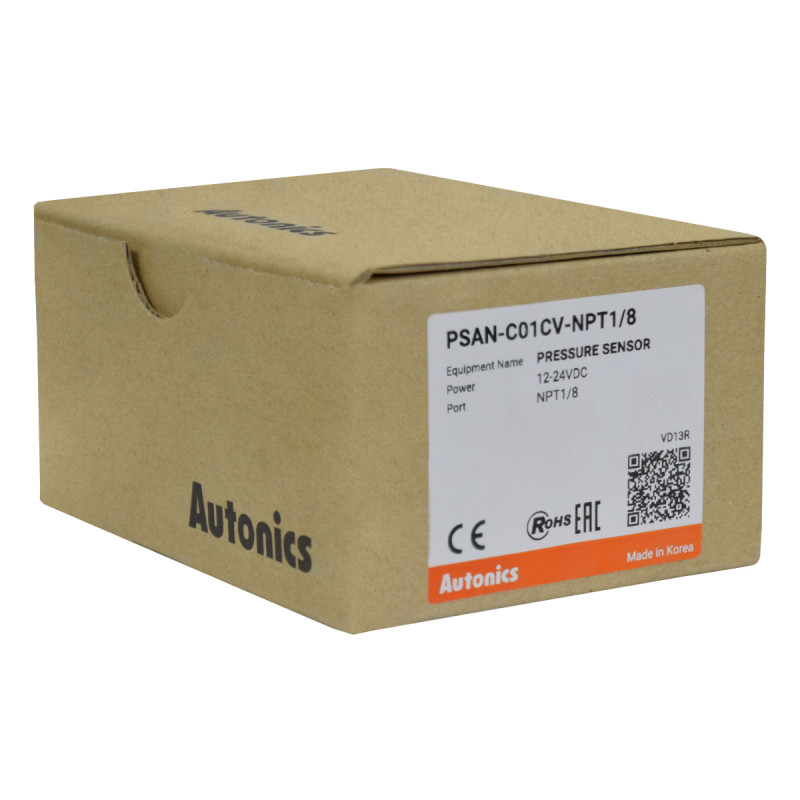

Ref: PSAN-C01CV-NPT1/8

Name: PSAN-C01CV-NPT1/8
Brand: Autonics
SKU: PSAN-C01CV-NPT1/8
Price: 542640 COP
Availability: OutOfStock

PSAN-C01CV-NPT1/8

Out of stock

Specifications

Downloads

Power supply	12 - 24VDC
Pressure range	0 - 14,5 PSI (0-1bar) or 0 - 145 PSI (0 - 10bar)
Repond time	Selectable 2,5/5/100/500/1000 ms
Measure units	MPa \| KPa \| kgf/cm² \| bar \| PSI
Digital outputs	2 outputs NPN NA
Analog outputs	1 output 4 - 20mA
Display type	Display LED 4? digits - Zero adjust
Fluid type	Neumatic (non corrosives gases) or Gases, liquids y non corrosives oils
Protection	IP40
Connection type	1/8" NPT

Autonics - Manuales y Fichas Técnicas

Autonics - PSAN (Fluid) - Esp - Manual

(Size: 830.6 KB)

Referencia	Resumen producto	Precio	Cantidad
PSAN-C01CV-NPT1/8	PSAN-C01CV-NPT1/8 Power supply: 12 - 24VDC Pressure range: -14,5 to +14,5psi (-1 to +1bar) Digital outputs: 2 digital NPN Analog outputs: 1 Voltage (1 - 5VDC) Flow type: Non corrosives gases Display digits: LED 4 digits Connector: 1/8" NPT	COP542,640
