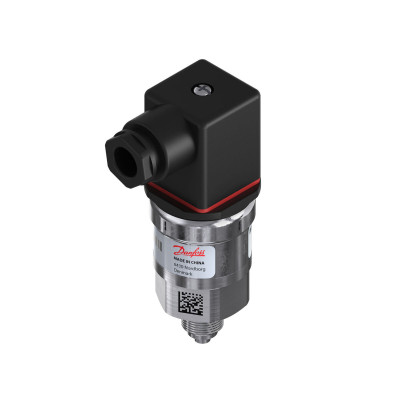

Ref: 060G1102

Name: 060G1102
Brand: Danfoss
SKU: 060G1102
Price: 451248 COP
Availability: InStock

060G1102

In stock

Specifications

Downloads

Power supply	9 - 32VDC or 10 - 30VDC (depends on reference)
Pressure range	Range depends on reference
Accuracy	±0.5%FS
Analog outputs	1 output 4 - 20mA or 0 - 10VDC (depends on reference)
Fluid type	Water, air, gases and oil
Materials	Stainless steel AISI 316L
Temperature operation	-40 to 85°C
Connection type	Process: G1/4" Electric: DIN 43650-A included
Features	Relative pressure Vibration stability
Atex zone	IIA
Protection degree	IP65

Danfoss - Manuales y Fichas Técnicas

Danfoss - Transmisores presión MBS 3000 - Catálogo

(Size: 422.7 KB)

Danfoss - Transmisores presión MBS 3000 - Datasheet

(Size: 753.9 KB)

Referencia	Resumen producto	Precio	Cantidad
060G1102	060G1102 Power supply: 10 - 30VDC Pressure range: 0 - 145psi (0 - 10bar) Analog outputs: 1 Current (4 - 20mA 2 wires) Flow type: Water, air, gases and oil Connector: G1/4"	COP451,248
