Ref: 74380

Name: Expansiones para relés serie SR
Brand: Array
SKU: 74380
Price: 534072 COP
Availability: OutOfStock

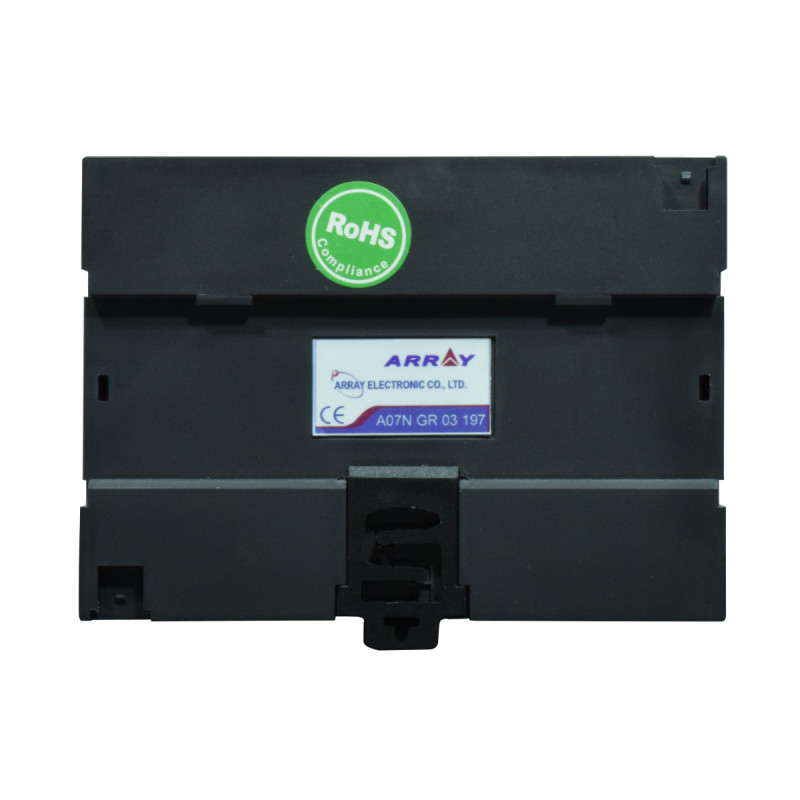

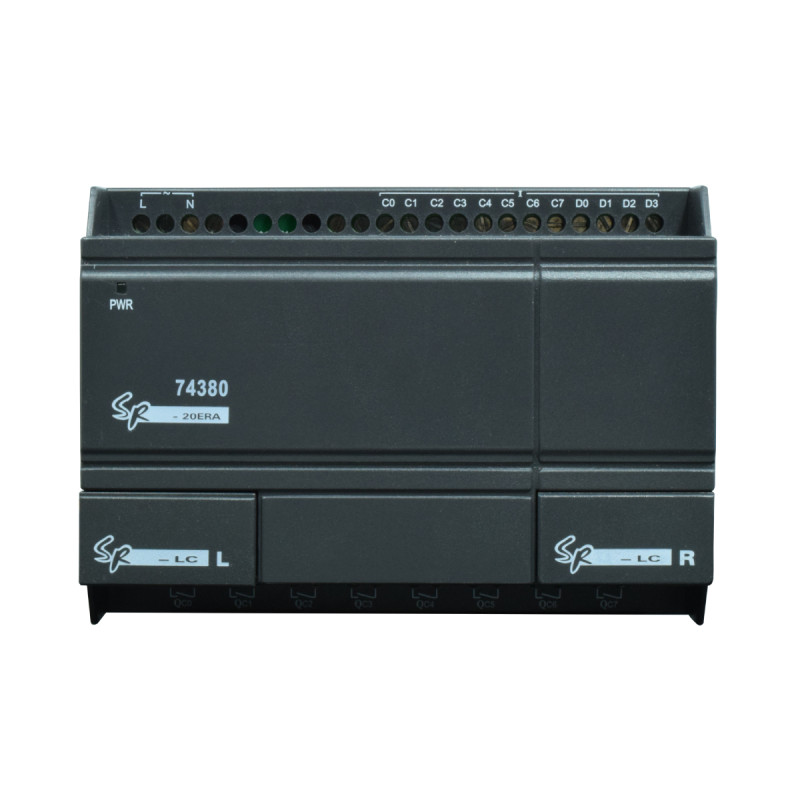

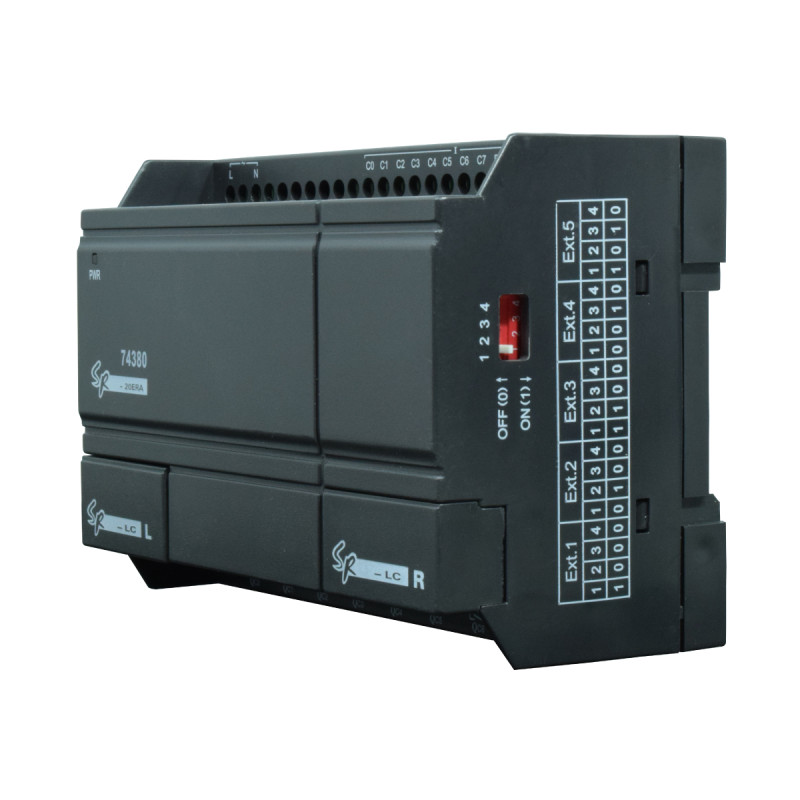

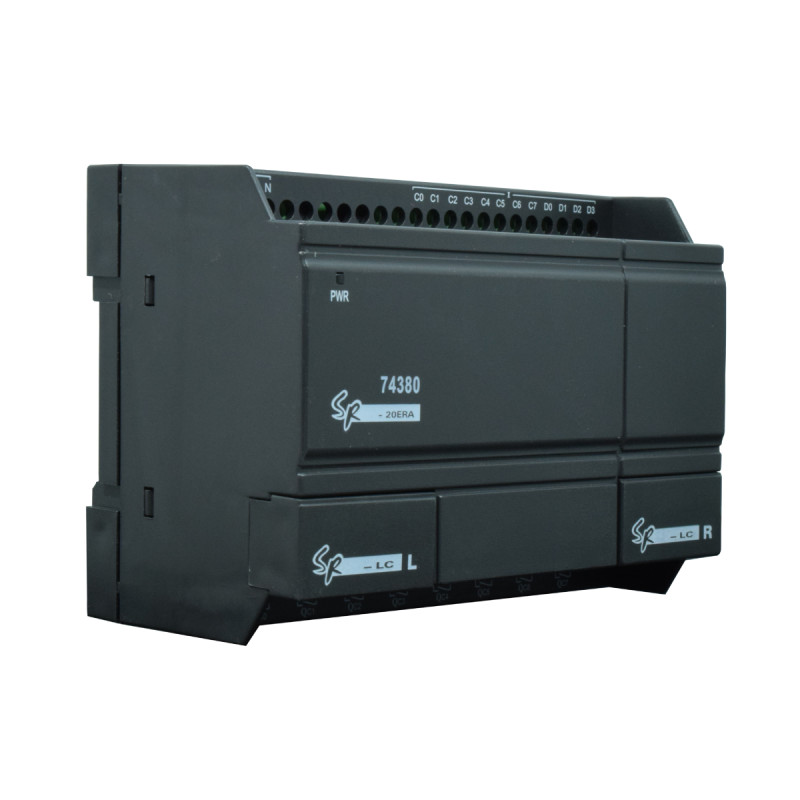

SR-20ERA

Out of stock

Specifications

Downloads

Inputs
Input voltage range	0 - 240VAC or 0 - 24VDC (depending on expansion power supply)
Range for 0 level	0 - 40VAC or 0 - 5VDC (depending on expansion power supply)
Range for 1 level	85 - 240VAC ó 10 - 24VDC depending on expansion power supply)
Level shift delay	50ms
Outputs
Contact rating	10A resistive / 2A inductive
1 to 0 shift delay	8ms
0 to 1 shift delay	10ms
Switching frequency	Mechanical 10Hz \| Resistive loads 2Hz \| Inductive loads 0,5Hz

Array - Manuales y Fichas Técnicas

Array - SR - Manual

(Size: 4.1 MB)

Referencia	Resumen producto	Precio	Cantidad
74380	SR-20ERA Power supply: 100 - 240VAC Digital inputs: 12 AC Digital outputs: 8 relay	COP534,072
