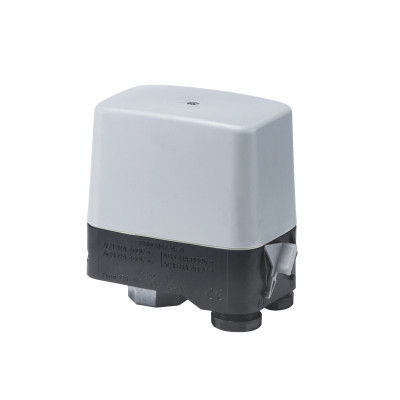

Ref: 031E024566

Name: 031E024566
Brand: Danfoss
SKU: 031E024566
Price: 350253 COP
Availability: OutOfStock

031E024566

Out of stock

Specifications

Downloads

Pressure switches
Fluid type	Water and air
Range and differential	Adjustable
Ambient temperature	-20 to 70°C
Fluid temperature	Water: 0 to 70°C Air: -20 to 70°C
Protection degree	IP43 or IP55 (depends on reference)
Features	Simple design Manual switch to lock the contact system

Danfoss - Manuales y Fichas Técnicas

Danfoss - Presostatos CS - Datasheet

(Size: 1 MB)

Referencia	Resumen producto	Precio	Cantidad
031E024566	031E024566 Series: CS Fluid type: Water and air Type: Mechanical Reset type: Automatic Pressure range: 7 - 20bar Differencial pressure range: 2 - 7bar Contact type: TPST (3 poles) Contact capacity: AC3: 12A/220-415V \| DC13: 2A/220V (3 contacts in series) Connector: Pressure: G1/4 female \| Electric: PG16 Protection degree: IP55	COP350,253
