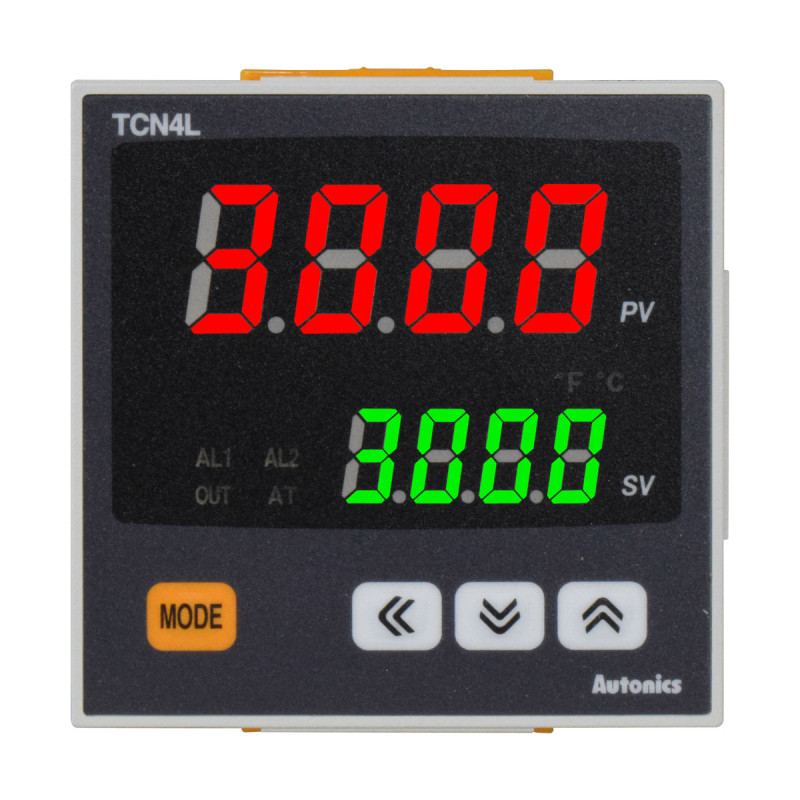

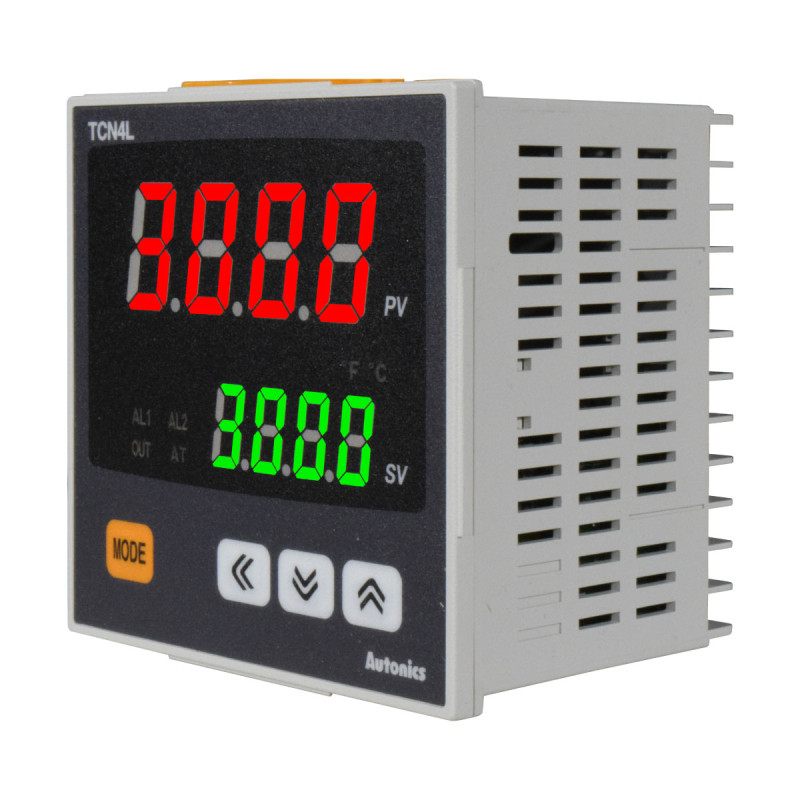

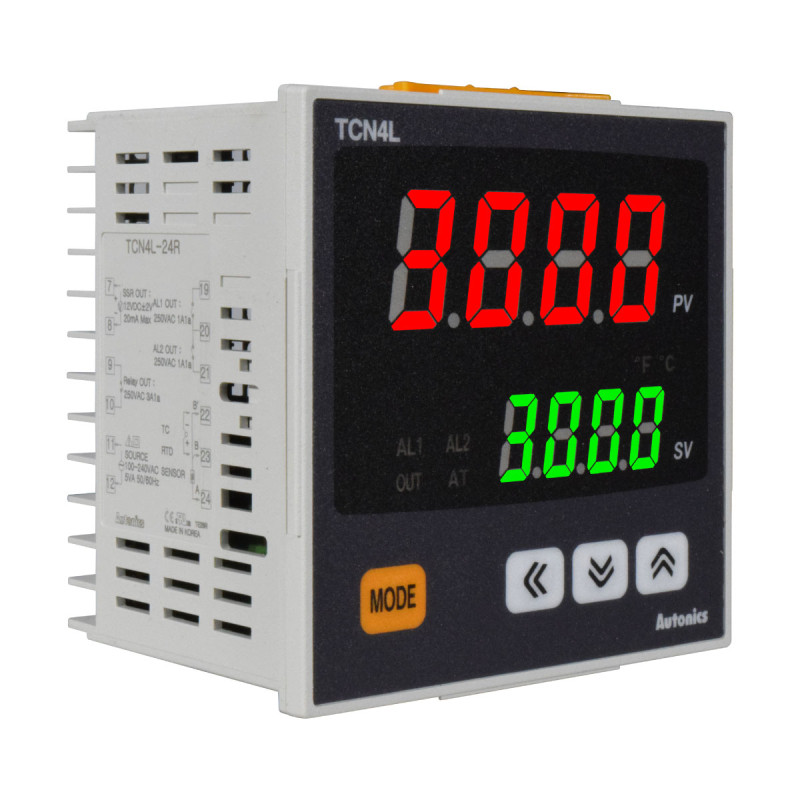

Ref: TCN4L-24R

Name: Controles de temperatura digitales serie TCN4
Brand: Autonics
SKU: TCN4L-24R
Price: 328440 COP
Availability: OutOfStock

TCN4L-24R

Out of stock

Specifications

Video

Downloads

Power supply	100 - 230VAC
Control mode	ON-OFF, P, PI, PD, PID
RTD input type	Pt100, Pt500, Pt1000, Ni100, PtC1K, NTC10K
TC input type	K, J, S, R, L, T
Sampling period	100ms
Contact capacity	3A a 250VAC
Alarm contact capacity	1A a 250VAC
SSR output	20mA at 12VDC
Protection	IP50 (frontal panel)
Size	TCN4S (H 48 x W 48 x D 64.5 mm) TCN4M (H 72 x W 72 x D 64,5 mm) TCN4H (H 96 x W 48 x D 64,5 mm) TCN4L (H 96 x W 96 x D 64,5 mm)
Features	SSRP adjust function for phase control or cyclic control

Autonics - Manuales y Fichas Técnicas

Autonics - TCN - Catalogue

(Size: 1.4 MB)

Autonics - TCN - Technical Description

(Size: 850.8 KB)

Autonics - TCN4 - Manual

(Size: 1.2 MB)

Referencia	Resumen producto	Precio	Cantidad
TCN4L-24R	TCN4L-24R Control type: ON-OFF, PID Power supply: 100 - 240VAC Temperature inputs: 1 thermocouple or 1 RTD Thermocouple type: Type K, J, S, R, L, T RTD type: Pt100, Cu50 Control outputs: 1 SPST relay or 1 SSR Auxiliar digital outputs: 2 SPST relay Dimensions: H 96 x W 96mm	COP328,440
