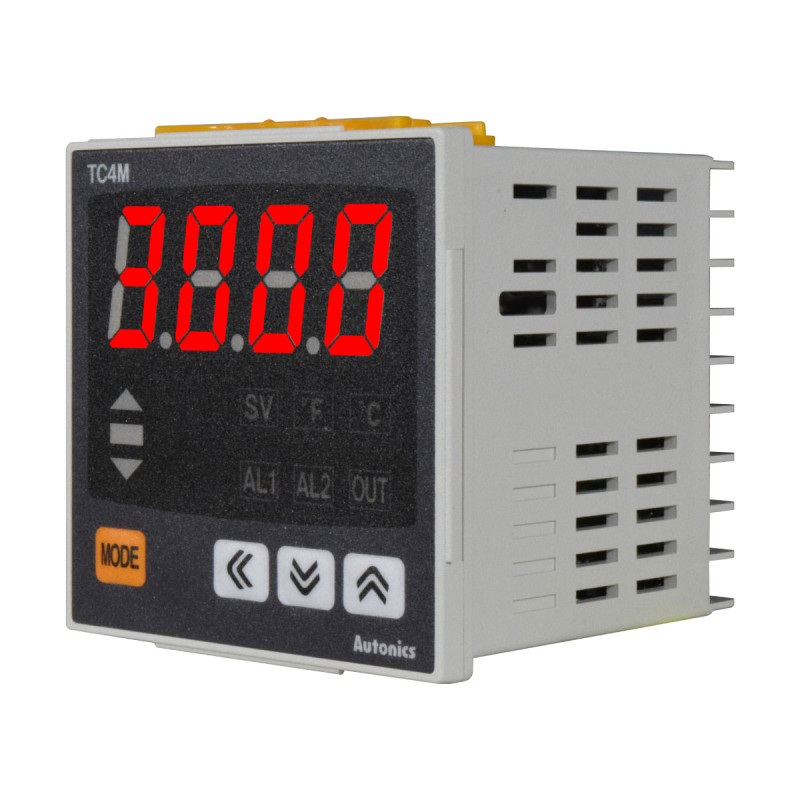

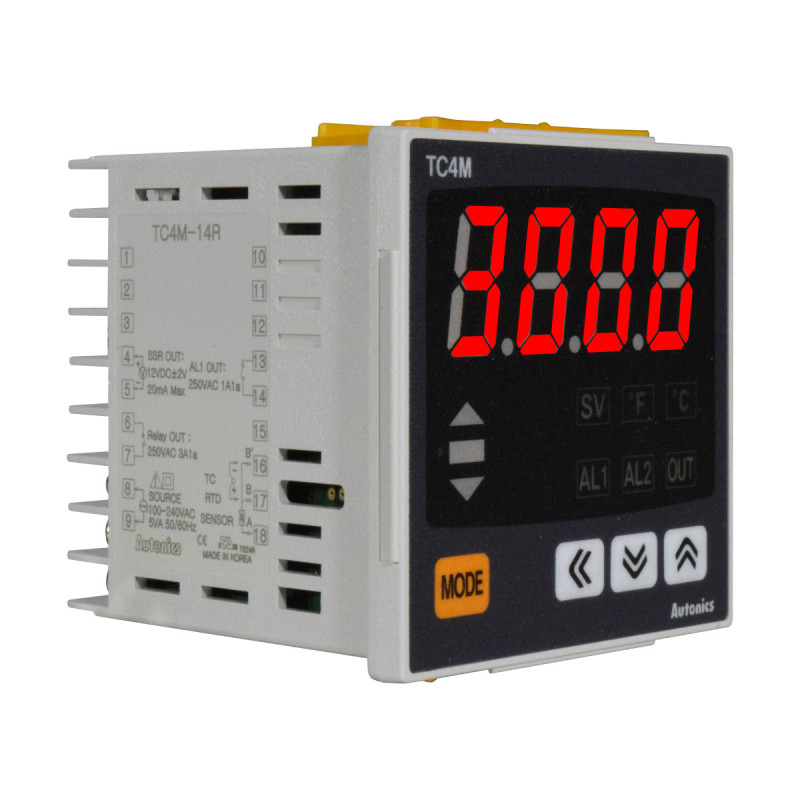

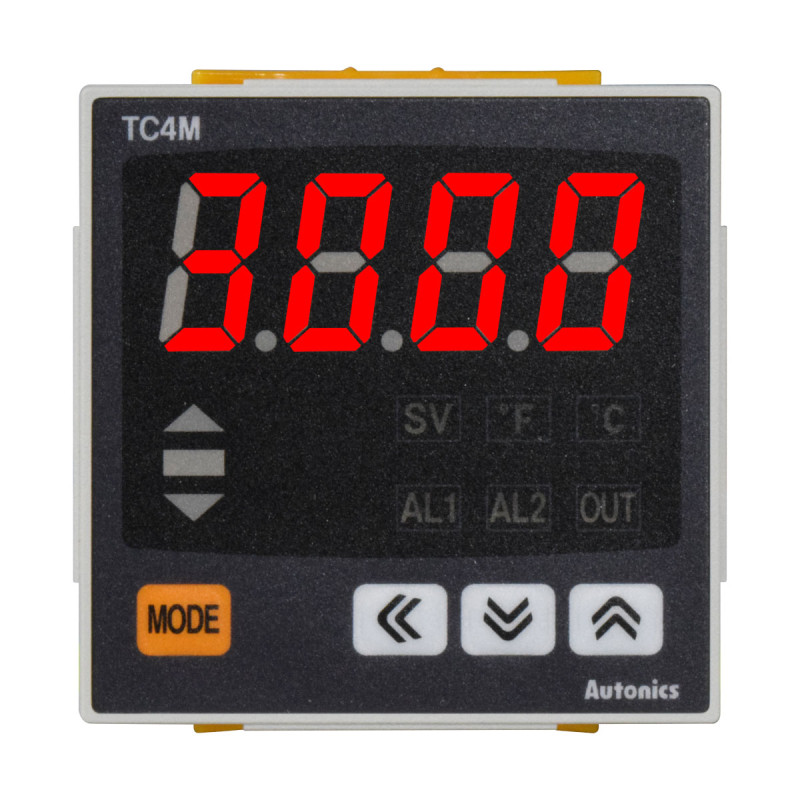

Ref: TC4M-14R

Name: Controles de temperatura digitales serie TC4
Brand: Autonics
SKU: TC4M-14R
Price: 271320 COP
Availability: OutOfStock

TC4M-14R

Out of stock

Specifications

Video

Downloads

Power supply	100 - 230VAC
Control mode	ON-OFF, P, PI, PD, PID
RTD input type	Pt100, Pt500, Pt1000, Ni100, PtC1K, NTC10K
TC input type	K, J, S, R, L, T
Sampling period	100ms
Contact capacity	3A a 250VAC
Alarm contact capacity	1A a 250VAC
SSR output	20mA at 12VDC
Size	TC4S H 48 x W 48 x D 64,5 mm TC4M H 72 x W 72 x D 64,5 mm TC4L H 96 x W 96 x D 64,5 mm TC4W H 48 x W 96 x D 64,5 mm TC4H H 96 x W 48 x D 64,5 mm TC4Y H 36 x W 72 x D 77 mm
Features	SSRP adjust function for phase control or cyclic control

Autonics - Manuales y Fichas Técnicas

Autonics - TC - Manual

(Size: 1.3 MB)

Autonics - TC4 - Datasheets

(Size: 1013.9 KB)

Referencia	Resumen producto	Precio	Cantidad
TC4M-14R	TC4M-14R Control type: ON-OFF, PID Power supply: 100 - 240VAC Temperature inputs: 1 thermocouple or 1 RTD Thermocouple type: Type K, J, L RTD type: Pt100, Cu50 Control outputs: 1 SPST relay or 1 SSR or 1 SSRP Auxiliar digital outputs: 1 SPST relay Dimensions: H 72 x W 72mm	COP271,320
