Ref: 67265

Name: ATR243-20ABC-I
Brand: Pixsys
SKU: 67265
Price: 867224 COP
Availability: OutOfStock

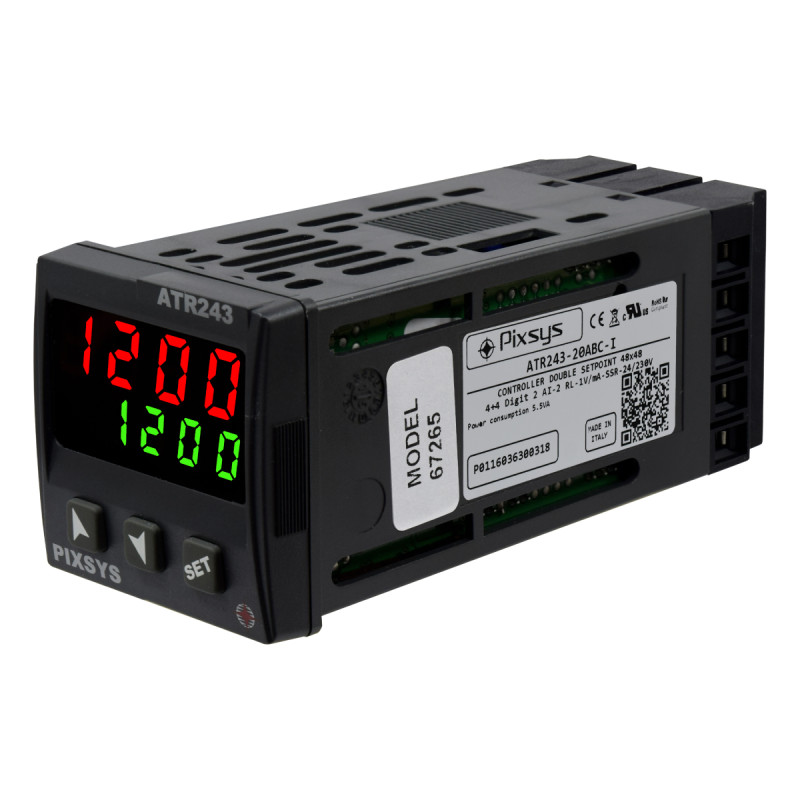

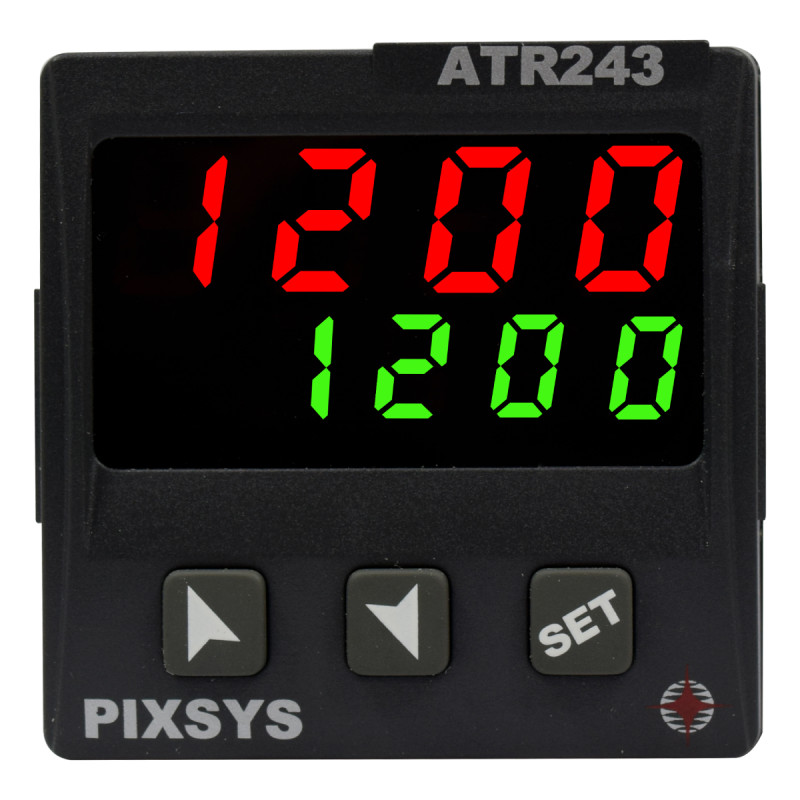

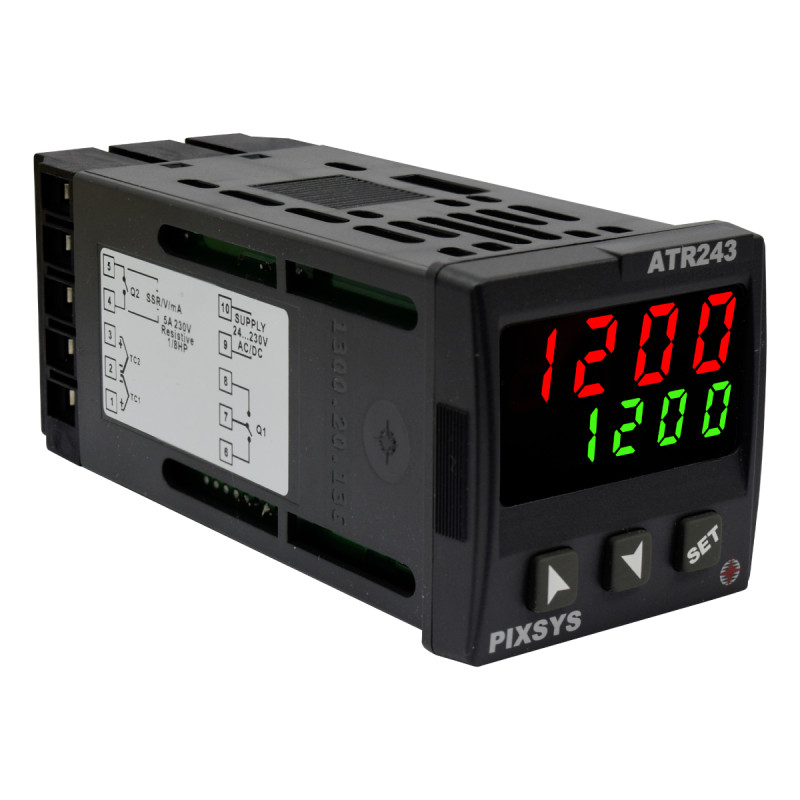

ATR243-20ABC-I

Out of stock

Specifications

Downloads

Power supply	24 - 230VAC / DC
Control mode	ON-OFF, P, PI, PD, PID
TC input type	K, J, S, R
Sampling period	4,1ms
Contact capacity	5A at 250 VAC
Digital input	Change function setpoint, Start / Stop, Auto / Man control
SSR output	30mA at 12VDC
Protection	IP65 (frontal panel)
Size	H 48 x W 48 x D 125 mm
Features	Simultaneous control for heating / cooling Automatic cold junction compensation (0 -50?C) Soft start (ascent gradient in units / hour) HBA function: Heater Break Alarm

Pixsys Software

Labsoftview - Manual

(Size: 280.8 KB)

LabSoftView 3.4.8

(Size: 56 MB)

Software para programación de controladores de Pixsys

Pixsys - Manuales y Fichas Técnicas

Pixsys - ATR243 - Manual

(Size: 3.1 MB)

Referencia	Resumen producto	Precio	Cantidad
67265	ATR243-20ABC-I Control type: ON-OFF, P, PI, PD, PID Power supply: 24 - 230VAC/DC Temperature inputs: 1 thermocouple Thermocouple type: Type K, J, S, R Analog outputs: 1 retransmission (V/mA) Selectable control outputs: 1 SPDT relay or 1 SPST relay or 1 SSR Dimensions: H 48 x W 48mm	COP867,224
