TC4 digital temperature controllers

TC4 digital temperature controllers

Certifications:

In stock











Power supply100 - 230VAC
Control modeON-OFF, P, PI, PD, PID
RTD input typePt100, Pt500, Pt1000, Ni100, PtC1K, NTC10K
TC input typeK, J, S, R, L, T
Sampling period100ms
Contact capacity3A a 250VAC
Alarm contact capacity1A a 250VAC
SSR output20mA at 12VDC
SizeTC4S H 48 x W 48 x D 64,5 mm
TC4M H 72 x W 72 x D 64,5 mm
TC4L H 96 x W 96 x D 64,5 mm
TC4W H 48 x W 96 x D 64,5 mm
TC4H H 96 x W 48 x D 64,5 mm
TC4Y H 36 x W 72 x D 77 mm
FeaturesSSRP adjust function for phase control or cyclic control

Downloads

Autonics - Manuales y Fichas Técnicas
pdf
Autonics - TC - Manual
(Size: 1.3 MB)
pdf
Autonics - TC4 - Datasheets
(Size: 1013.9 KB)



sku Summary Unit Price Qty

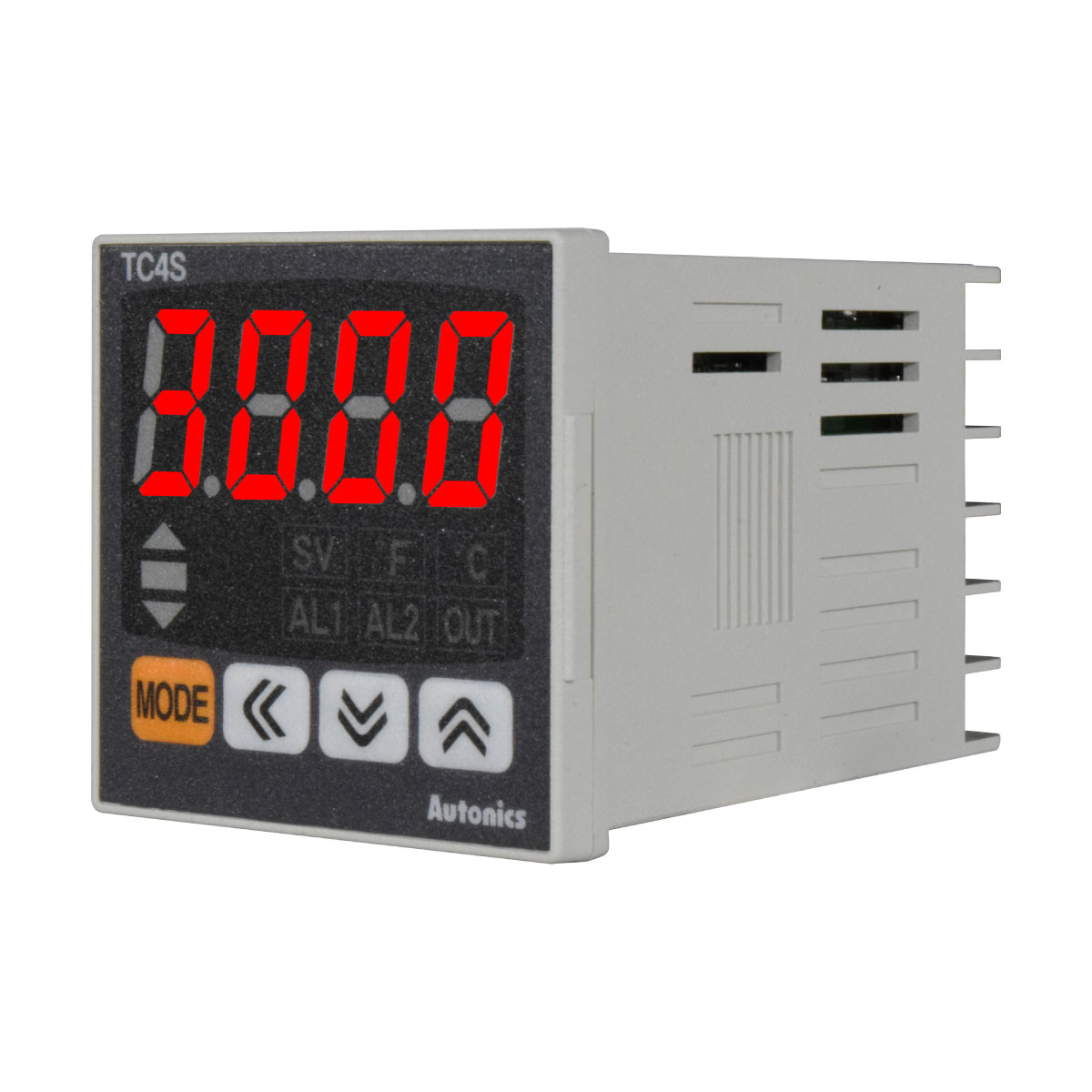

TC4S-14R

TC4S-14R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 48 x W 48mm

 COP255,612
Sin Stock

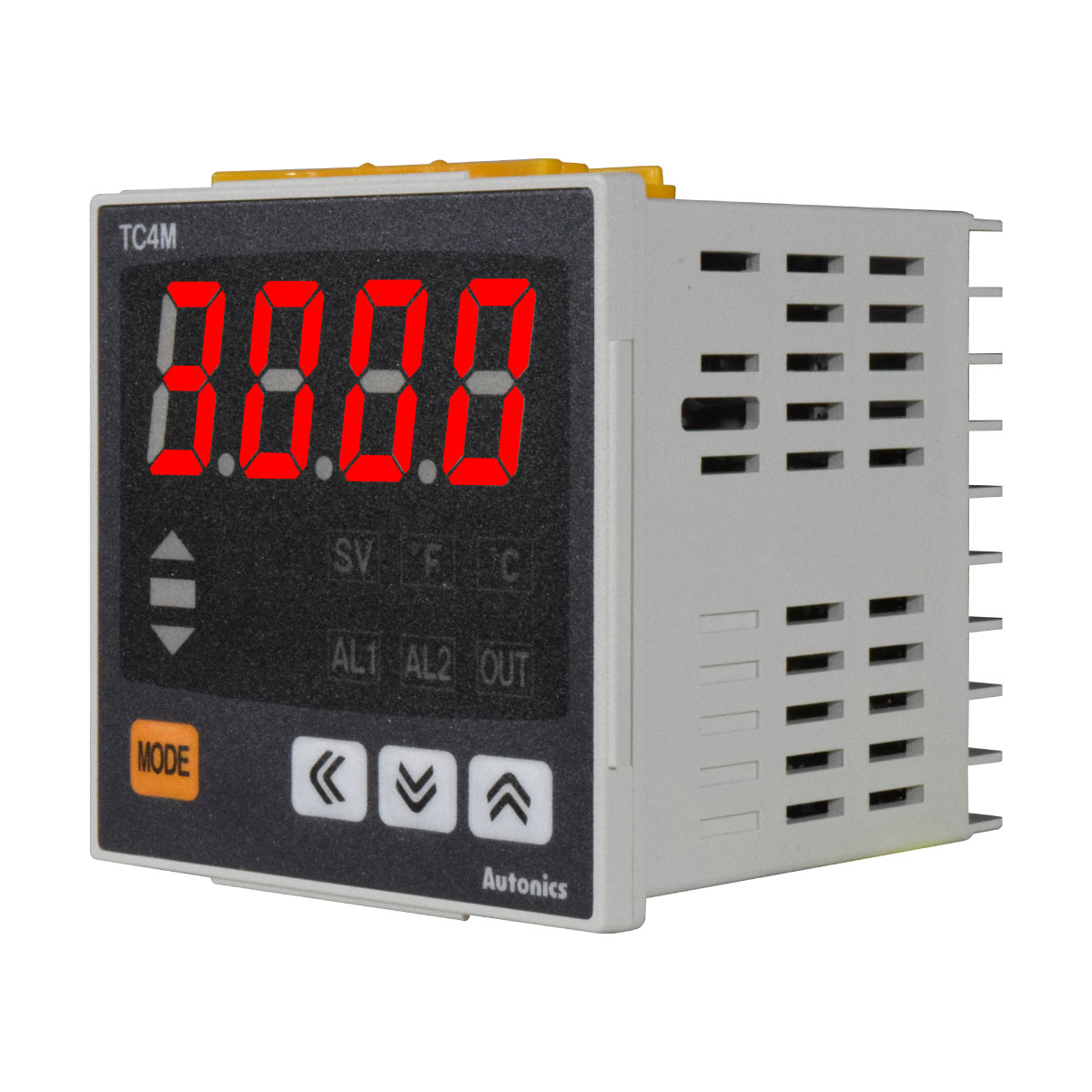

TC4M-14R

TC4M-14R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 72 x W 72mm

 COP271,320
Sin Stock

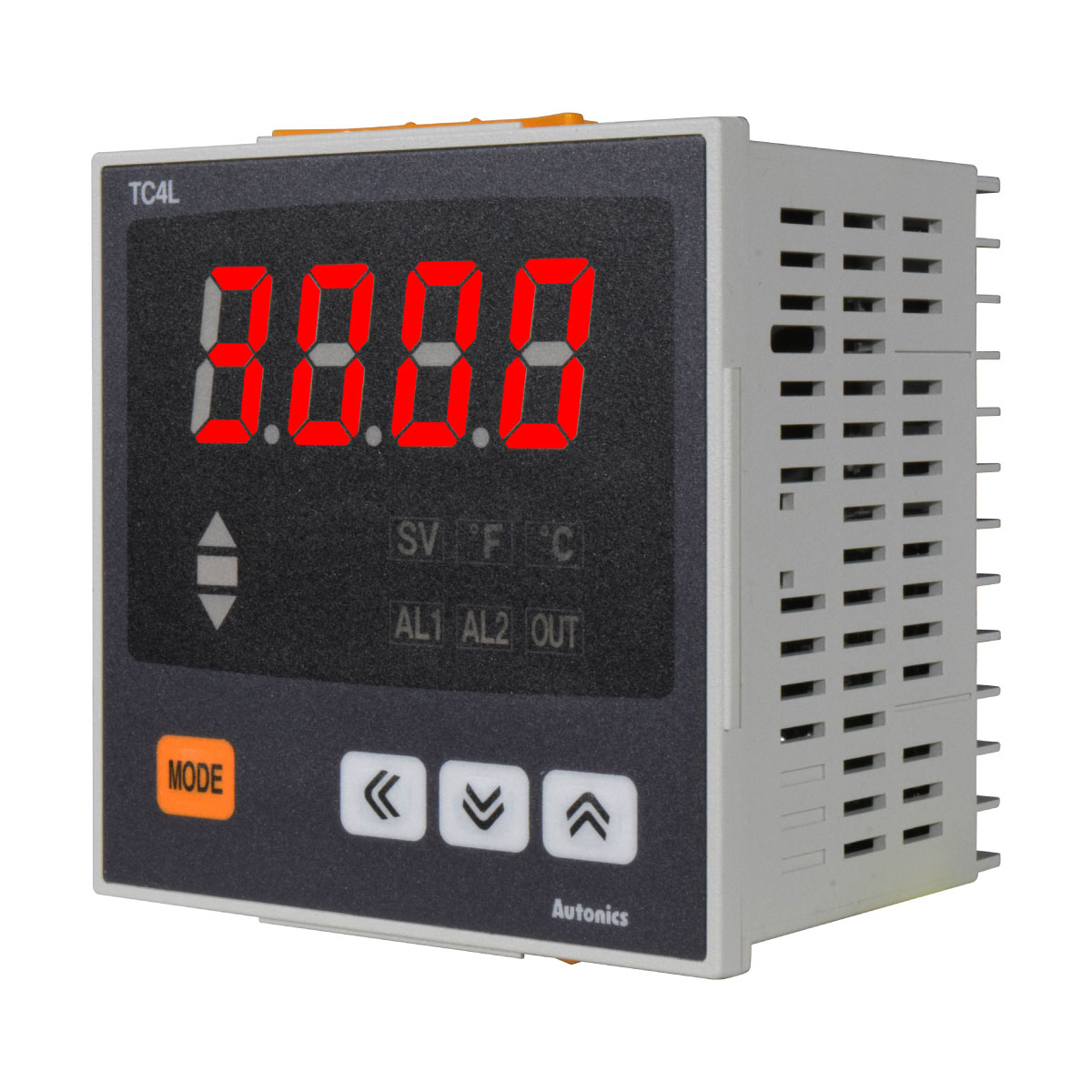

TC4L-14R

TC4L-14R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 96 x W 96mm

 COP271,320
Sin Stock

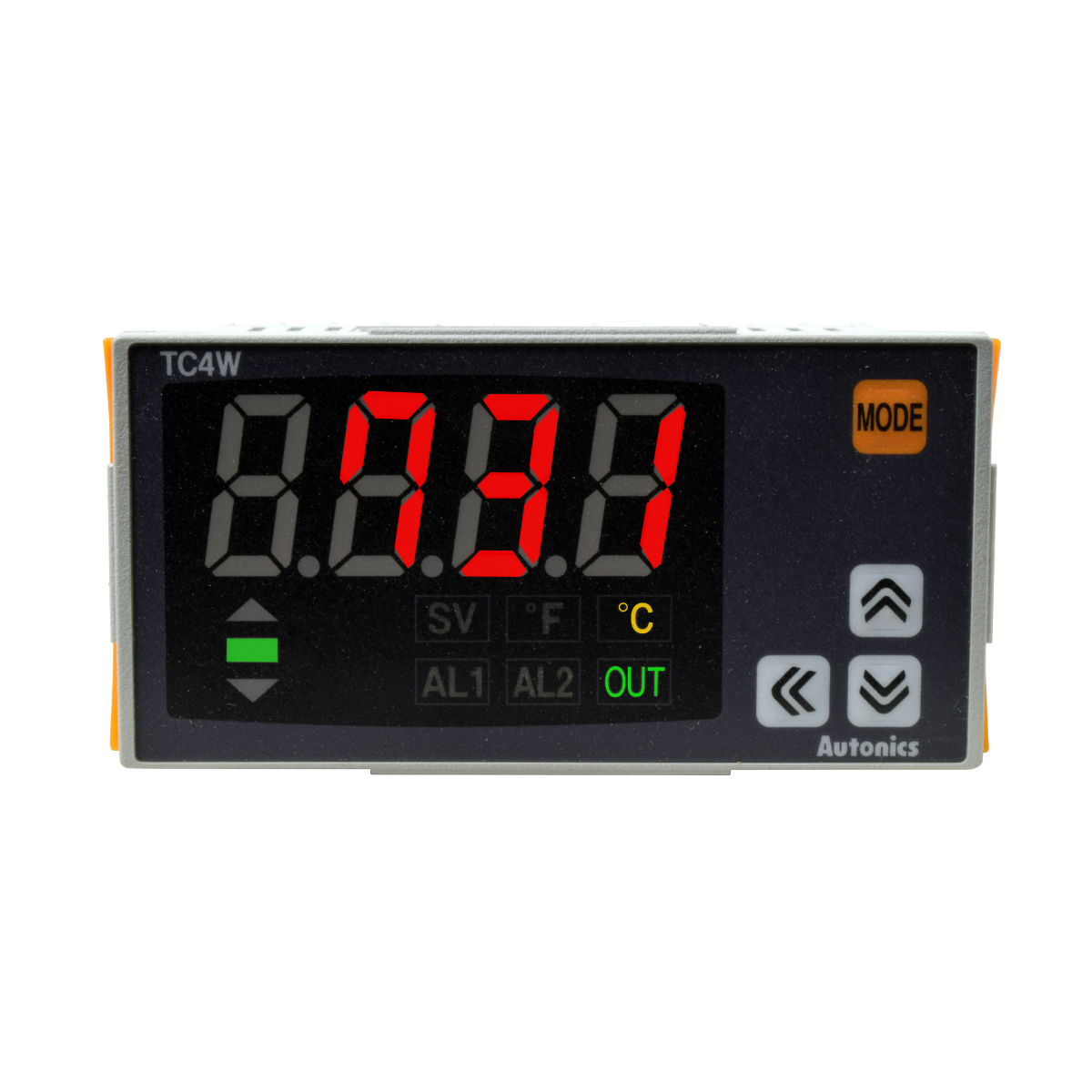

TC4W-14R

TC4W-14R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 48 x W 96mm

 COP314,160
Sin Stock

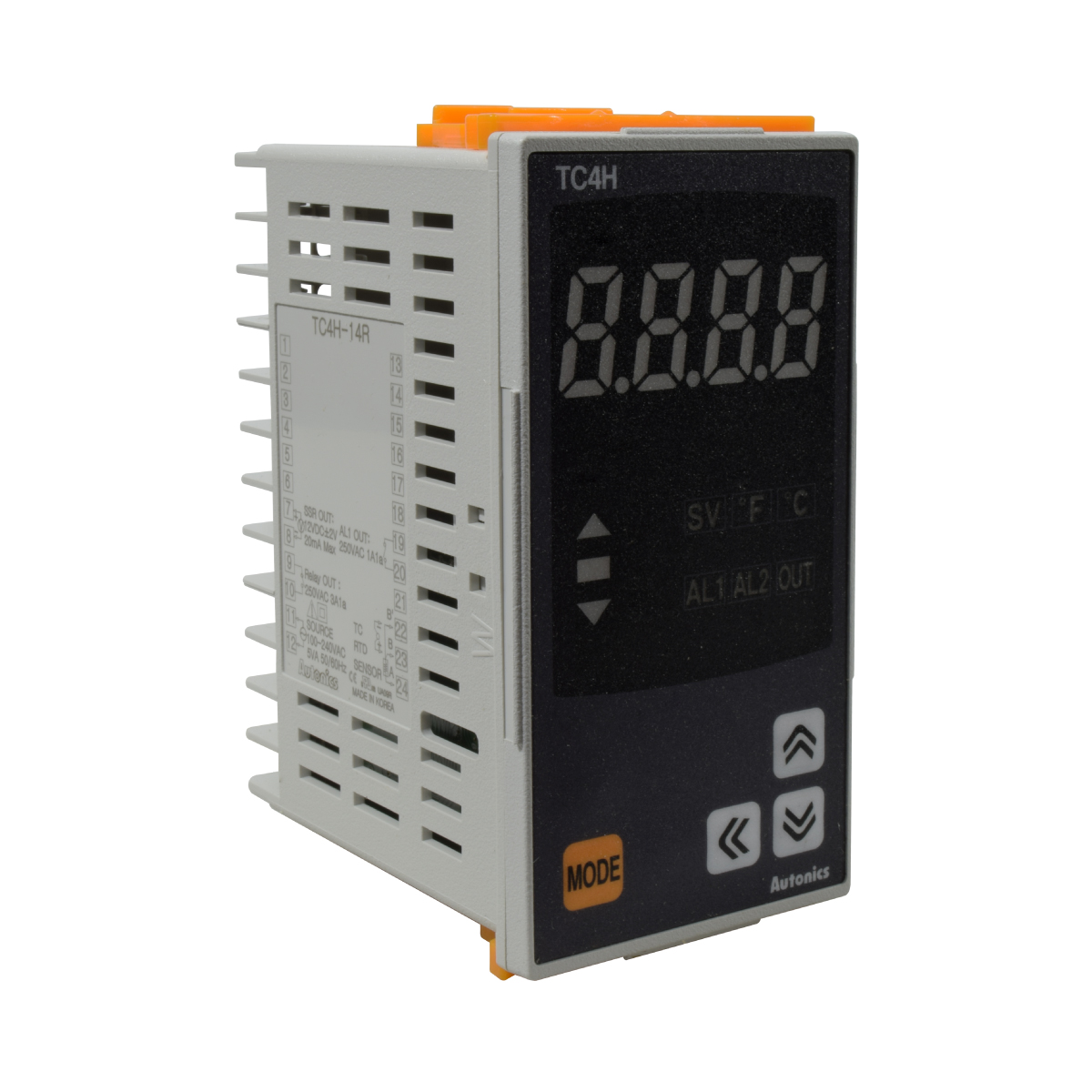

TC4H-14R

TC4H-14R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 96 x W 48mm

 COP271,320
Sin Stock

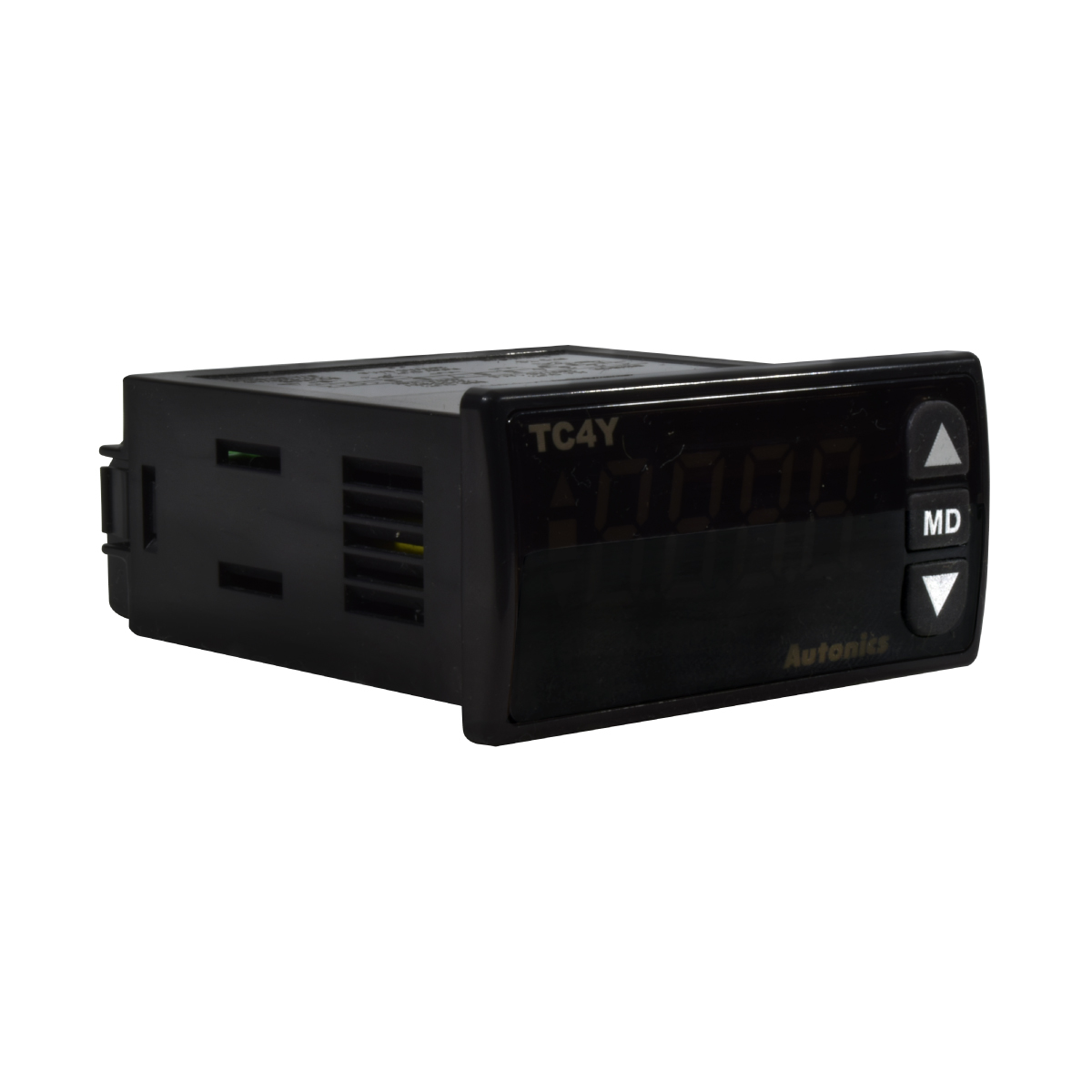

TC4Y-14R

TC4Y-14R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 36 x W 72mm

 COP294,168
Sin Stock
TC4Y-N4R

TC4Y-N4R
Control type: ON-OFF, PID
Power supply: 100 - 240VAC
Temperature inputs: 1 thermocouple or 1 RTD
Thermocouple type: Type K, J, L
RTD type: Pt100, Cu50
Control outputs: 1 SPST relay or 1 SSR or 1 SSRP
Auxiliar digital outputs: 1 SPST relay
Dimensions: H 36 x W 72mm

 COP235,620
Sin Stock
