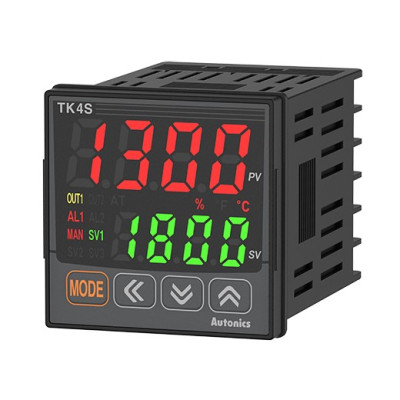

Ref: TK4S-14CN

Name: Controles de procesos digitales serie TK4
Brand: Autonics
SKU: TK4S-14CN
Price: 434112 COP
Availability: InStock

TK4N-14CN

In stock

Specifications

Video

Downloads

Power supply	100 - 240VAC
Control mode	ON-OFF, P, PI, PD, PID
RTD input type	JPt100, DPt100, DPt50, Cu100, Cu50, Ni120
TC input type	J, K, E, T, L, N, U, R, S, B, C, G, PLII
Analog current inputs	0 - 20mA / 4 - 20mA
Analog voltage inputs	0 - 100mVDC / 1 - 5VDC / 0 - 5VDC / 0 - 10VDC
Digital input	NO Contact (Free voltage)
Sampling period	50ms
Contact capacity	3A a 250VAC / 30VDC
SSR output	12VDC to 20mA
Analog outputs	4 - 20mA (depend of reference)
Protection	IP65 (frontal panel)
Communication	Modbus RTU RS-485 (Model depend)
Size	TK4N H 24 x W 48 x D 94.8 mm TK4S H 48 x W 48 x D 64.5 mm TK4M H 72 x W 72 x D 64,5 mm TK4H H 96 x W 48 x D 64,5 mm TK4W H 48 x W 96 x D 64,5 mm TK4L H 96 x W 96 x D 64.5 mm
Features	Heating / cooling control Control function by phase or cyclic for SSR (Models depend)
Programming Software	DAQ Master (free to download)

Autonics Software

Autonics - DAQMaster 3.5.9 32bits - Software

Software integral de gestión de dispositivos

Autonics - DAQMaster 3.5.9 64bits - Software

Software integral de gestión de dispositivos

Autonics - DAQMaster 4.0.1.5883 64 bits - Software

Autonics - Manuales y Fichas Técnicas

Autonics - TK - Catalogue

(Size: 3 MB)

Autonics - TK - Esp - Manual

(Size: 1.5 MB)

Autonics - TK - Manual

(Size: 1.5 MB)

Referencia	Resumen producto	Precio	Cantidad
TK4S-14CN	TK4S-14CN Control type: ON-OFF, P, PI, PD, PID Power supply: 100 - 240VAC Thermocouple types: J, K, E, T, L, N, U, R, S, B, C, G, PLII RTD types: JPt100, DPt100, DPt50, Cu100, Cu50, NIKEL 120 Analog inputs: 0 - 100mV / 0 - 5V / 0 - 10V / 4 - 20mA Control outputs: 1 current or 1 SSR Auxiliar digital outputs: 1 SPST relay Dimensions: H 48 x W 48mm	COP434,112
