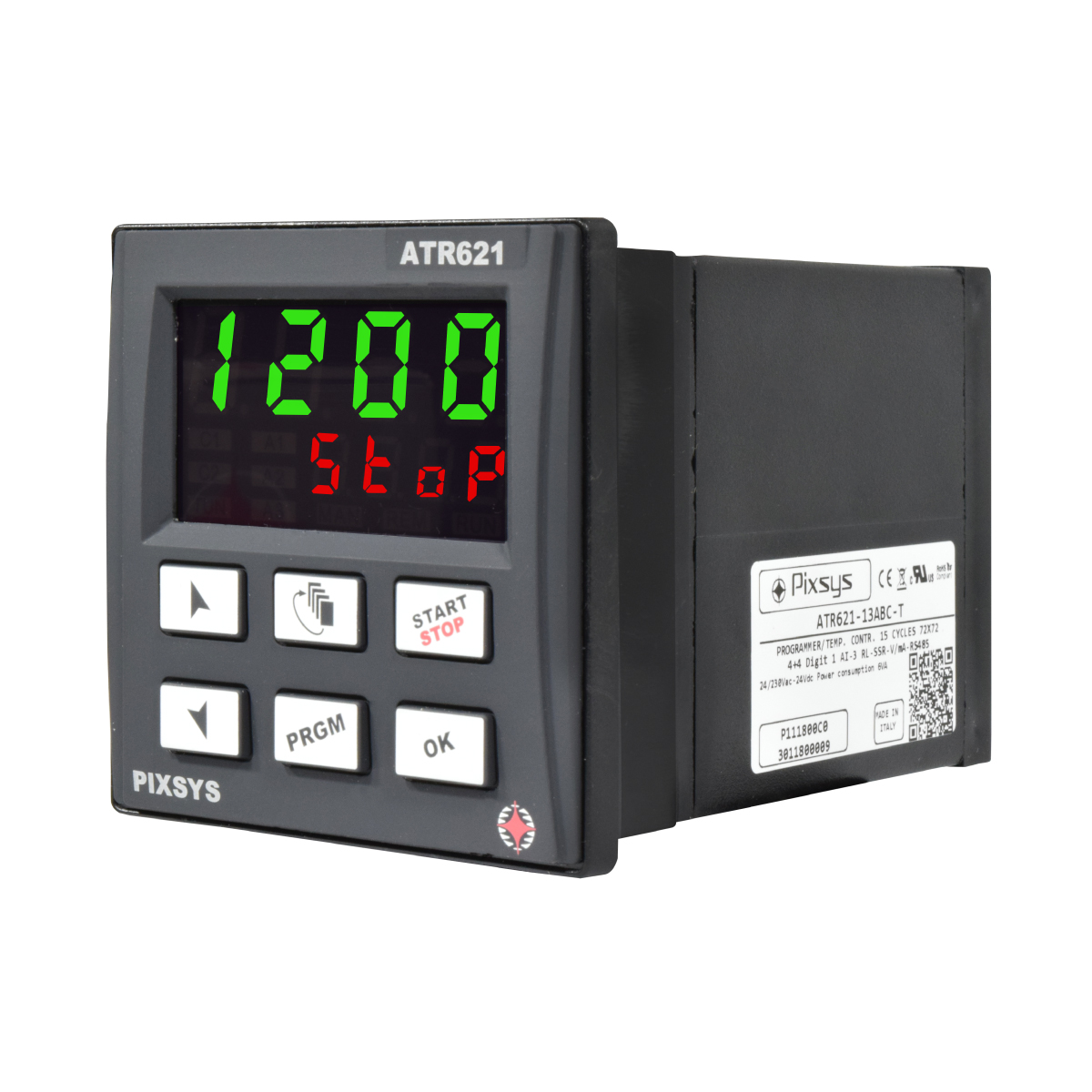

Ref: ATR621 series digital process with ramp controllers

Name: ATR621 series digital process with ramp controllers
Brand: Pixsys
SKU: Controles de procesos digitales con rampa serie ATR621
Price: 3227851 COP
Availability: OutOfStock

ATR621 series digital process with ramp controllers

Certifications:

In stock

Specifications

Video

Downloads

Especificaciones

Power supply	24 - 230VAC / DC
Control mode	ON-OFF, P, PI, PD, PID
RTD input type	Pt100
TC input type	K, J, S, R, E, N
Analog current inputs	0 - 20mA / 4 - 20mA
Analog voltage inputs	0 - 10 VDC
Sampling period	4,1 ms
Contact capacity	8A a 250VAC
SSR output	30mA a 12VDC
Analog outputs	Configurable to 0- 10V / 0 - 20mA / 4 - 20mA
Protection	IP65 (frontal panel)
Communication	Modbus RTU RS-485
Size	H 72 x W 72 x D 89 mm
Features	15 ramp cycles, each of up to 45 steps / segments Simultaneous control for heating / cooling Automatic cold junction compensation (0 -50?C)
Programming Software	LABSOFTVIEW (free to download)

Video

Downloads

Pixsys Software

Labsoftview - Manual

(Size: 280.8 KB)

LabSoftView 3.4.8

(Size: 56 MB)

Software para programación de controladores de Pixsys

Pixsys - Manuales y Fichas Técnicas

Pixsys - ATR621 - Manual

(Size: 4.9 MB)

	sku	Summary	Unit Price	Qty
	67280	ATR621-13ABC-T Control type: ON-OFF, P, PI, PD, PID Power supply: 24 - 230VAC/DC Thermocouple types: K, S, R, J, E, N RTD types: Pt100 Analog inputs: 0 - 10VDC / 0 - 20mA / 4 - 20mA Analog outputs: 1 retransmission (V/mA) Control outputs: 1 SPDT relay or 1 SPST relay or 1 SSR or 1 current or 1 voltage Auxiliar digital outputs: 2 SPDT relay + 1 SPST relay + 1 SSR Communication type: Modbus RTU RS485 Dimensions: H 72 x W 72mm	COP3,227,851	Sin Stock
