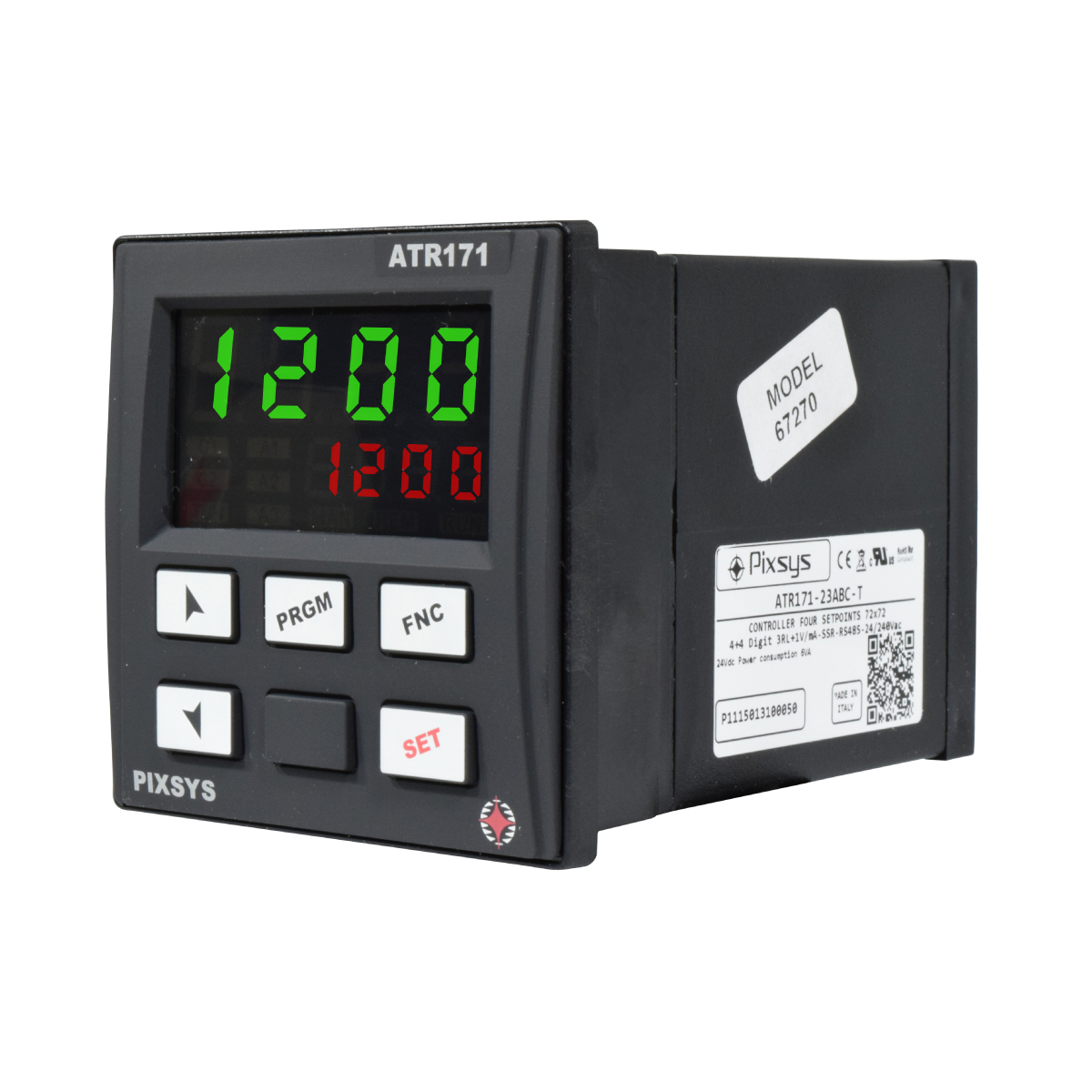

ATR171 series digital process controllers with double outputs

ATR171 series digital process controllers with double outputs

Certifications:

In stock


















Power supply24 - 230VAC / DC
Control modeON-OFF, P, PI, PD, PID
RTD input typePt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K
TC input typeK, J, S, R
Analog current inputs0 - 20mA / 4 - 20mA
Analog voltage inputs0 - 40mV / 0 - 10 VDC
Analog voltage inputs6KOhm / 150KOhm
Digital inputSetpoint funcion, Start/Stop, Auto/Man control
Sampling period4,1ms
Contact capacity8A a 250VAC
SSR output25mA a 24VDC
Analog outputsConfigure to 0- 10V / 0 - 20mA / 4 - 20mA
ProtectionIP65 (frontal panel)
CommunicationModbus RTU RS-485
SizeH 72 x W 72 x D 89 mm
FeaturesSimultaneous control for heating / cooling
Automatic cold junction compensation (0-50?C)
Soft start (ascent gradient in units / hour).
Pre-programmed 3-step operation cycle (soft start up to SV1, maximum power to reach SV2, retention and gradient down to room temperature).
Programming SoftwareLABSOFTVIEW (free to download)

Downloads

Pixsys Software
pdf
Labsoftview - Manual
(Size: 280.8 KB)
zip
LabSoftView 3.4.8
(Size: 56 MB)
Software para programación de controladores de Pixsys
Pixsys - Manuales y Fichas Técnicas
pdf
Pixsys - ATR171 - Manual
(Size: 6.1 MB)



sku Summary Unit Price Qty
67270

ATR171-23ABC-T
Control type: ON-OFF, P, PI, PD, PID
Power supply: 24 - 230VAC/DC
Total analog inputs: 2
Thermocouple types: K, S, R, J
RTD types: Pt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K
Potentiometer value: 6kOhm | 150kOhm
Analog inputs: 0 - 40mV / 0 - 10V / 0 - 20mA / 4 - 20mA
Analog outputs: 1 retransmission (V/mA)
Control outputs: 1 SPDT relay or 1 SSR or 1 current or 1 voltage
Auxiliar digital outputs: 2 SPDT relay + 1 SPST relay + 1 SSR
Communication type: Modbus RTU RS485
Dimensions: H 72 x W 72mm

 COP1,266,636
Sin Stock
