Ref: 67275

Name: ATR401-22ABC
Brand: Pixsys
SKU: 67275
Price: 1242503 COP
Availability: OutOfStock

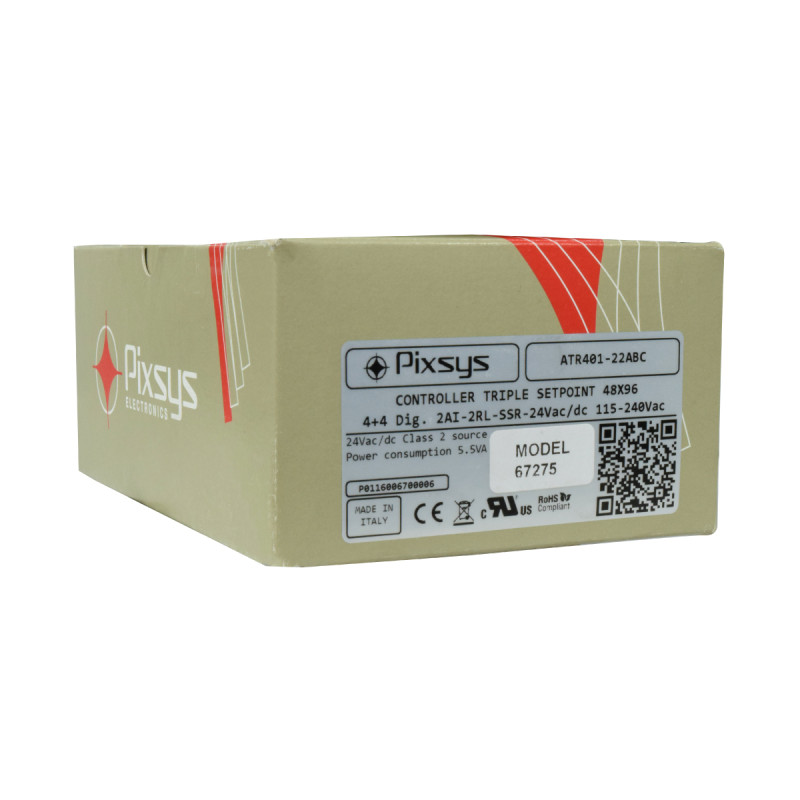

ATR401-22ABC

Out of stock

Specifications

Downloads

Power supply	100 - 240VAC
Control mode	ON-OFF, P, PID
RTD input type	Pt100, KPt100
TC input type	K, J, E, T, R, S, B, L, N, U, W, PL II
Analog current inputs	4 - 20mA
Analog voltage inputs	-10 a 20mV / 0 - 100mV / 1 - 5 VDC
Digital input	2 digital inputs, Auto/Man control, display selection, Start/ Stop functions
Sampling period	250 ms
Contact capacity	3A a 250VAC
SSR output	30mA a 12VDC
Size	H 72 x W 72 x D 100 mm
Features	10-step programmable ramp HBA function: heater burn-out alarm 3 zones / 3 selectable PID groups

Pixsys Software

Labsoftview - Manual

(Size: 280.8 KB)

LabSoftView 3.4.8

(Size: 56 MB)

Software para programación de controladores de Pixsys

Pixsys - Manuales y Fichas Técnicas

Pixsys - ATR401 - Manual

(Size: 5.3 MB)

Referencia	Resumen producto	Precio	Cantidad
67275	ATR401-22ABC Control type: ON-OFF, P, PI, PD, PID Power supply: 24 - 230VAC/DC Total analog inputs:2 Thermocouple types: K, S, R, J RTD types: Pt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K Potentiometer value: 6kOhm \| 150kOhm Analog inputs: 0 - 40mV / 0 - 10V / 0 - 20mA / 4 - 20mA Control outputs: 1 SPDT relay or 1 SSR Auxiliar digital outputs: 2 SPDT relay + 1 SSR Dimensions: H 96 x W 48mm	COP1,242,503
