Ref: 67261

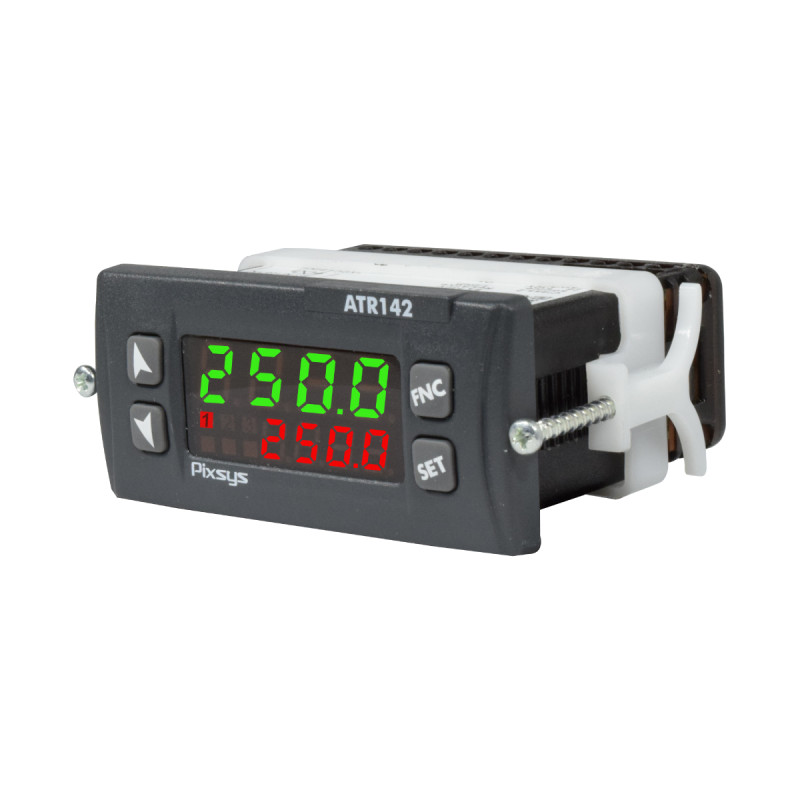

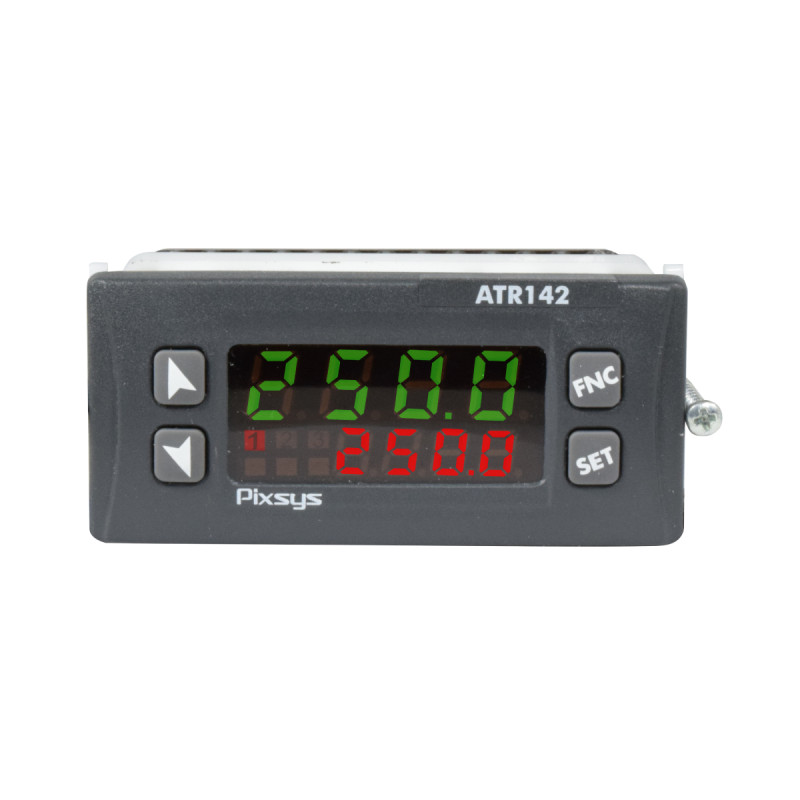

Name: ATR142-ABC-T
Brand: Pixsys
SKU: 67261
Price: 720712 COP
Availability: OutOfStock

ATR142-ABC-T

Out of stock

Specifications

Downloads

Power supply	24 - 230VAC / DC
Control mode	ON-OFF, P, PI, PD, PID
RTD input type	Pt100, Pt500, Pt1000, Ni100, PtC1K, NTC10K
TC input type	K, J, S, R
Analog current inputs	0 - 20mA / 4 - 20mA
Analog voltage inputs	0 - 40mV / 0 - 10 VDC
Sampling period	4,1ms
Contact capacity	8A at 250 VAC
Digital input	PNP, setpoint function, Stop/Start, regulation Auto/Man.
SSR output	30mA at 12VDC
Analog outputs	Configurable to 0- 10V / 0 - 20mA / 4 - 20mA
Protection	IP65 (frontal panel)
Communication	Modbus RTU RS-485 (references with comunication)
Size	H 32 x W 74 x D 53 mm
Features	Simultaneous control for heating / cooling Automatic cold junction compensation (0 -50?C) Soft start (ascent gradient in units / hour) HBA function: Heater Break Alarm
Programming Software	LABSOFTVIEW (free to download)

Pixsys Software

Labsoftview - Manual

(Size: 280.8 KB)

LabSoftView 3.4.8

(Size: 56 MB)

Software para programación de controladores de Pixsys

Pixsys - Manuales y Fichas Técnicas

Pixsys - ATR142 - Manual

(Size: 2.6 MB)

Referencia	Resumen producto	Precio	Cantidad
67261	ATR142-ABC-T Control type: ON-OFF, P, PI, PD, PID Power supply: 24 - 230VAC/DC Thermocouple types: K, S, R, J RTD types: Pt100, Pt500, Pt1000, Ni100, PTC1K, NTC10K Potentiometer value: 6kOhm \| 150kOhm Analog inputs: 0 - 40mV / 0 - 10V / 0 - 20mA / 4 - 20mA Control outputs: 1 SPDT relay or 1 SSR Auxiliar digital outputs: 1 SPDT relay + 1 SSR Communication type: Modbus RTU RS485 Dimensions: H 32 x W 74mm	COP720,712
