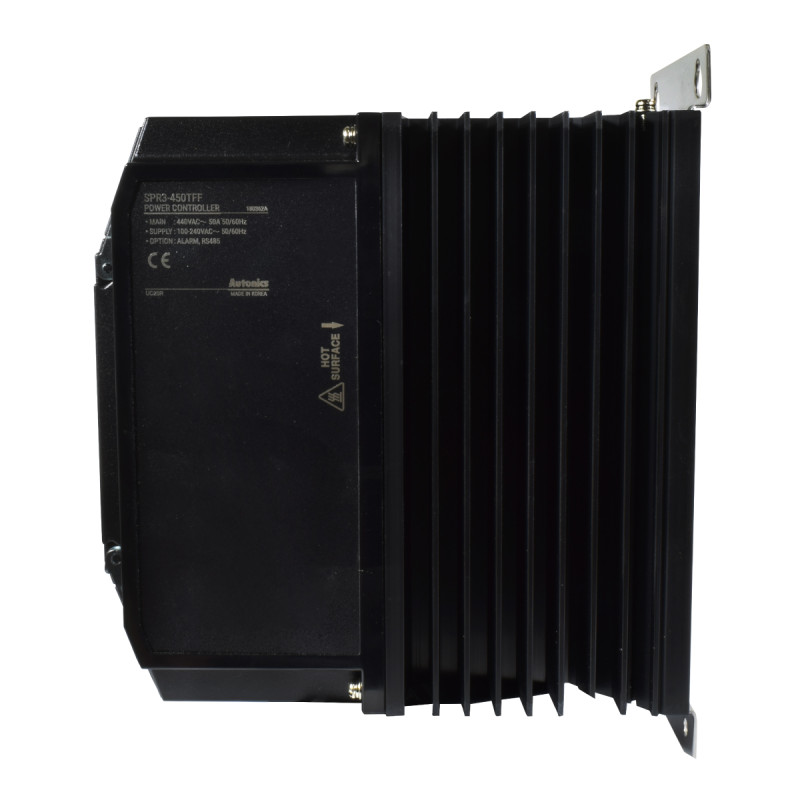

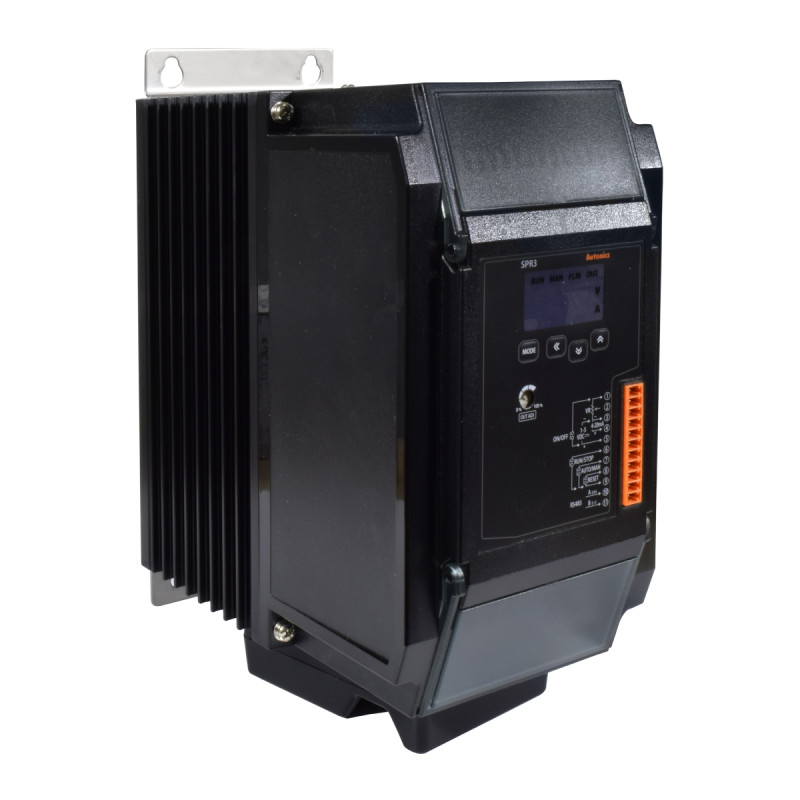

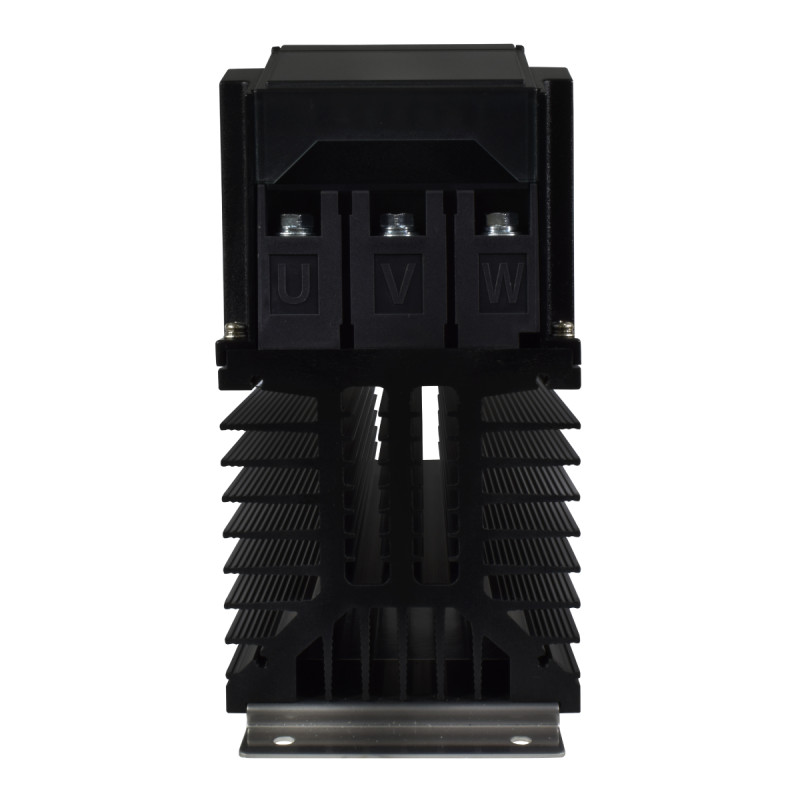

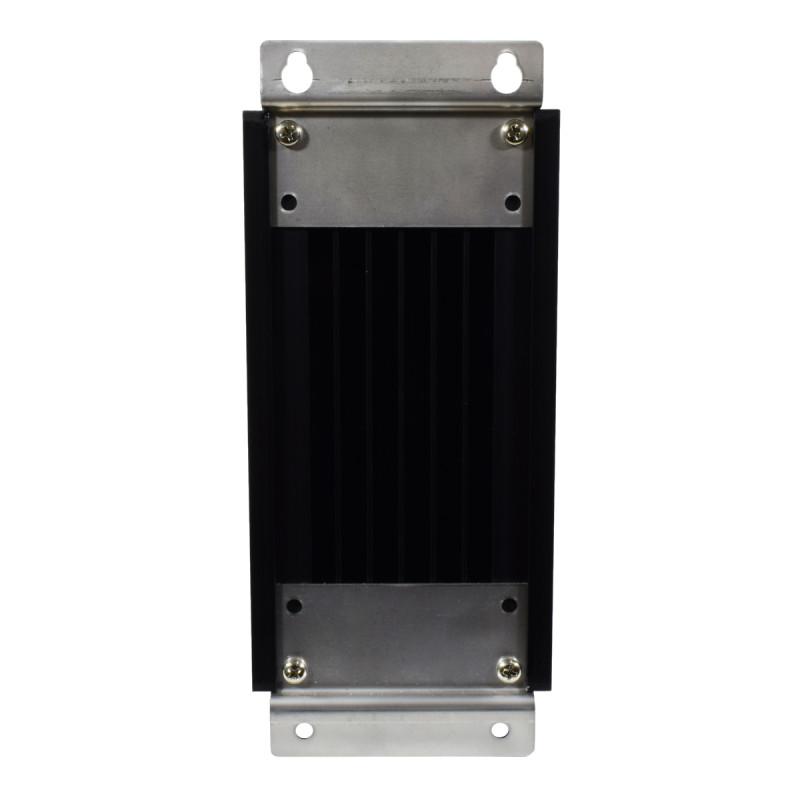

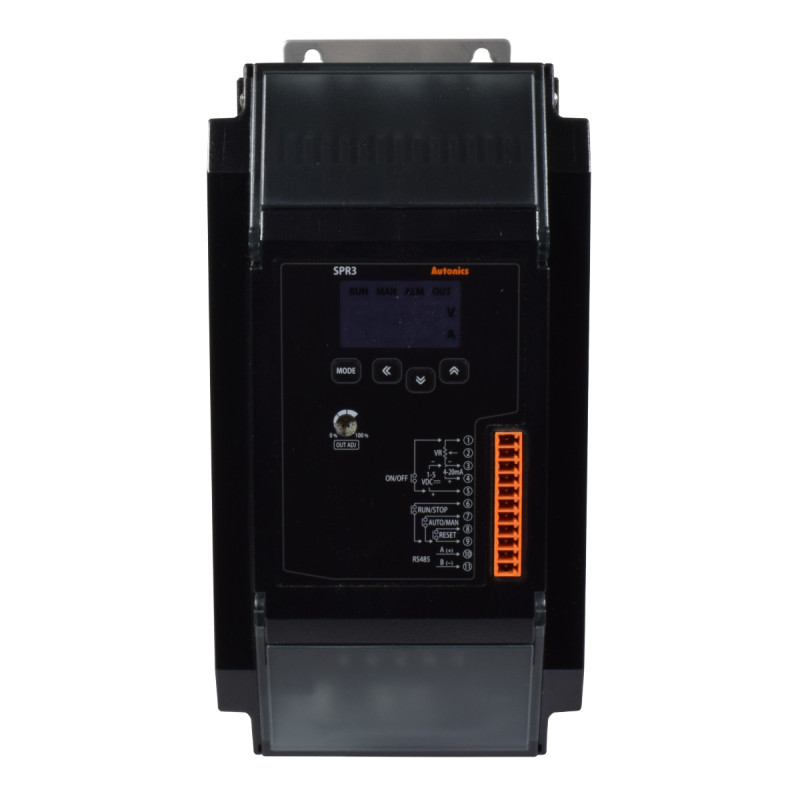

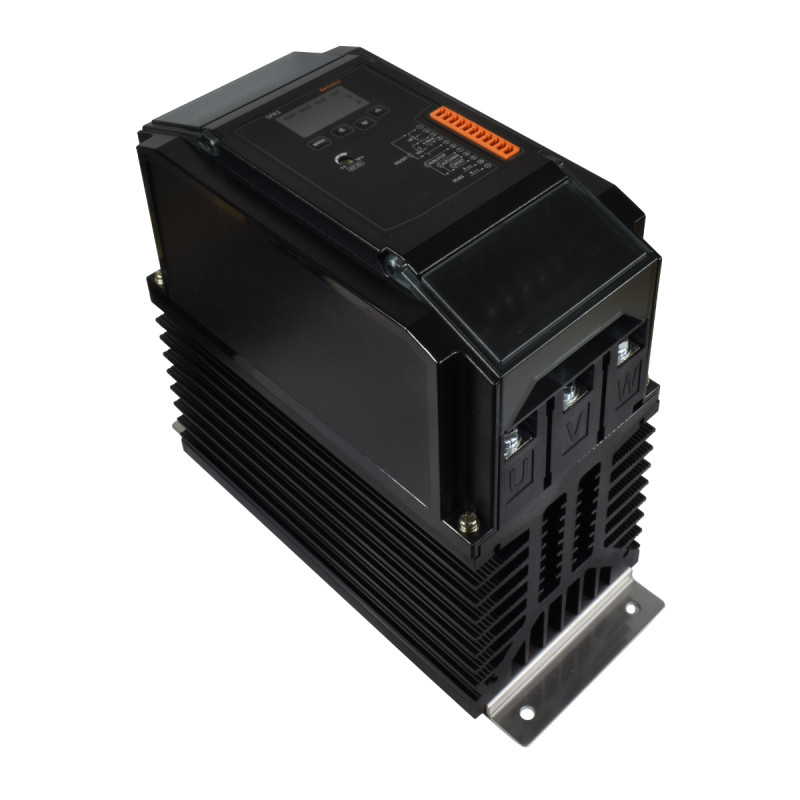

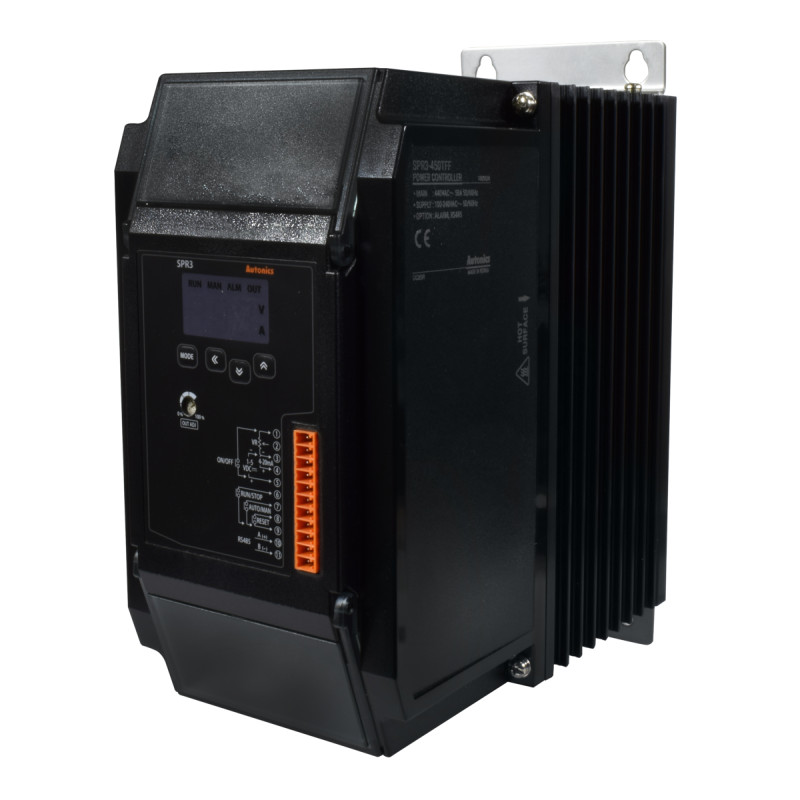

Ref: SPR3-450TFF

Name: SPR3-450TFF
Brand: Autonics
SKU: SPR3-450TFF
Price: 4098360 COP
Availability: OutOfStock

SPR3-450TFF

Out of stock

Specifications

Downloads

Power supply	100 - 240VAC
Control mode	ON-OFF, Cyclic (Fixed or Variable Zero Crossing), Phase Angle
Analog current inputs	4 - 20mA
Analog voltage inputs	1 - 5VDC
Analog control inputs	10KOhm potentiometer (not included)
Digital outputs	Dry contact, external 12VDC signal
Output phases	Three-phase (380VAC)
Output current	50A
Communication	Modbus RTU RS-485
Size	H 124.8 x W 94.6 x D 92 mm
Features	LED 3 digits + 5 LEDs (status)
Programming Software	DAQ Master included

Autonics - Manuales y Fichas Técnicas

Autonics_SPR3-Manual

(Size: 1.6 MB)

Autonics_SPR3-Manual

Referencia	Resumen producto	Precio	Cantidad
SPR3-450TFF	SPR3-450TFF Series: SPR3 Power supply: 100 - 240VAC Control type: ON-OFF, zero cross, phase angle Analog control input: 1 analog (1 - 5VDC / 4 - 20mA) or 1 Potentiometer (10KOhm extern) Digital inputs: 1 digital pulse (0 - 12VDC) / SPST relay Output phases: 380VAC (3 phases) Auxiliar digital outputs: N/A Communication type: Modbus RTU RS485	COP4,098,360
