Ref: 1010035

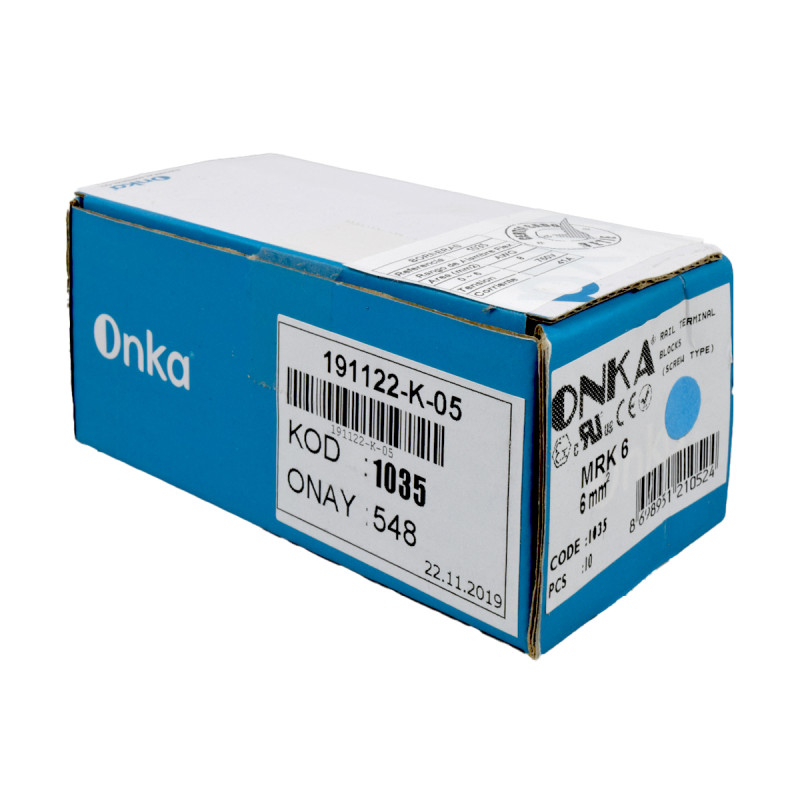

Name: Borneras atornillables serie MRK
Brand: Onka
SKU: 1010035
Price: 3213 COP
Availability: OutOfStock

ONKA1035

Out of stock

Specifications

Downloads

Type of terminal board	Standard
Body material	PA6.6V2 (Polyamide 6BS)
Cable Gauge Range	From 2,5mm² to 50mm² (12AWG to 1/0AWG)
Isolation voltage	600VAC / 750VAC
Rated current	From 24A to 150A (Depend of reference)
Color of terminal blocks	Gray - Blue - Red - Brown (depend of reference)
Screw type	Standard screw or brístol screw
Working temperature	-40°C to 140°C
Normativity	According with EN-60947-7-1 and UL1059

Onka - Manuales y Fichas Técnicas

Onka - Borneras serie MRK - Datasheet

(Size: 5.6 MB)

Referencia	Resumen producto	Precio	Cantidad
1010035	1035 Series: MRK Type: Standard terminal block Size: 6mm² Load current: 41A Indicator color: Blue Gauge ranges: 6mm² (8AWG) Number of poles: 1	COP3,213
